Lubrication Points

NOTE: Power steering pump reservoir may have a combination cap and dipstick, if so, please note the arrows that indicate correct fluid level. One side of the dipstick shows FULL HOT and the opposite side shows FULL COLD. Fluid is at correct level if it lies between the arrows, depending on whether fluid is hot or cold. See illustration below. For power steering pump reservoir without combination cap and dipstick: fluid is at correct level if it lies between MIN and MAX lines. Do not overfill power steering fluid.

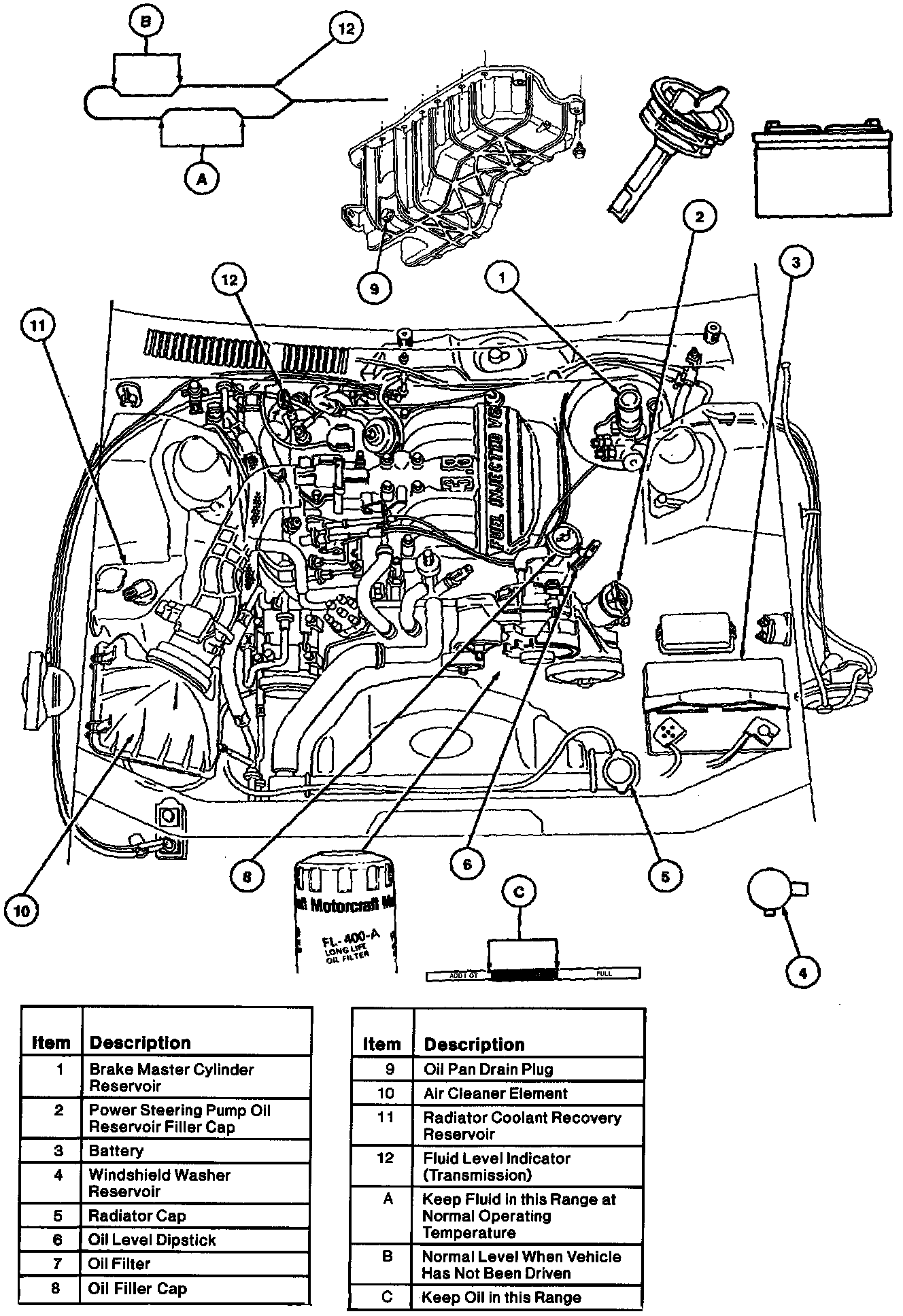

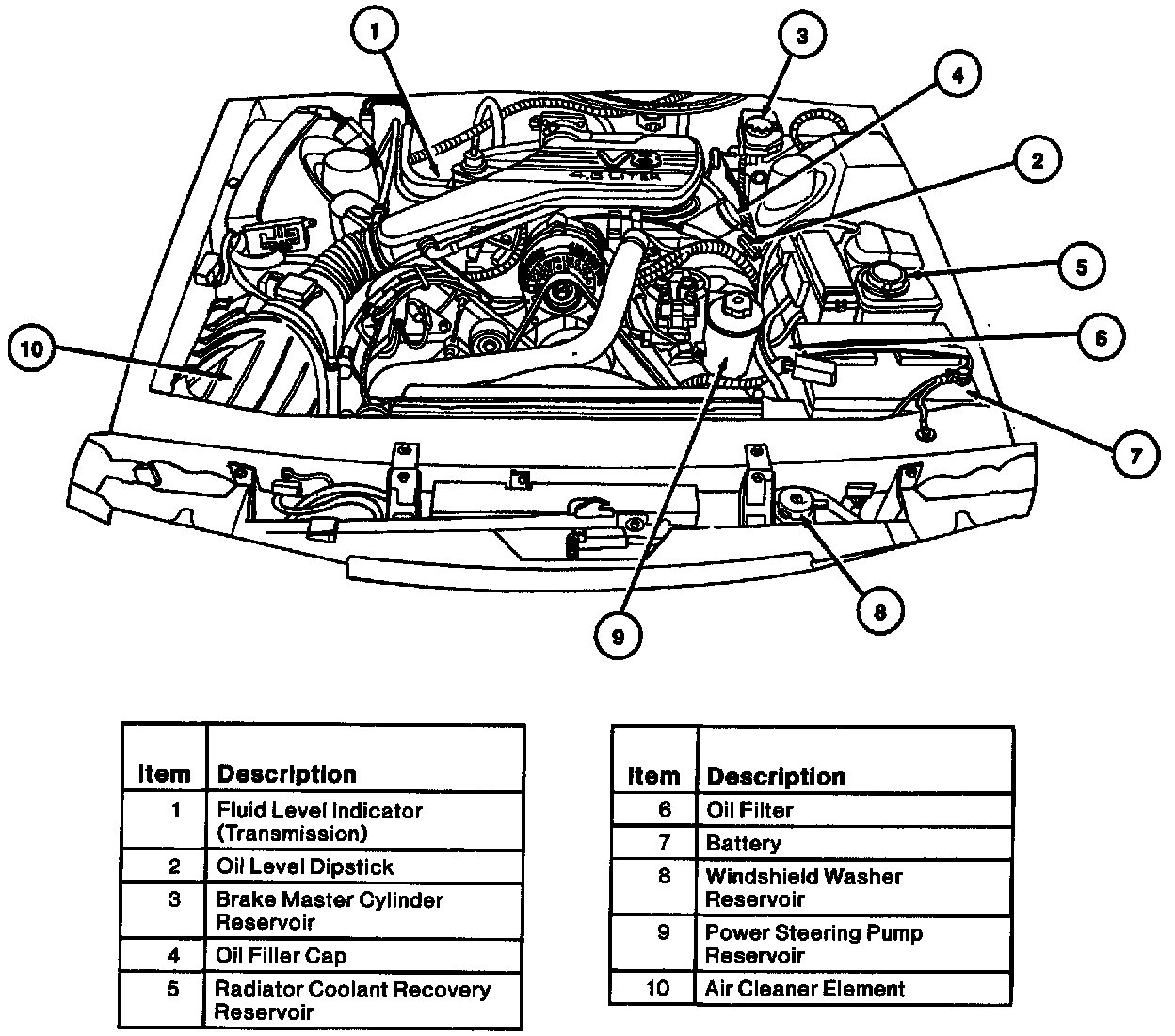

The illustrations show typical chassis and engine service and lubrication points. Vehicles with optional or special equipment may have slightly different or additional lubrication points.
