Audible Warning Device Control Module: Service and Repair

REMOVAL

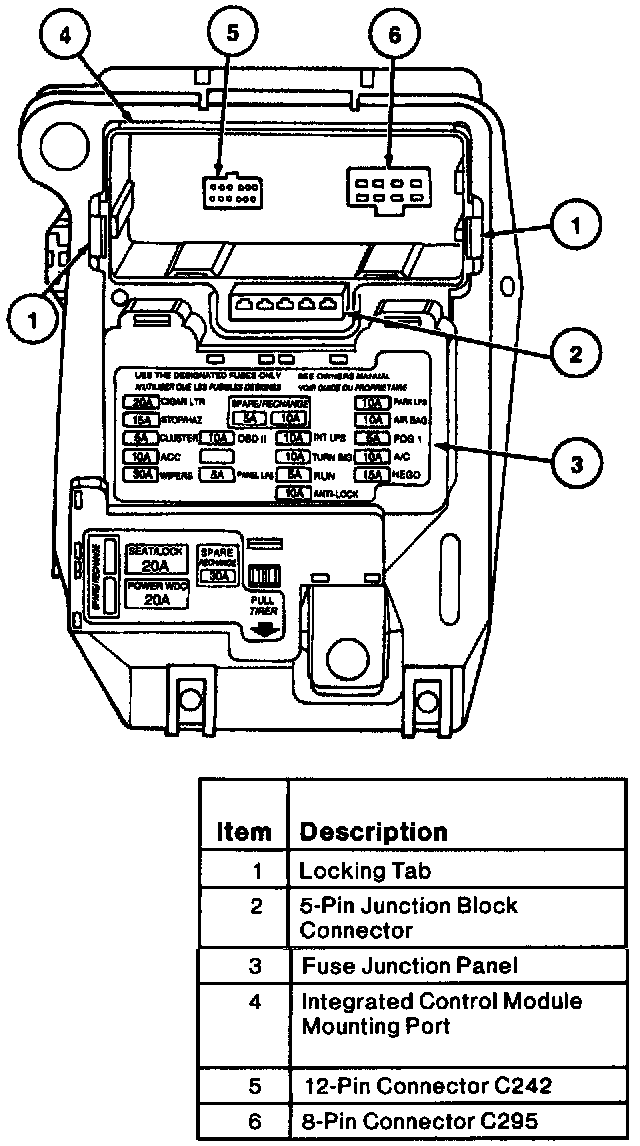

The integrated control module is mounted to the fuse junction panel which is mounted below the instrument panel between the steering column and the driver door.
1. Disconnect battery ground cable.
2. Reach behind fuse junction panel and remove connectors by pressing their lock tabs and pulling them out.
3. Grasp the lock tabs on either side of integrated control module and pull downward.

INSTALLATION
1. Follow removal procedure in reverse order.
