Camshaft Bearing

General
Bearing Inside Diameter: 27.012-26.987 mm (1.063-1.062 inch)

Tightening Specifications

NOTE: Each camshaft bearing cap is tightened individually.

Step 1 ... Tighten camshaft bearing cap to 8-12 Nm (71-106 inch lbs.).
Step 2 ... Loosen 14 camshaft bearing cap retaining bolts approximately two turns or until head of bolt is free.

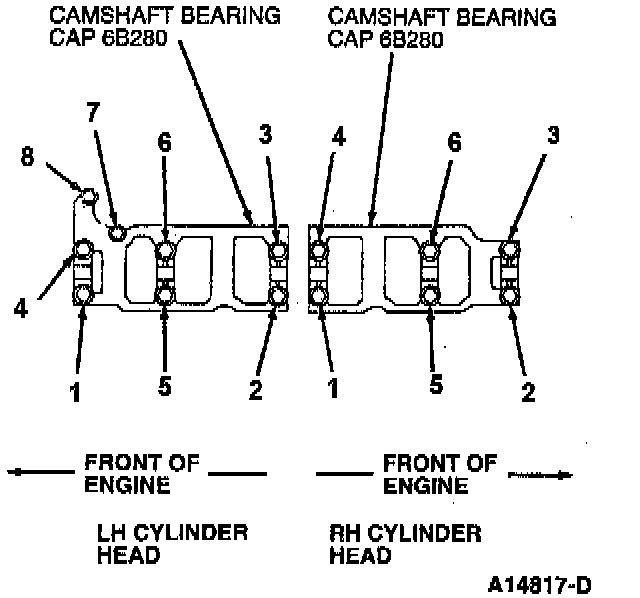

Step 3 ... Retighten all bolts in sequence to 8-12 Nm (71-106 inch lbs.).
Step 4 ... Camshaft should turn freely with a slight drag.
Step 5 ... Check camshaft end play.
