Control Assembly, HVAC

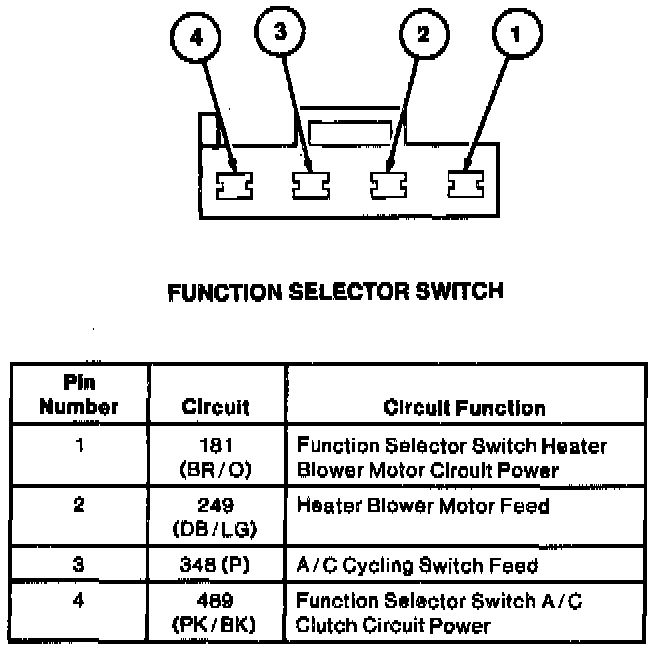

Function Selector Switch:



Temperature Control Switch:

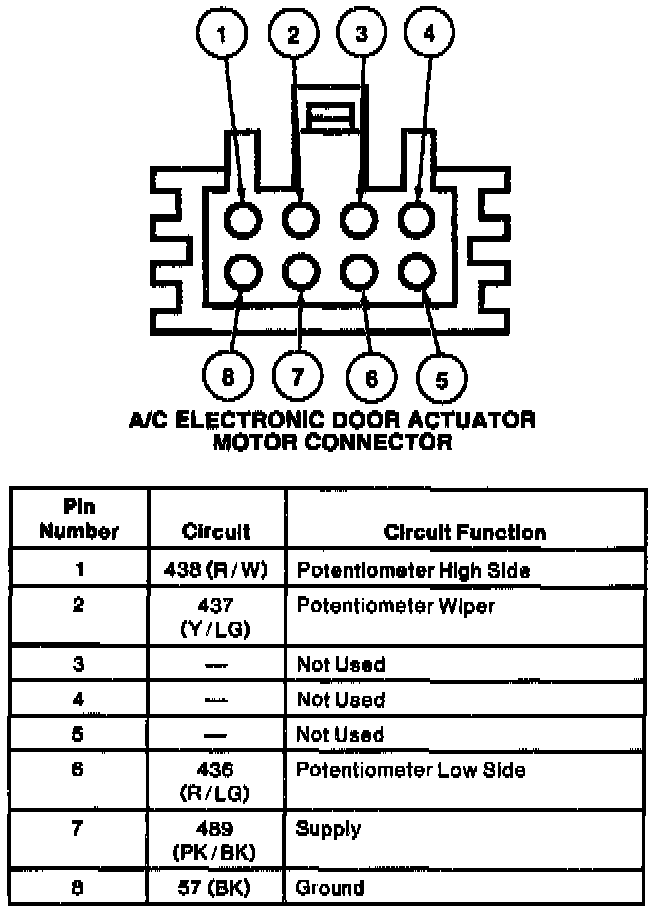

A/C Electronic Door Actuator Motor Connector:
