Vehicle Identification Number






The Vehicle Identification Number (VIN) is stamped on a metal tab that is riveted to the instrument panel close to the windshield glass. The VIN is viewable by looking through the front windshield glass on the driver's side. The VIN is also found on the certification label.

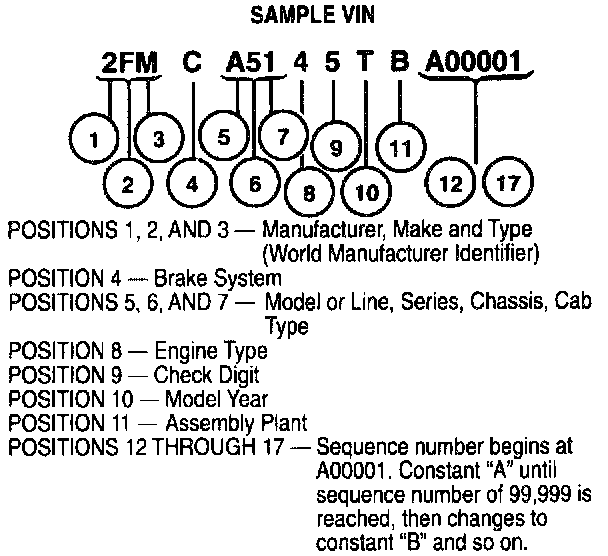

- The first three digits identify the manufacturer and the vehicle make and type.
- The fourth digit determines the brake system.
- Digits five, six and seven identify the model or line, series, chassis, and body type.
- The eighth digit specifies the particular engine found in the vehicle.
- Digit nine is a check digit.
- The tenth digit identifies the model year.
- The eleventh digit determines the assembly plant.
- Digits 12-17 makeup the sequence and warranty number. Digit 12-17 uses the letter A until the production or sequence of 99,999 units (digits 12-17) is reached. Letter A then becomes B for the next production sequence of vehicles.

Refer to the code definition for specific definitions of the numbers and letters of the Vehicle Identification Number (VIN).

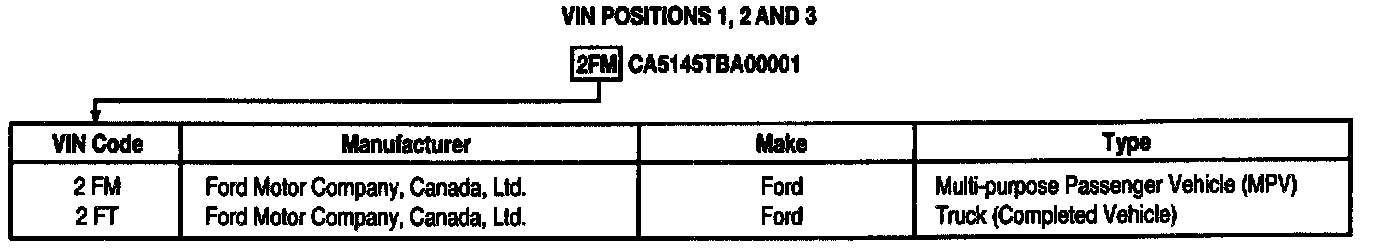

World Manufacturer Identifier







Brake System

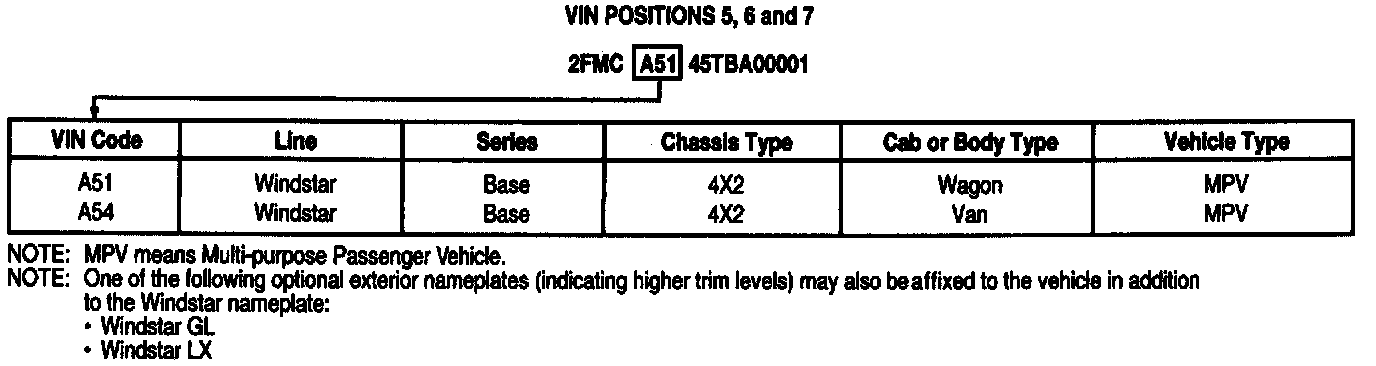

Model or Line, Series, Chassis, Cab Type

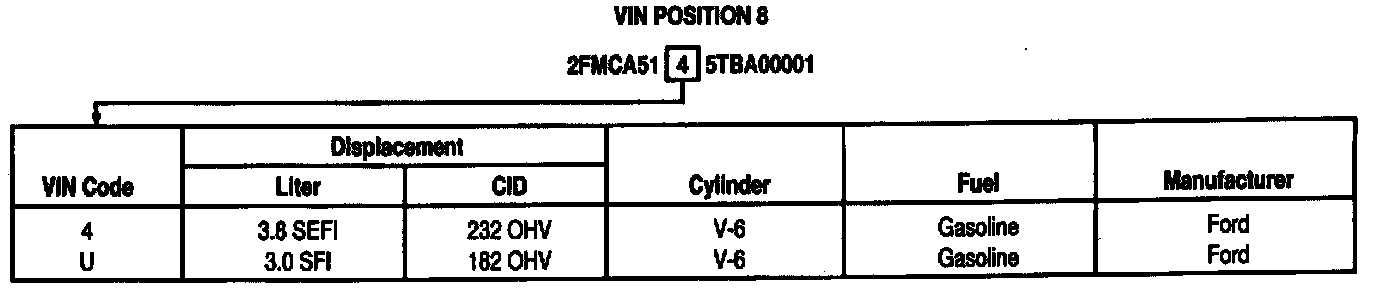

Engine Type







Check Digit

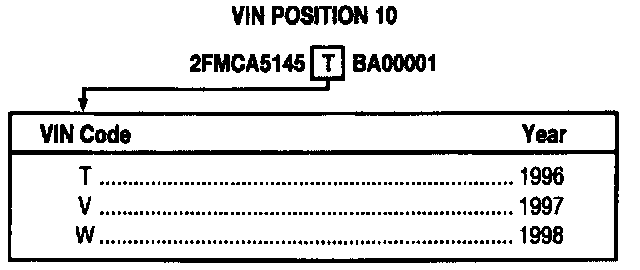

Vehicle Model Year

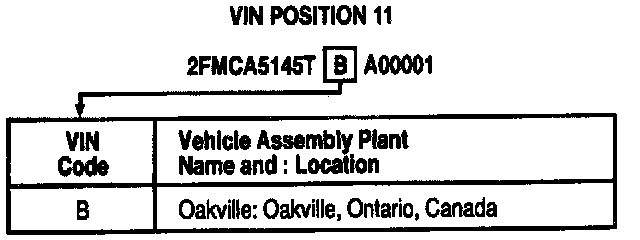

Assembly Plant

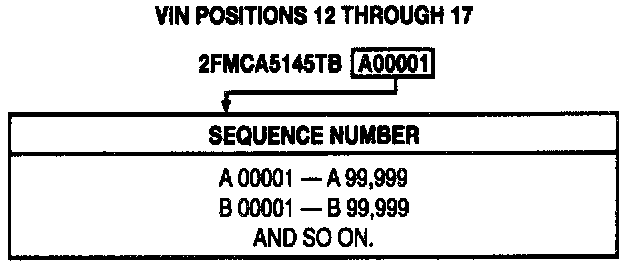

Production Sequence Number
