Rear Climate Control Panel

REMOVAL

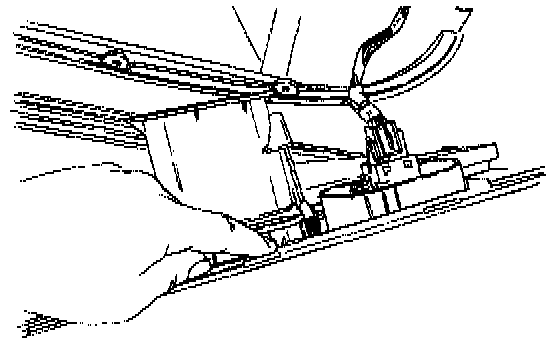

1. Disconnect battery ground cable.
2. Remove receptacle bezel with a small-bladed screwdriver.







3. Remove the wire harness hard shell connector from the heater blower motor switch by lifting the snap-lock retainer with a screwdriver and pulling on the connector.

INSTALLATION
1. To install, reverse Removal procedure.
