HO2S Connector Pin Assignment and Sensor Location
HO2S Connector Pin Assignment and Sensor Location

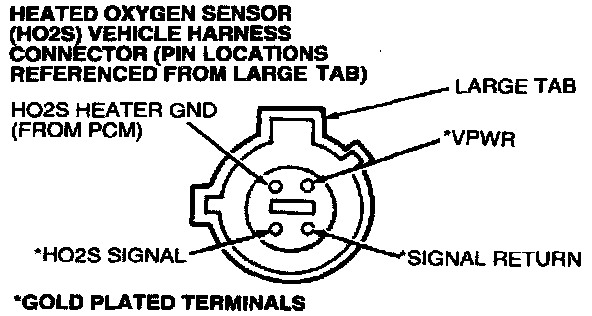

Connector View:

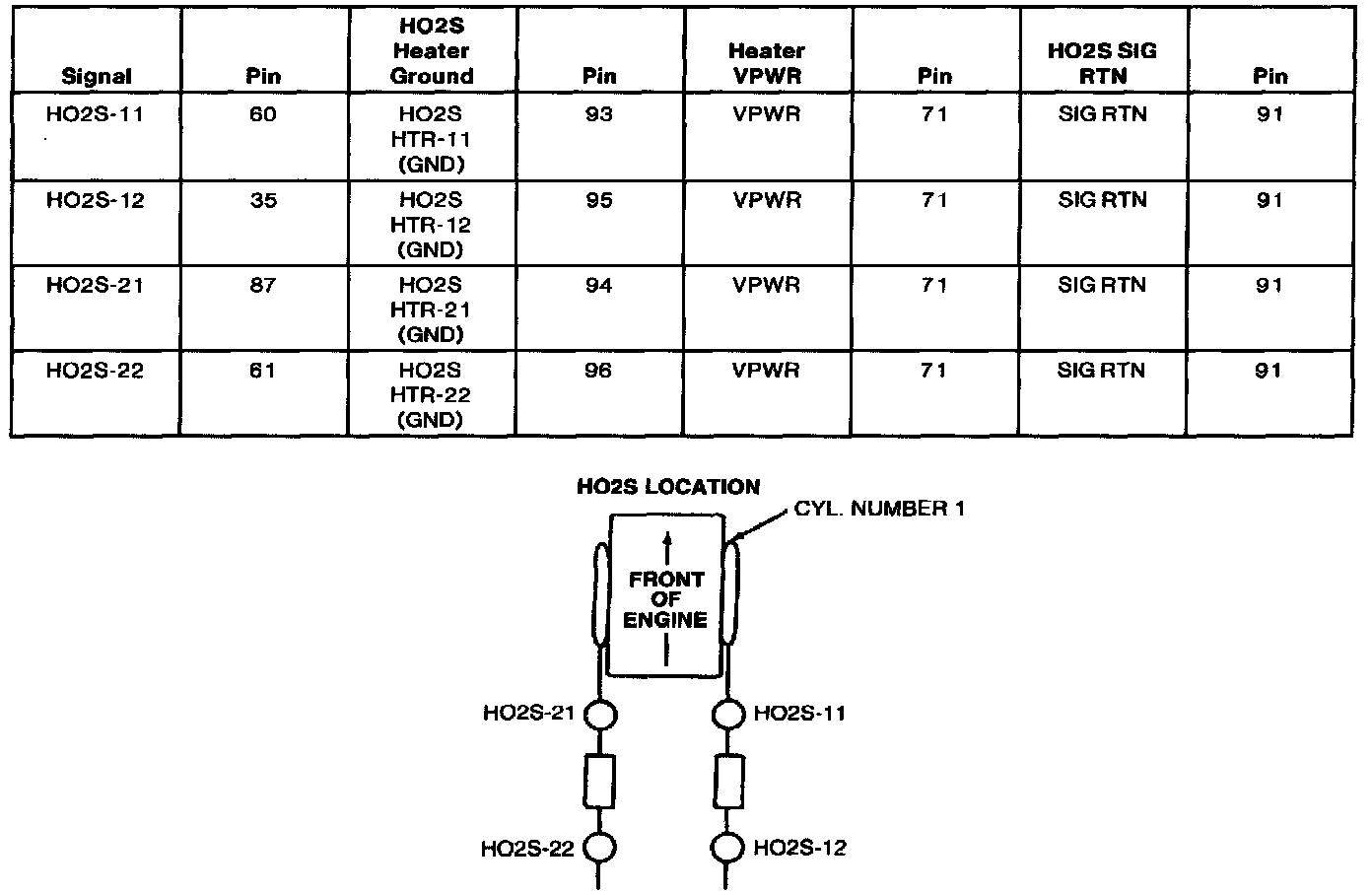

HO2S Connector Pin Assignment:
