Passenger's Side

Removal

WARNING:
- ALWAYS WEAR SAFETY GLASSES WHEN REPAIRING AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) VEHICLE AND WHEN HANDLING AN AIR BAG MODULE.
- CARRY A LIVE AIR BAG MODULE WITH THE AIR BAG AND DEPLOYMENT DOOR POINTED AWAY FROM YOUR BODY. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
- DO NOT SET A LIVE AIR BAG MODULE DOWN WITH THE DEPLOYMENT DOOR FACE DOWN.
- AFTER DEPLOYMENT, THE AIR BAG SURFACE CAN CONTAIN DEPOSITS OF SODIUM HYDROXIDE, A PRODUCT OF THE GAS GENERANT COMBUSTION THAT IS IRRITATING TO THE SKIN. WASH YOUR HANDS WITH SOAP AND WATER AFTERWARDS.
- NEVER PROBE THE CONNECTORS ON THE AIR BAG MODULE. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT WHICH CAN RESULT IN PERSONAL INJURY.
- AIR BAG MODULES WITH DISCOLORED OR DAMAGED DEPLOYMENT DOORS MUST BE REPLACED, NOT REPAINTED.
- VEHICLE SENSOR ORIENTATION IS CRITICAL FOR PROPER SYSTEM OPERATION. IF A VEHICLE EQUIPPED WITH AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) IS INVOLVED IN A COLLISION, INSPECT THE SENSOR MOUNTING BRACKET AND WIRING PIGTAIL FOR DEFORMATION. IF DAMAGED, REPLACE THE SENSOR WHETHER OR NOT THE AIR BAG IS DEPLOYED.
- TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS. TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).

NOTE: Repair is made by replacement only. If a pan is replaced and the new pan does not correct the condition, install the original part and perform the diagnostic procedure again.

1. Disconnect the battery ground cable(s).
2. Remove the instrument panel finish panel.
3. Remove the instrument panel finish panel reinforcement

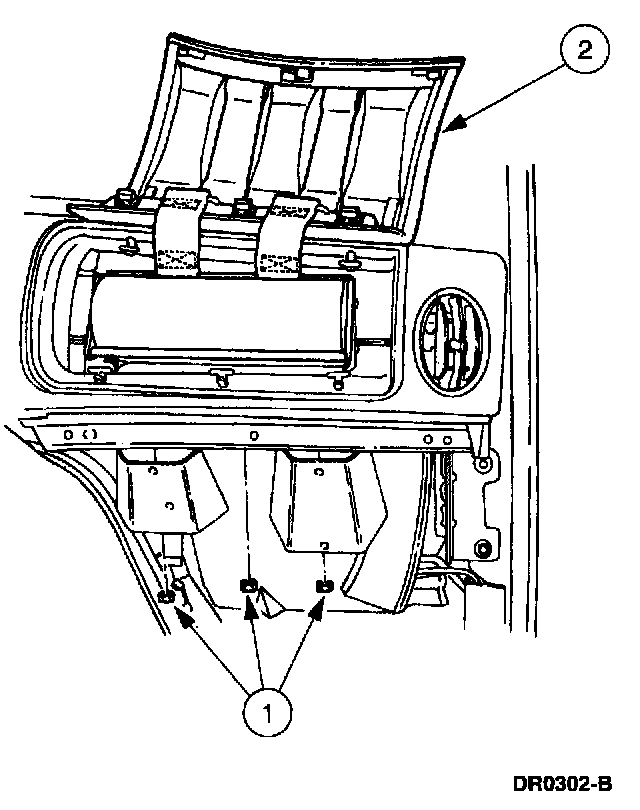

4. Remove the passenger air bag module retaining nuts.
1. Remove the passenger air bag module retaining nuts.
2. Using a 3/8-inch x 4-inch flat head screwdriver, or equivalent, carefully slide the head of the screwdriver under the right bottom edge of the door and lift upward, separating the door from the clip. Separate the rest of the door from the clips by lifting the door with your hands.

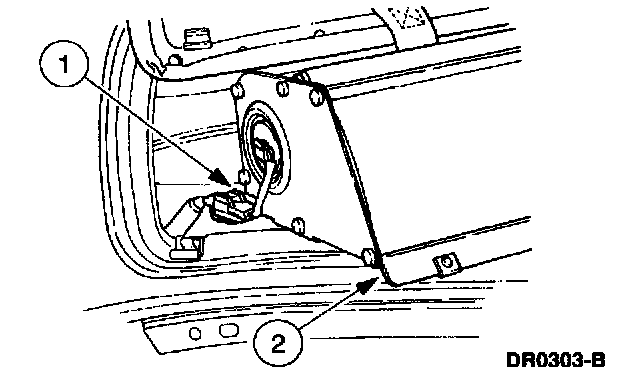

5. Remove the passenger air bag module.
1. Disconnect the passenger air bag module electrical connector.
2. Remove the passenger air bag module.
6. Remove the six offset fasteners used for retaining the air bag module door from the instrument panel.
7. If the passenger air bag module is diagnosed as faulty, dispose of the air bag. Refer to Air Bag Disposal. Air Bag Disposal Procedures

Installation




WARNING:
- ALWAYS WEAR SAFETY GLASSES WHEN REPAIRING AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) VEHICLE AND WHEN HANDLING AN AIR BAG MODULE.
- CARRY A LIVE AIR BAG MODULE WITH THE AIR BAG AND DEPLOYMENT DOOR POINTED AWAY FROM YOUR BODY. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
- NEVER PROBE THE CONNECTORS ON THE AIR BAG MODULE. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT WHICH CAN RESULT IN PERSONAL INJURY.

NOTE: Repair is made by replacement only. If a part is replaced and the new part does not correct the condition, install the original part and perform the diagnostic procedure again.

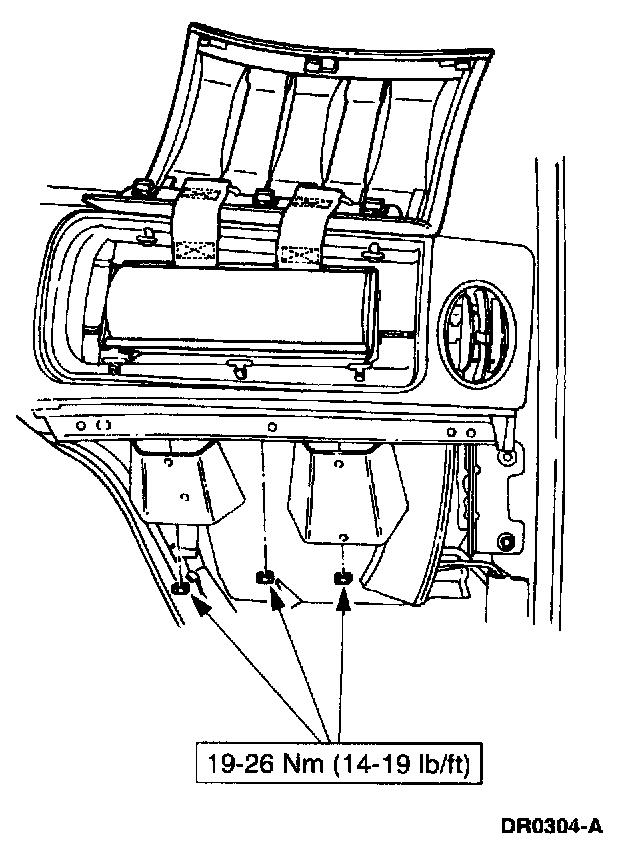

Follow the Removal procedure in reverse order.
- Place six new offset fasteners onto the air bag module door.
