Function Control Switch

REMOVAL
1. Remove the control assembly.

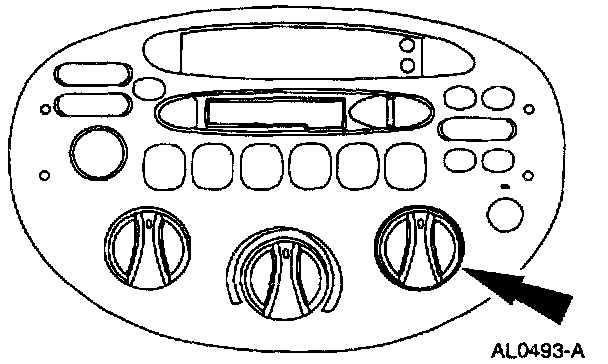

2. Remove the function selector knob.

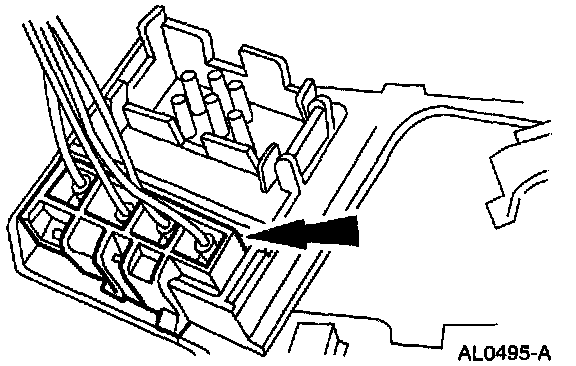

3. Disconnect the function selector switch electrical connector.

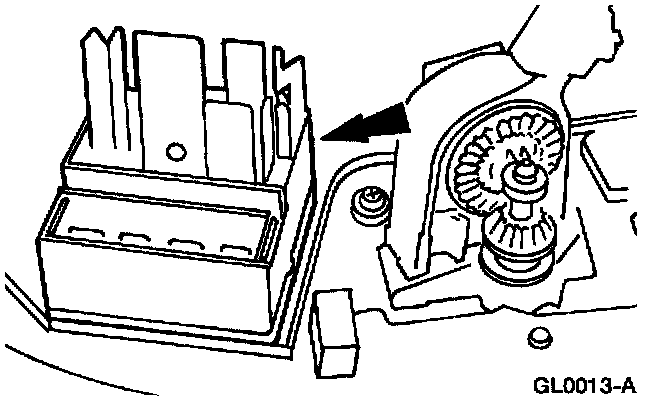

4. Remove the function selector switch.

INSTALLATION
1. Follow the removal procedure in reverse order.
