Temperature Control Switch

REMOVAL
1. Remove the control assembly.

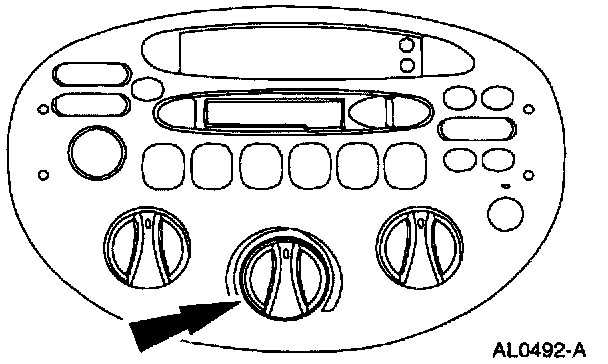

2. Remove the temperature control selector knob.

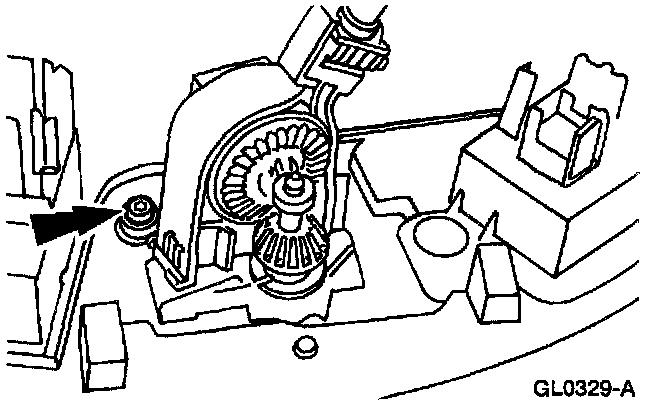

3. Remove the screw and the temperature control switch with the heater temperature cable attached.
