Cruise Control Servo: Service and Repair

REMOVAL







1. Remove the speed control actuator cable cap from the speed control servo.

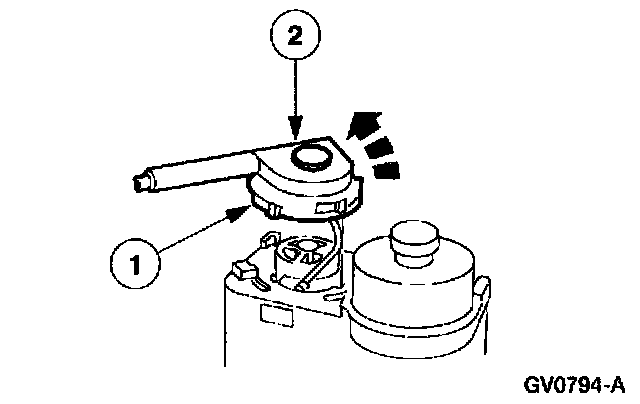

1 Push in the locking arm on the speed control actuator cable cap.
2 Rotate the speed control actuator cable cap counterclockwise and remove the speed control actuator cable cap from the speed control servo.







2. Disconnect the speed control actuator cable from the speed control servo.

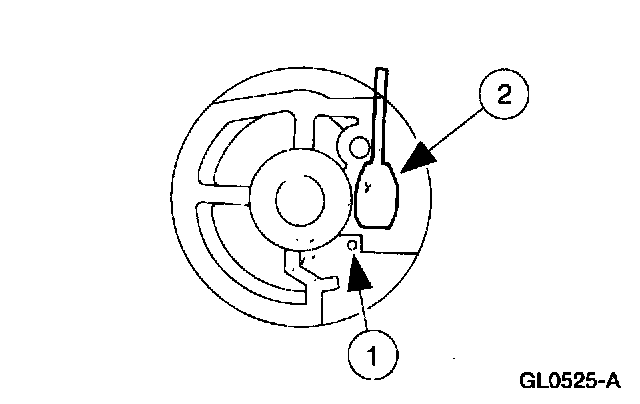

1 Depress the spring retainer.
2 Slide the core wire end out of the speed control servo pulley.

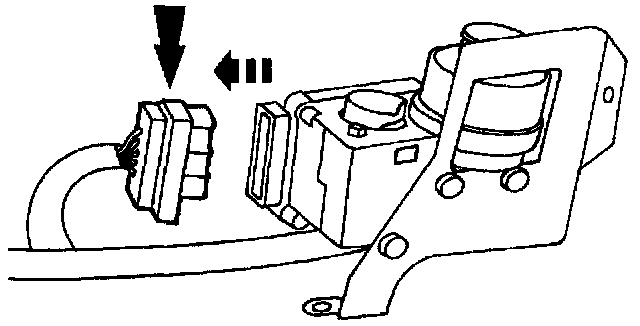

3. Disconnect the speed control servo electrical connector.

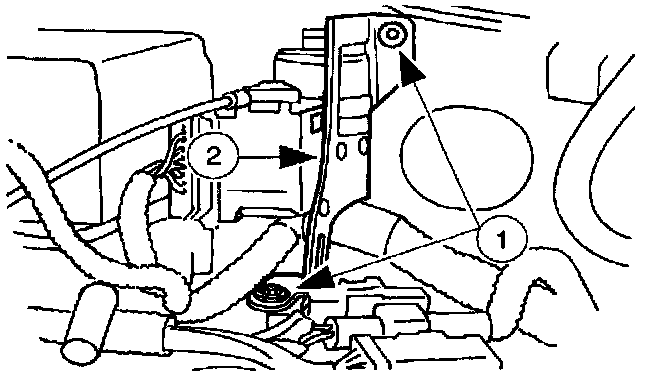

4. Remove the speed control servo and bracket.
1 Remove the bolts.
2 Remove the speed control servo and bracket.

NOTE: Do not remove the rubber grommets from the speed control servo bracket.

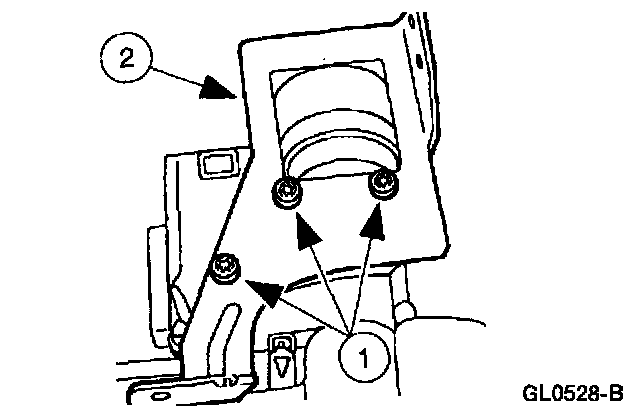

5. Remove the speed control servo bracket.
1 Remove the screws.
2 Remove the speed control servo bracket.

INSTALLATION

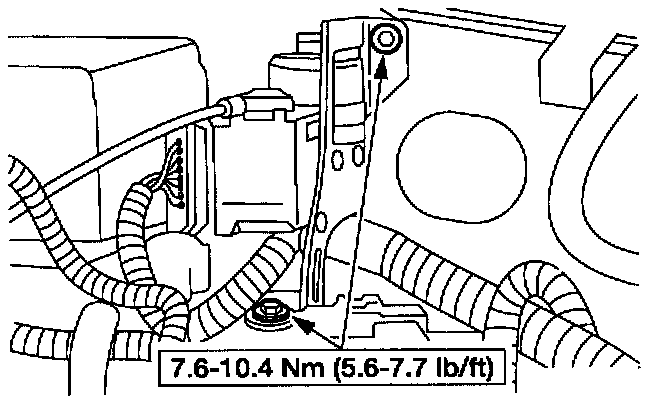

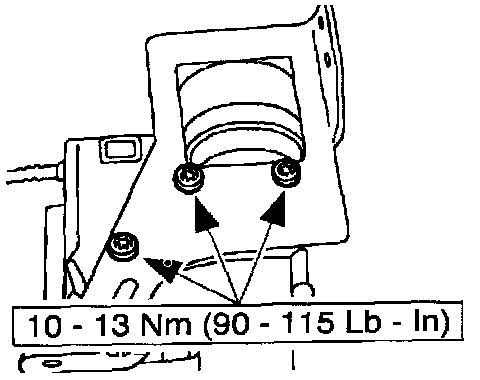

1. To install, reverse the removal procedure.

NOTE: The rubber grommets must be properly seated in the speed control servo bracket for proper noise and vibration isolation.
