Air Conditioning and Heater Assembly

REMOVAL
1. Discharge and recover the refrigerant.
2. Drain the engine cooling system.
3. Remove the LH quarter trim panel.

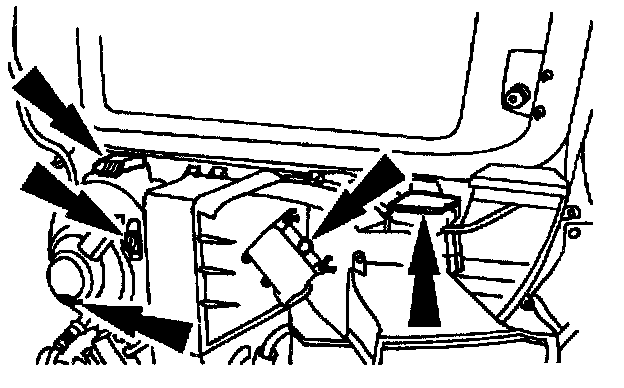

4. Disconnect the electrical connectors.

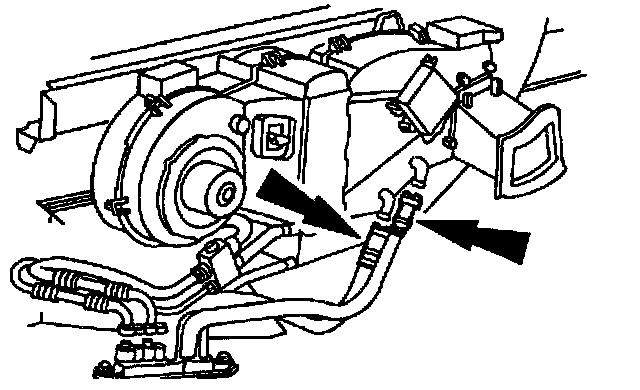

5. Disconnect the heater core hose couplings.







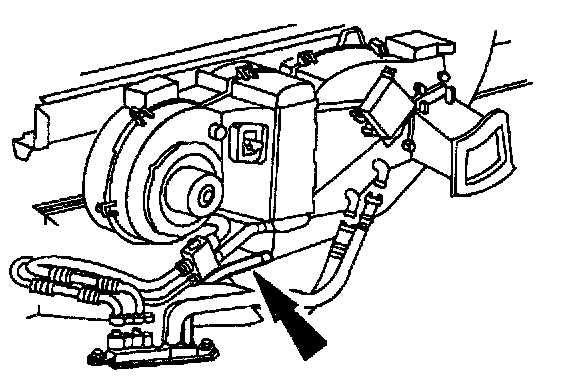

6. Remove the evaporator case drain hose.

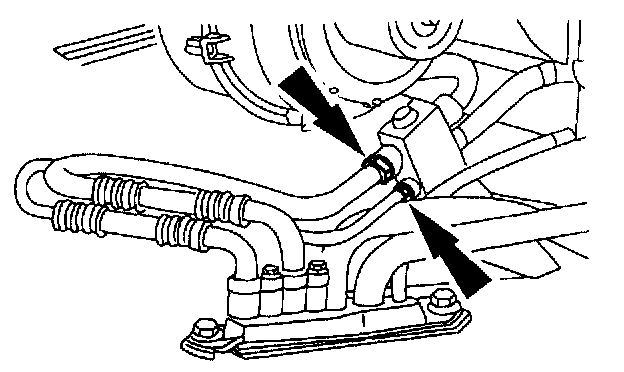

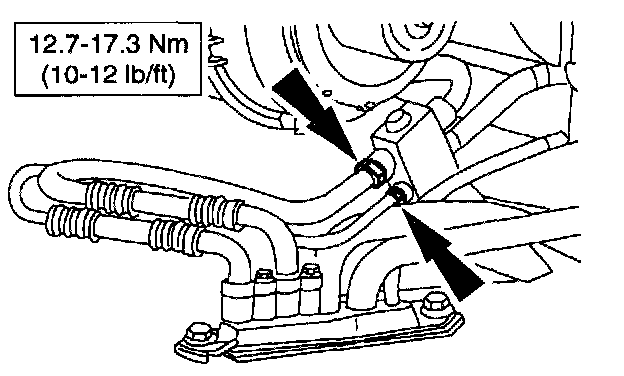

7. Disconnect the A/C evaporator lines from the A/C evaporator expansion valve.

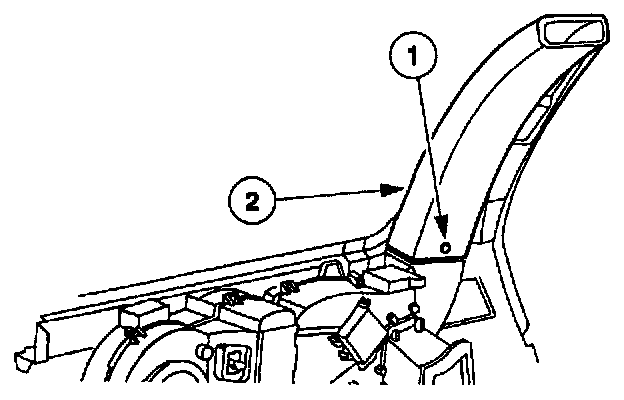

8. Remove the A/C outlet duct.
1 Remove the pushpin.
2 Remove the A/C outlet duct.

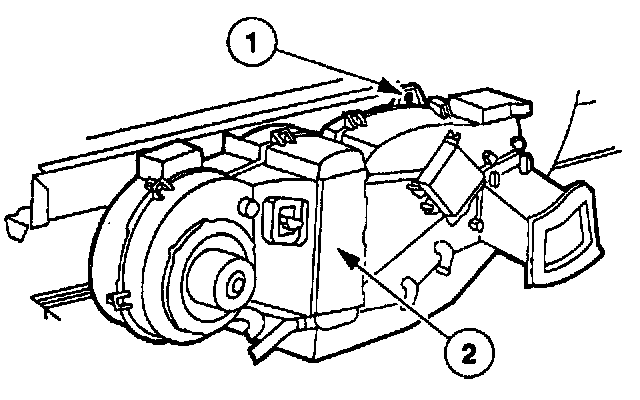

9. Remove the auxiliary air conditioning and heater assembly.

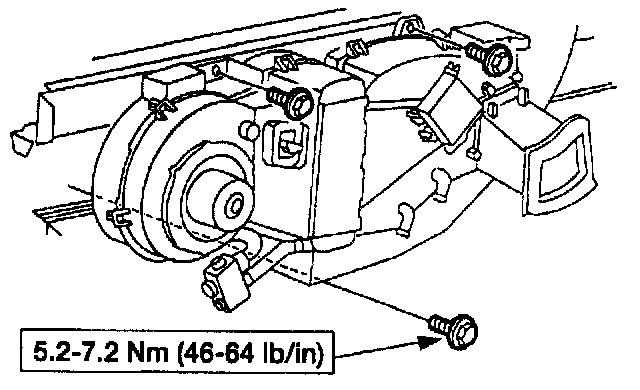

1 Remove the three bolts.
2 Remove the auxiliary air conditioning and heater assembly.

INSTALLATION












1. Follow the removal procedure in reverse order.
