Ignition Coil: Service and Repair

REMOVAL

NOTE: Procedure is for either RH or LH ignition coil; RH ignition coil is shown.







1. Disconnect the ignition coil electrical connections.

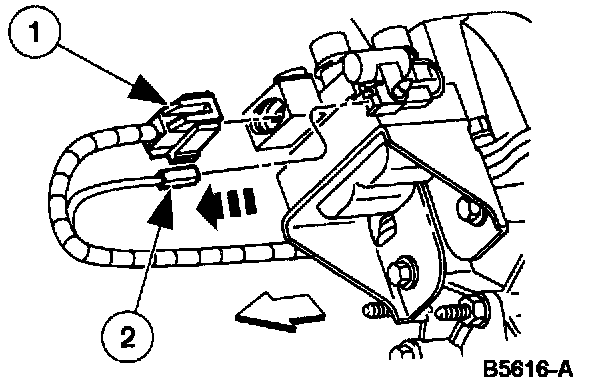

1 Disconnect the ignition coil electrical connector.
2 Disconnect the radio capacitor electrical connector.

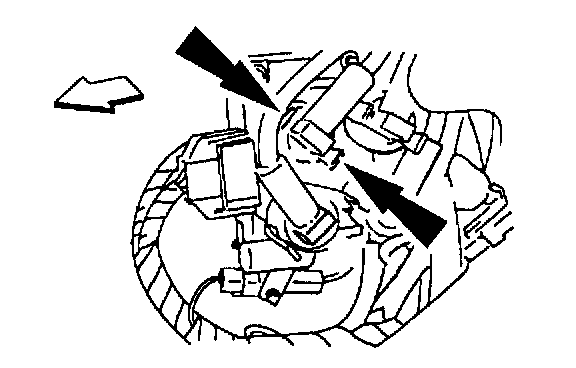

2. Squeeze the (A) locking tabs and disconnect the (B) spark plug wires.

CAUTION: Spark plug wires must be connected to the proper ignition coil terminal. Mark spark plug wire locations.







3. Remove the ignition coil.

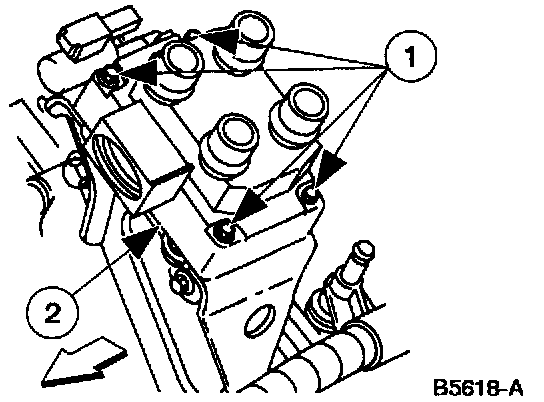

1 Remove the bolts.
2 Remove the ignition Coil.
4. Inspect the ignition coil for carbon tracks or damage, replace as necessary.

INSTALLATION

NOTE: Procedure is for either LH or RH ignition coil RH is shown.







1. Install the ignition coil.
1 Position the ignition coil.

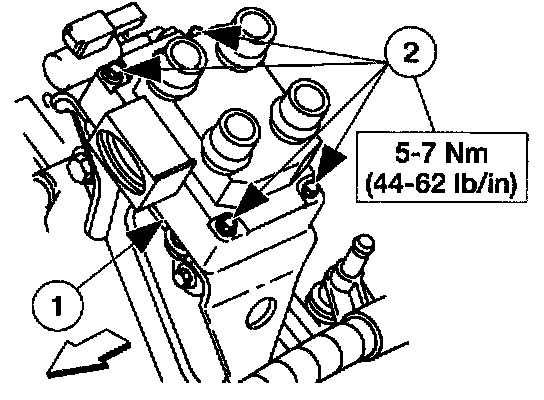

2 Install the bolts.







2. Connect the ignition coil electrical connections.

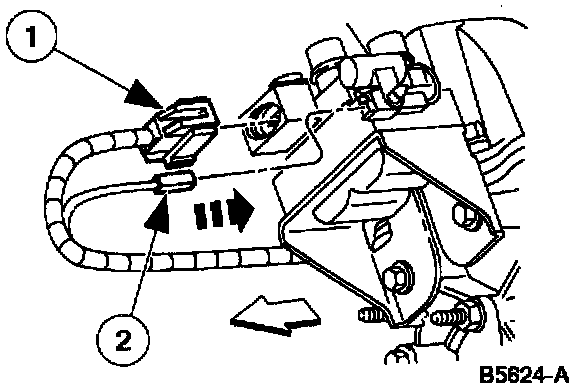

1 Connect the ignition coil electrical connector.
2 Connect the radio capacitor electrical connector.







3. Squeeze the locking tabs and connect the spark plug wires.

CAUTION: Spark plug wires must be connected to the proper ignition coil terminal.
