Cruise Control Servo Cable: Service and Repair

REMOVAL

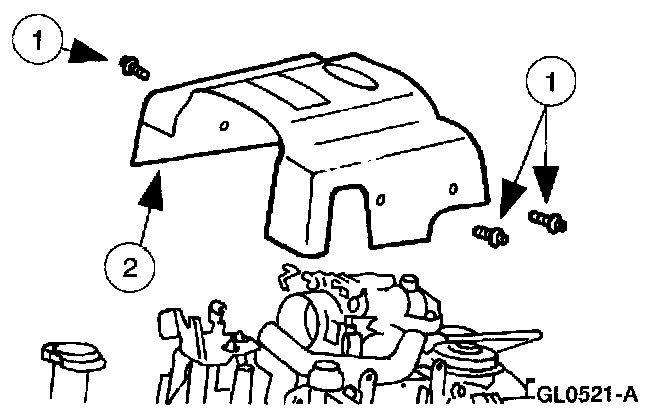

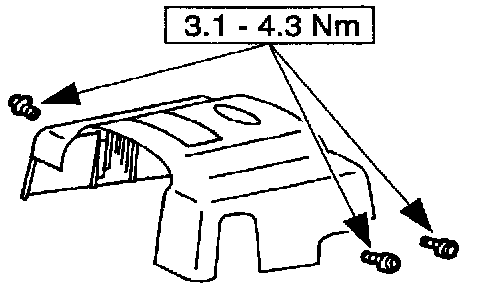

1. Remove the accelerator control splash shield.
1 Remove the screws.
2 Remove the accelerator control splash shield.

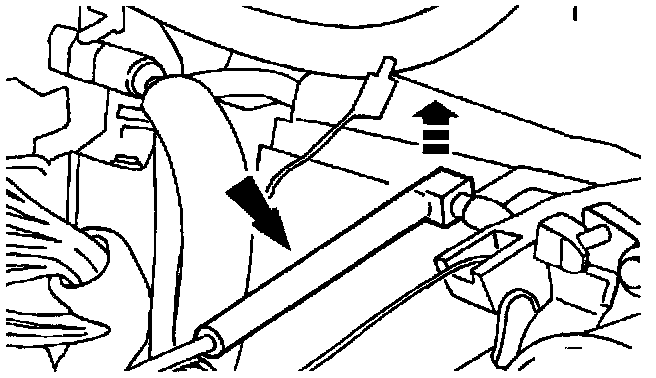

2. Remove the speed control actuator cable.
- Lift the speed control actuator cable upward to remove.

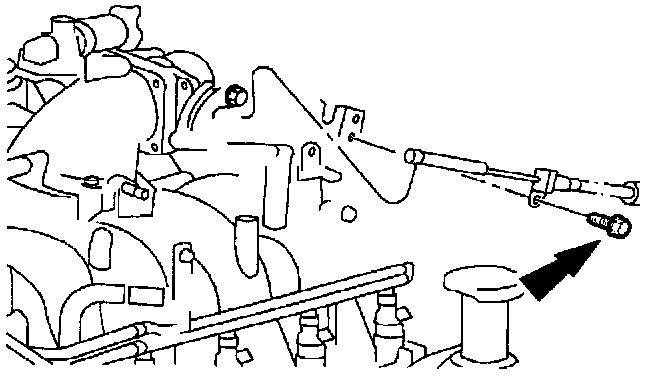

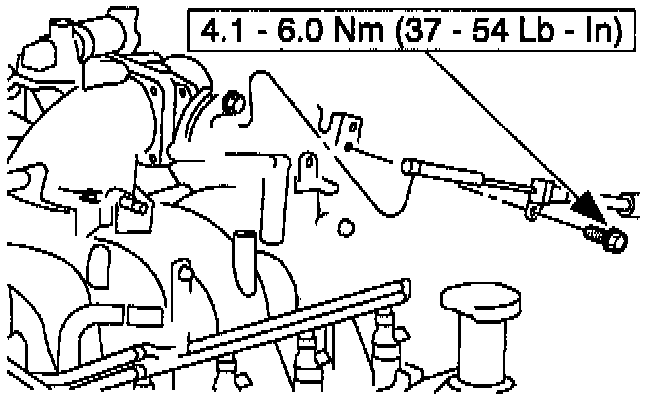

3. Remove the speed control actuator cable to accelerator cable bracket bolt.







4. Remove the speed control actuator cable cap from the speed control servo.
1 Push in the locking arm on the speed control actuator cable cap.
2 Rotate the speed control actuator cable cap counterclockwise and remove the speed control actuator cable cap from the speed control servo.







5. Remove the speed control actuator cable.
1 Depress the spring retainer.
2 Slide the core wire end out of the speed control servo pulley and remove the speed control actuator cable.

INSTALLATION












1. To install, reverse the removal procedure.
