Explorer 4WD V8-302 5.0L VIN P EFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
System Diagram
>>

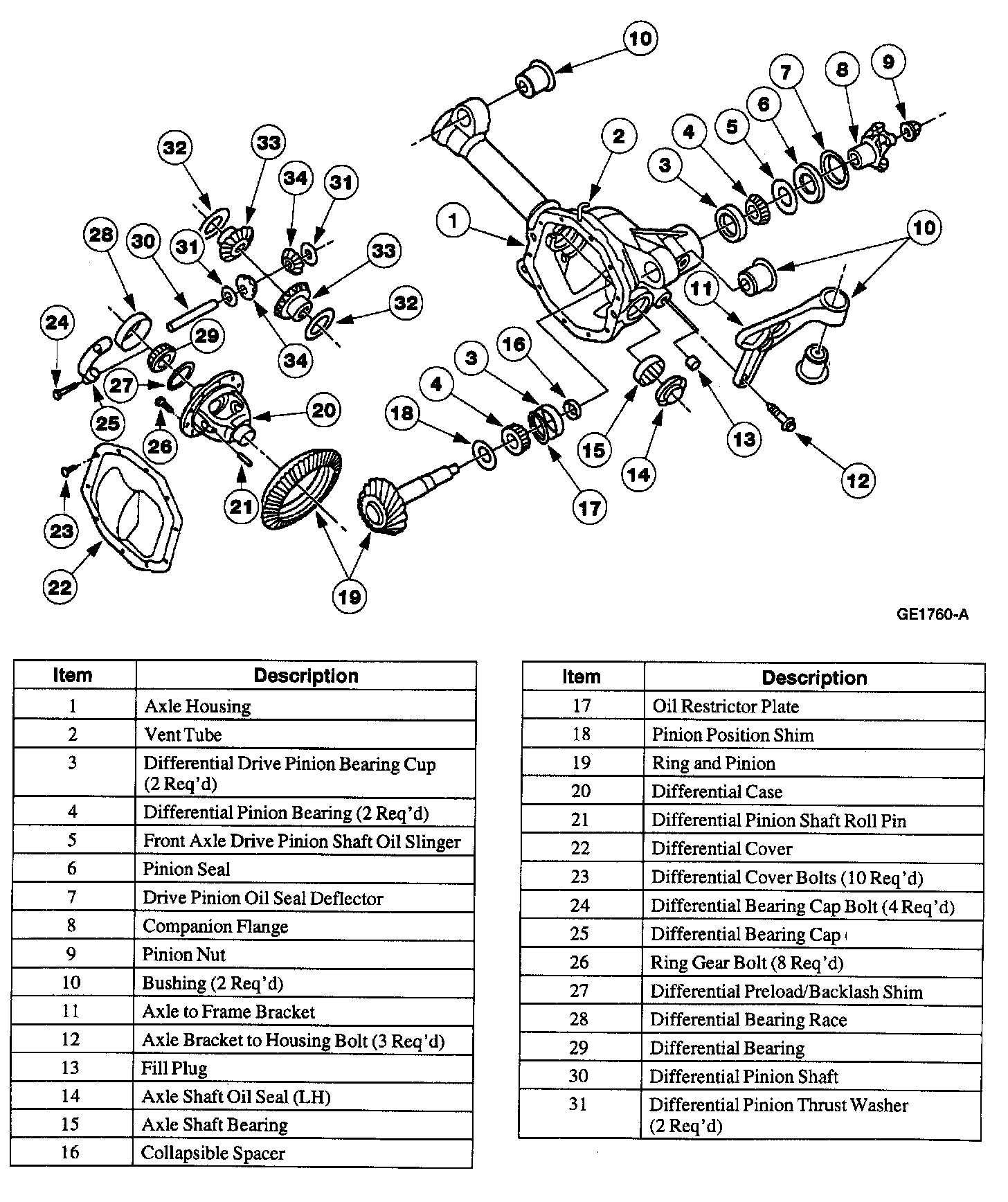

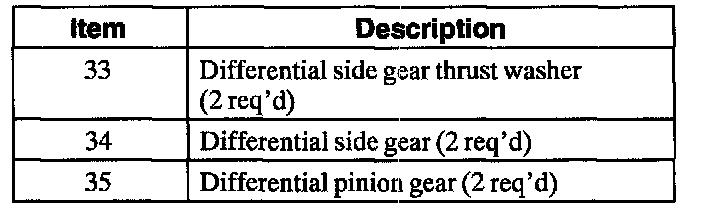

Front Drive Axle - Dana 35
Front Drive Axle - Dana 35
Part 1 Of 2:
