D: Improper/Erratic Direction of Air Flow From Outlet-EATC

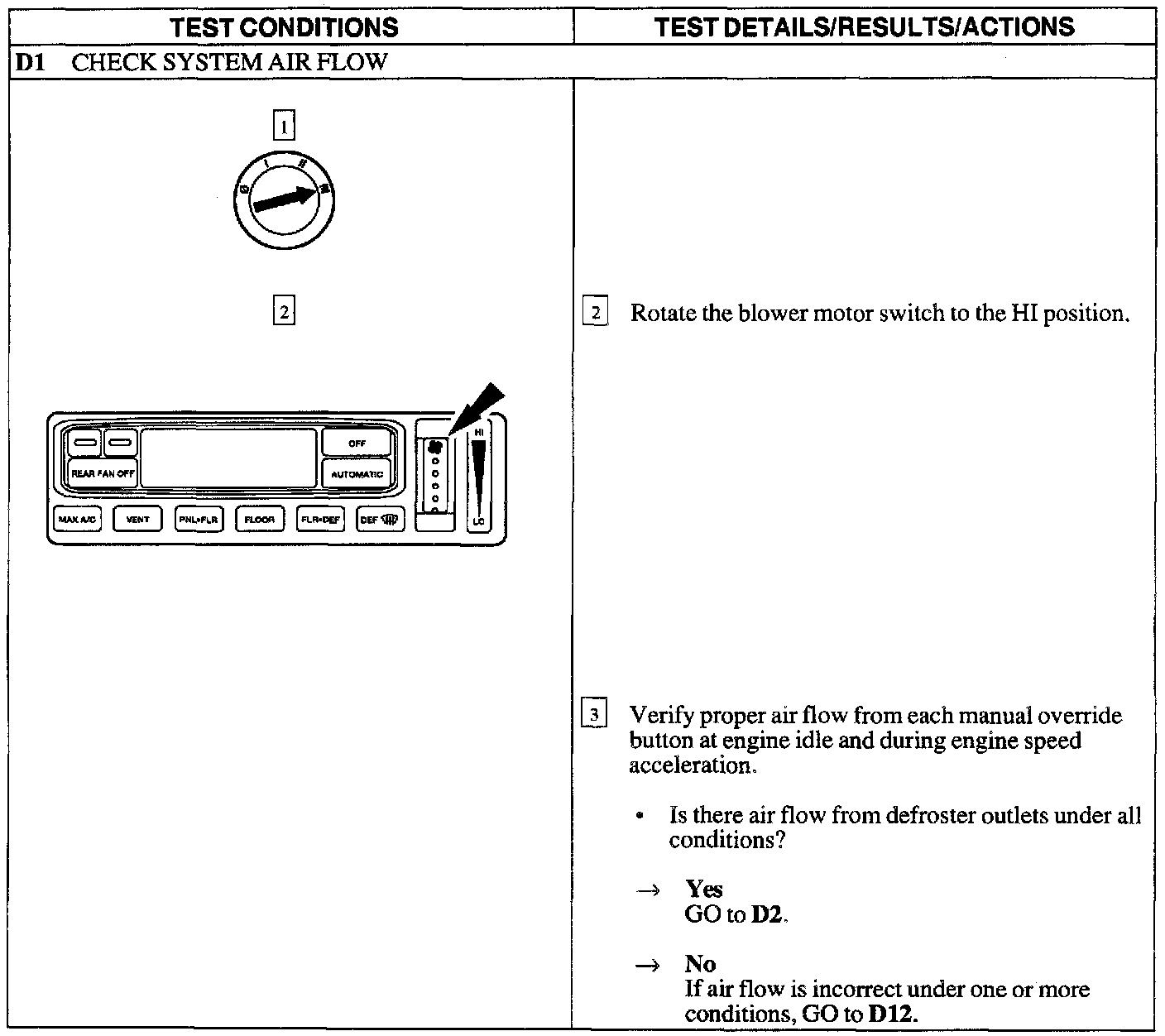

D1:

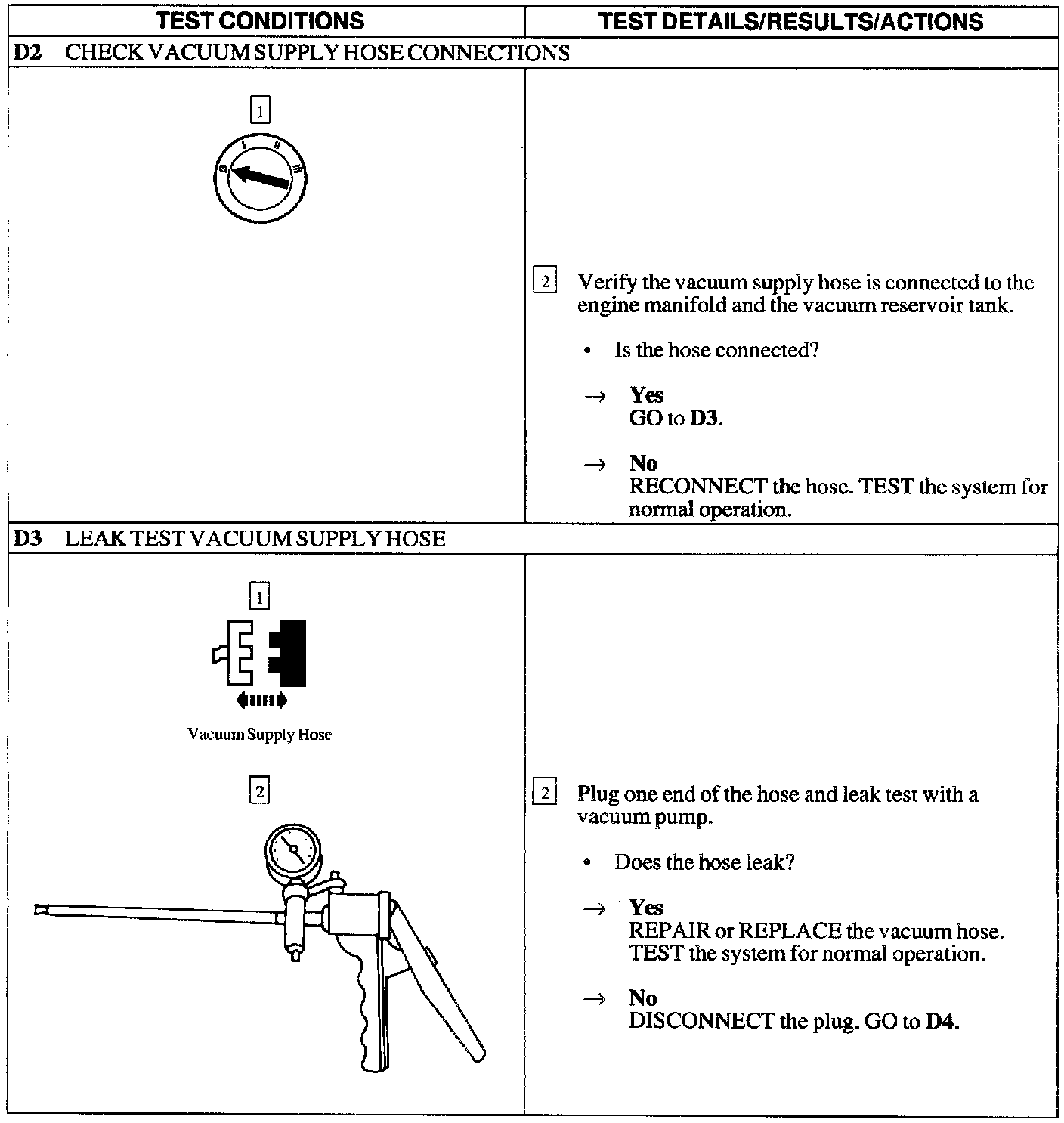

D2 - D3:

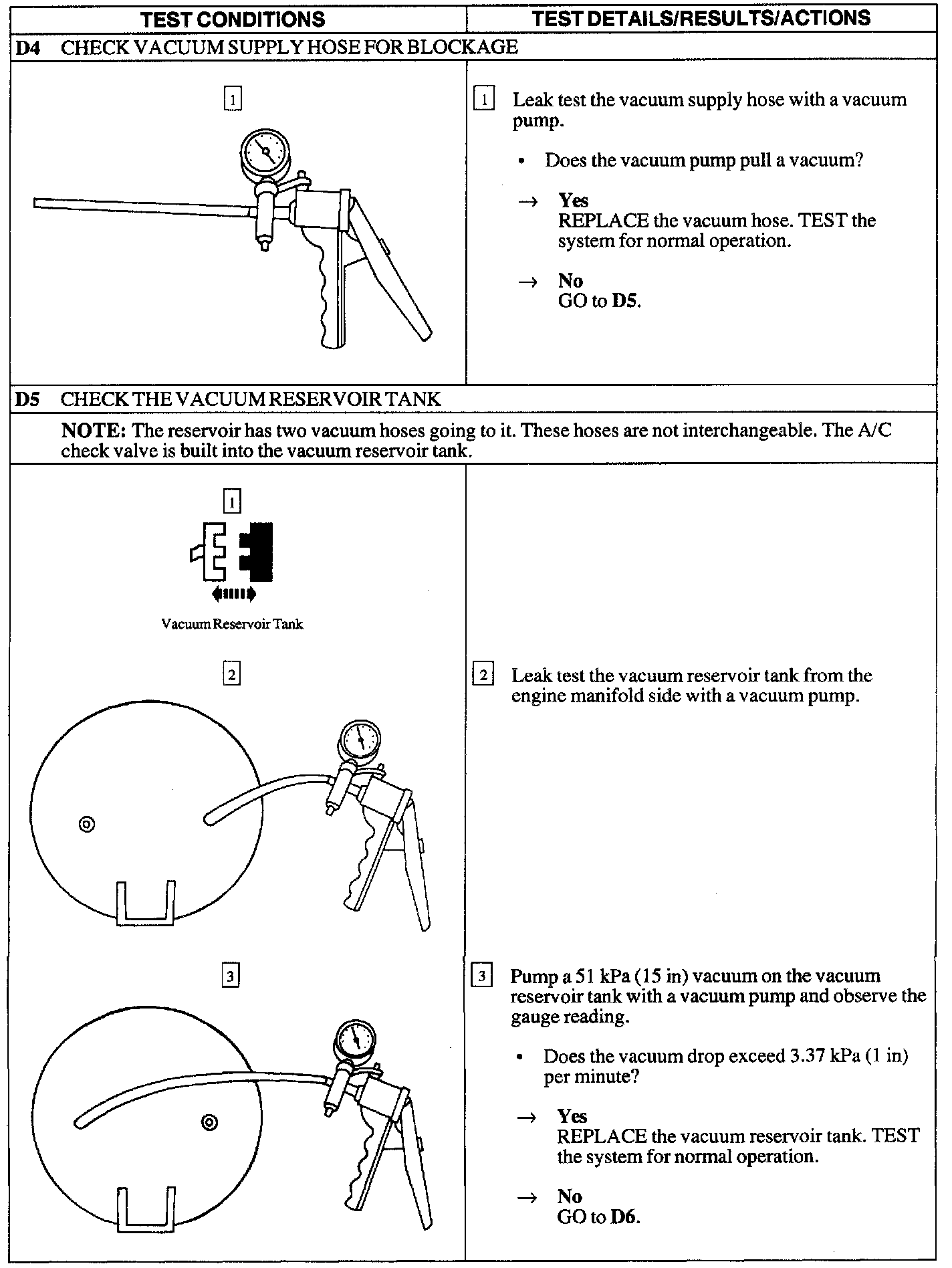

D4 - D5:

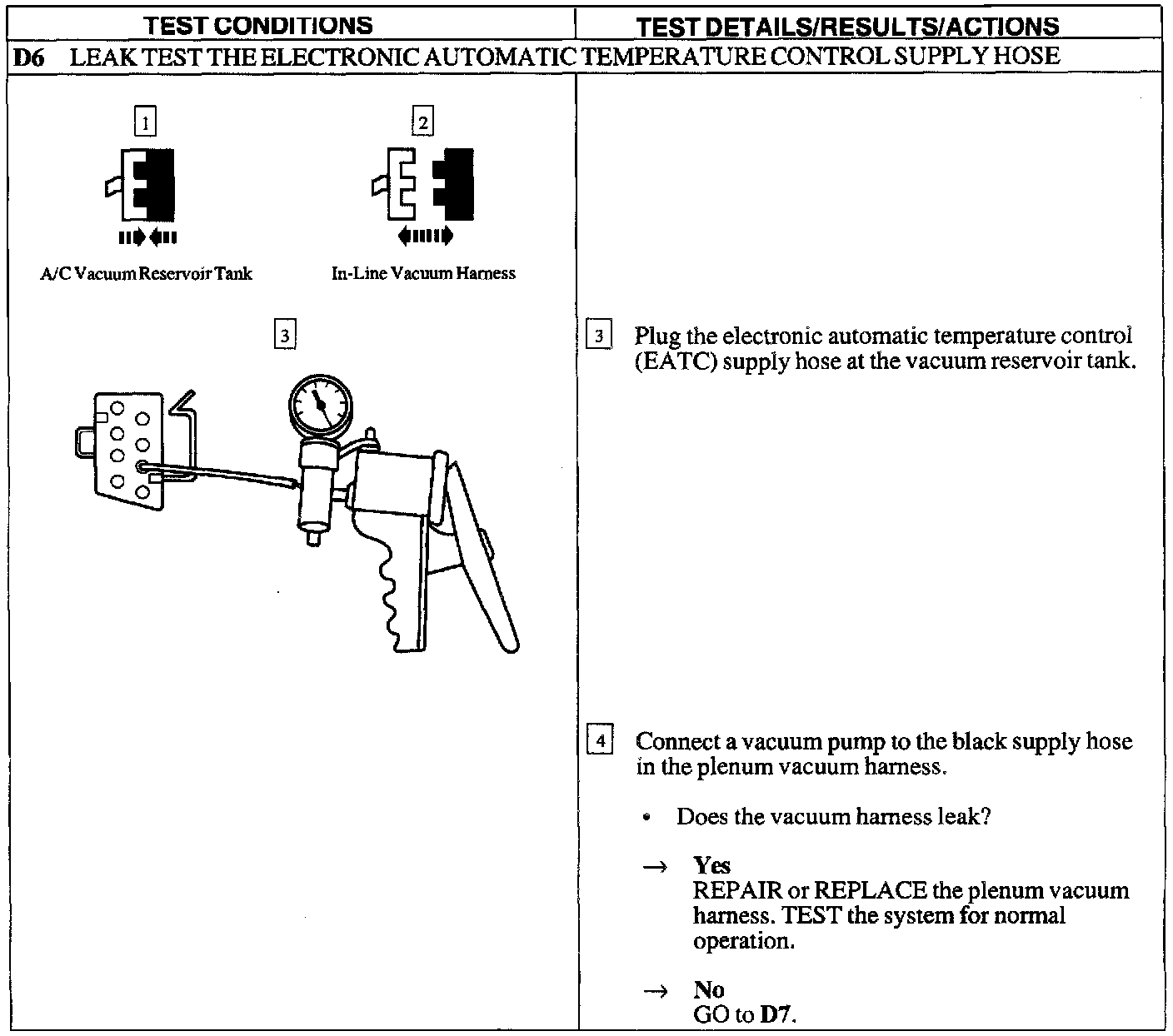

D6:

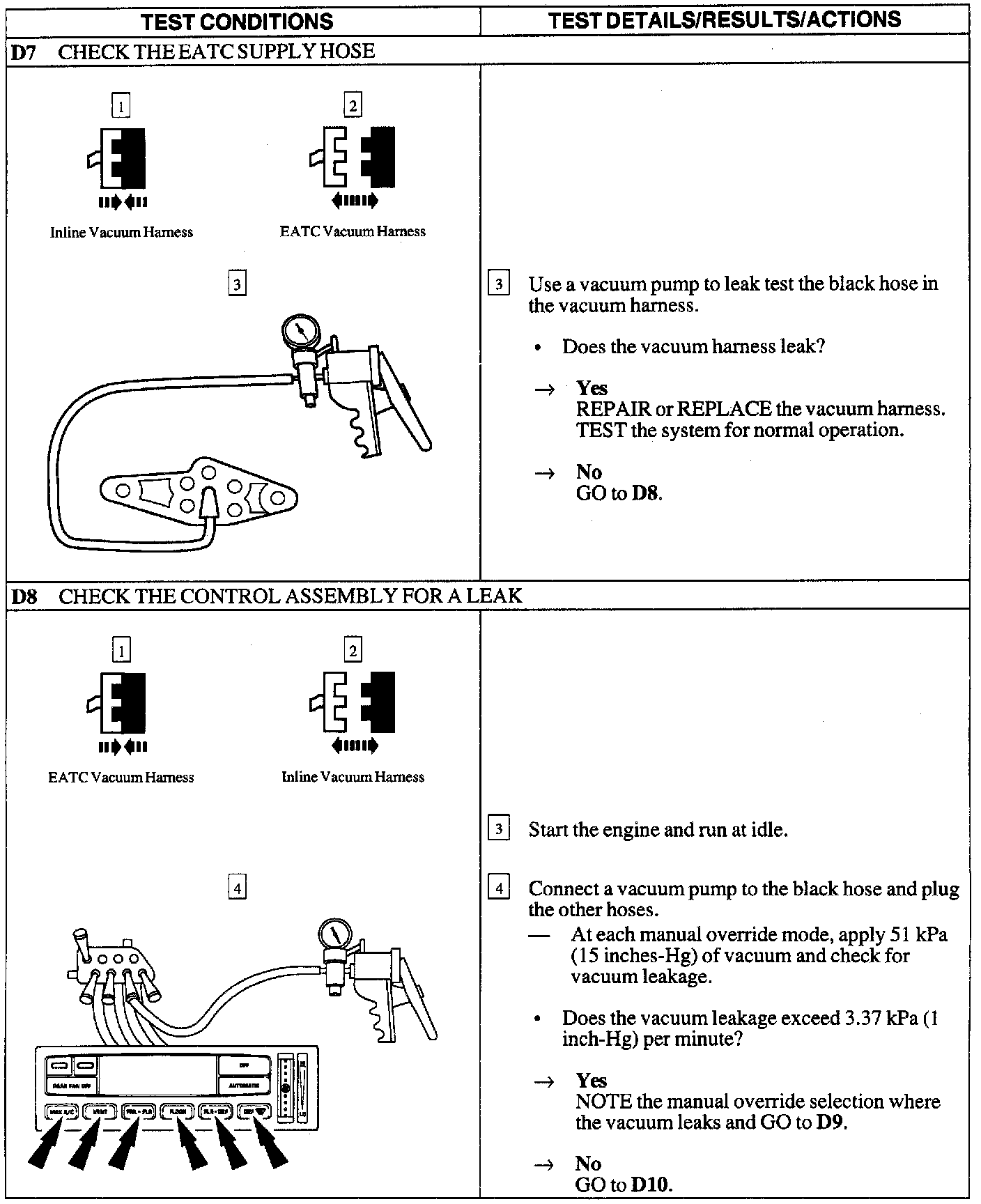

D7 - D8:

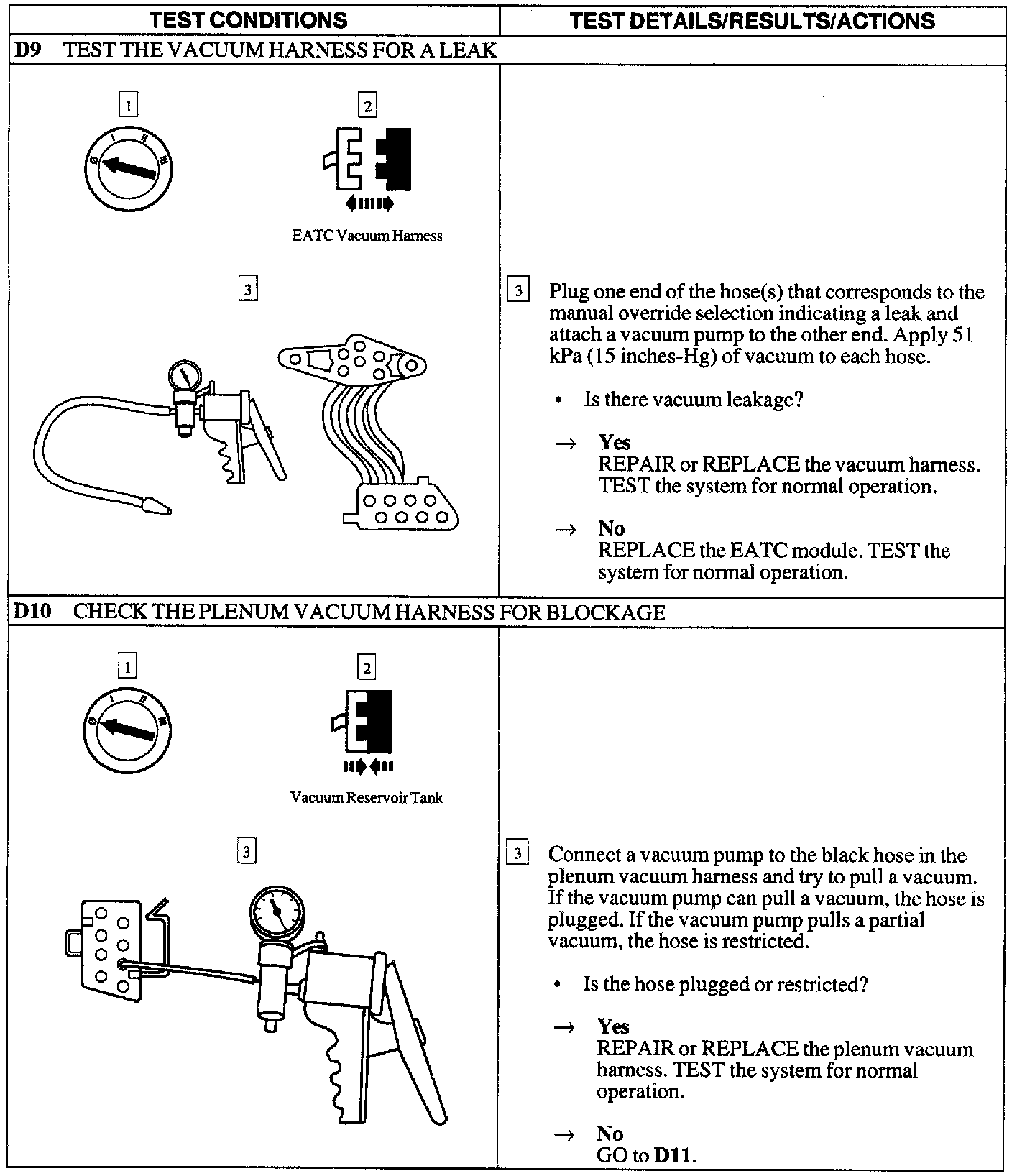

D9 - D10:

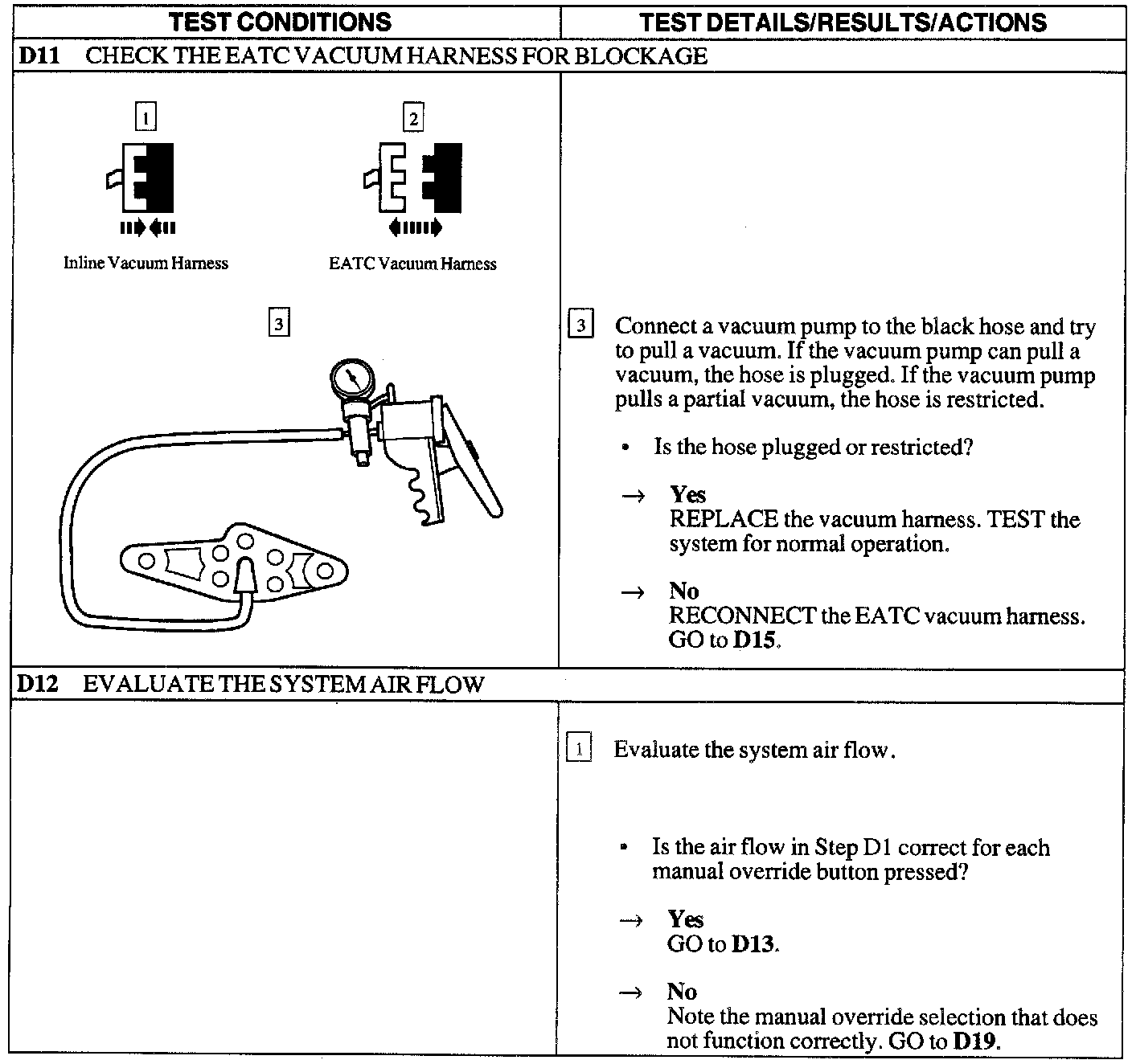

D11 - D12:

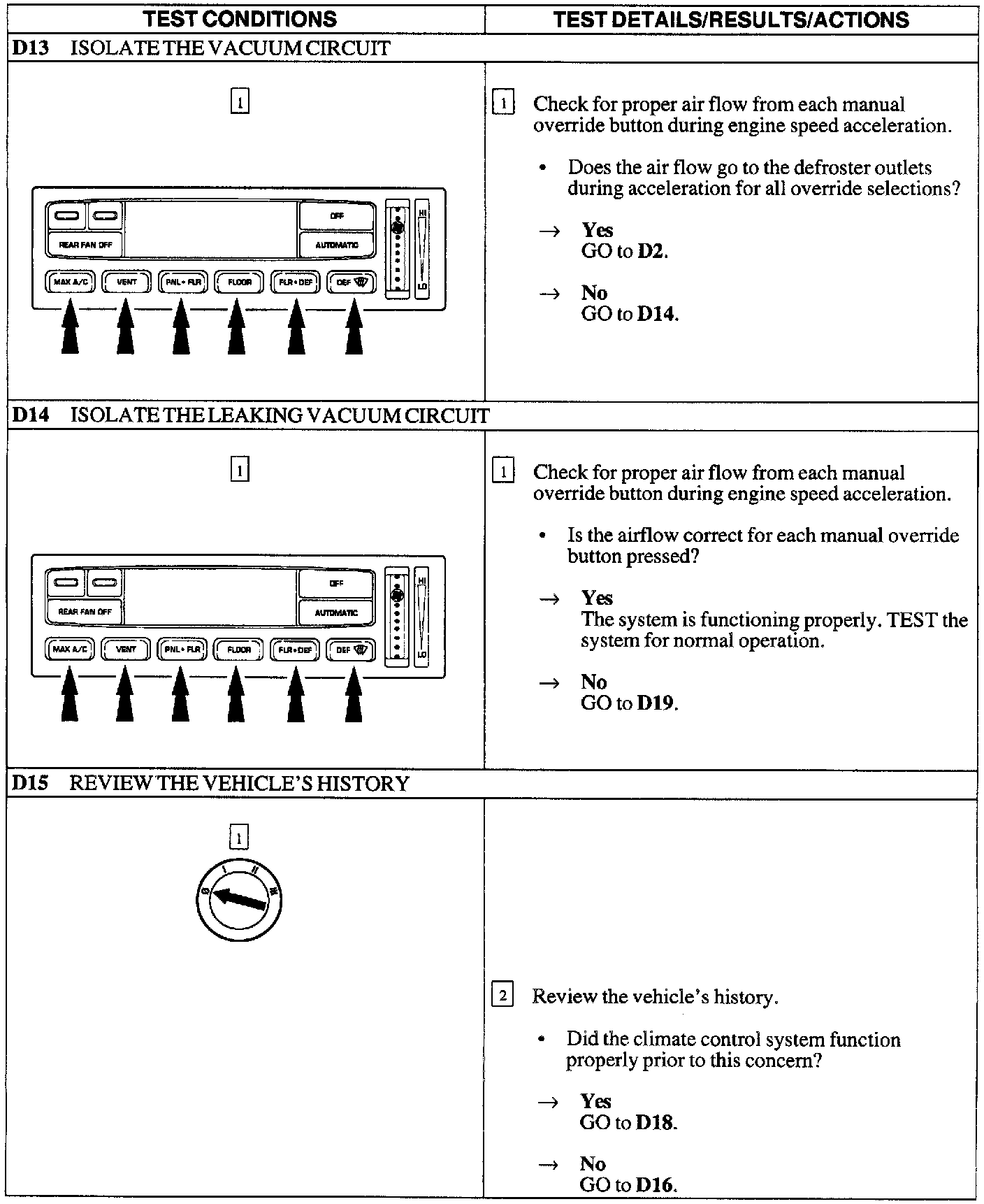

D13 - D15:

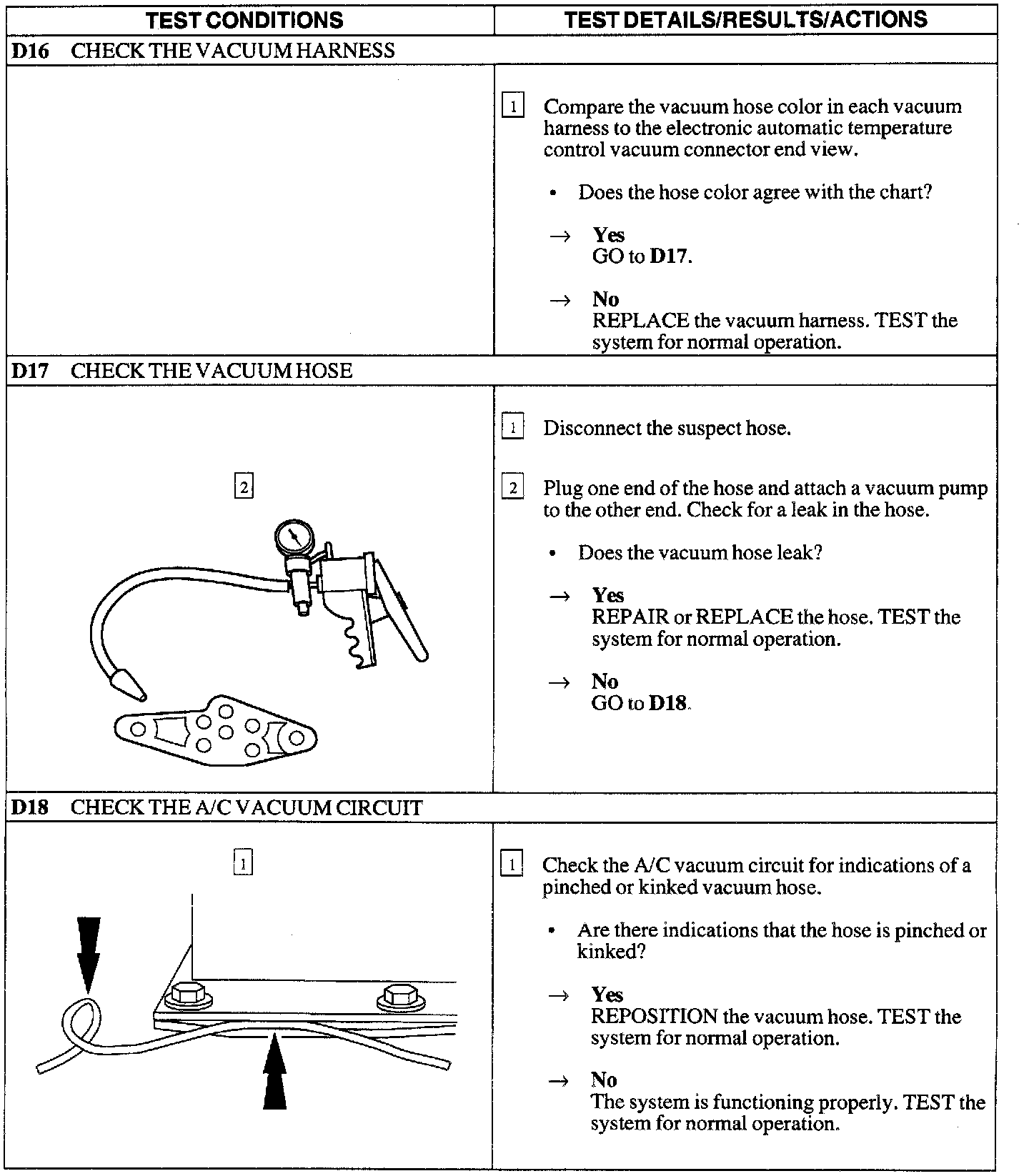

D16 - D18:






D19 - D20:

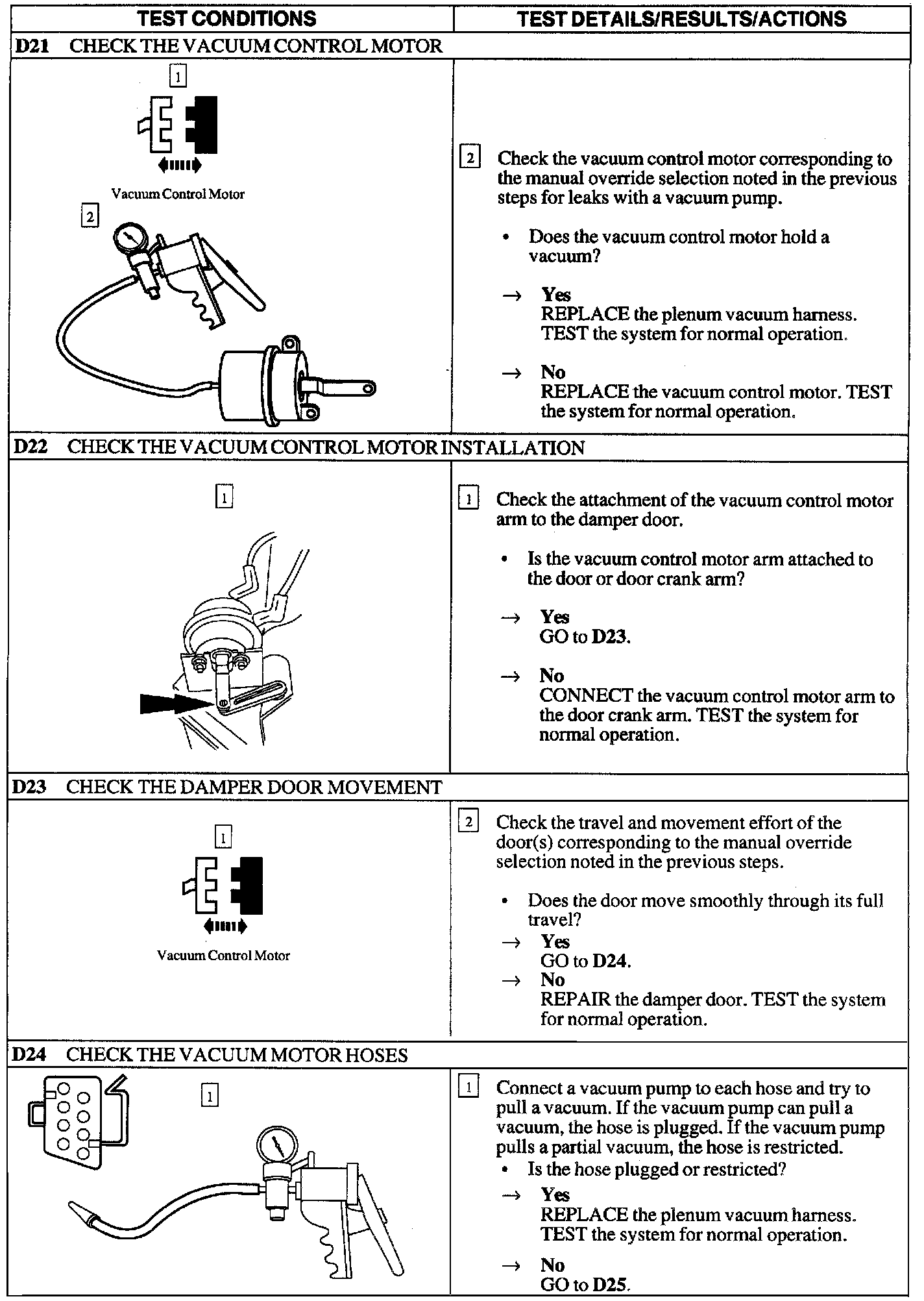

D21 - D24:

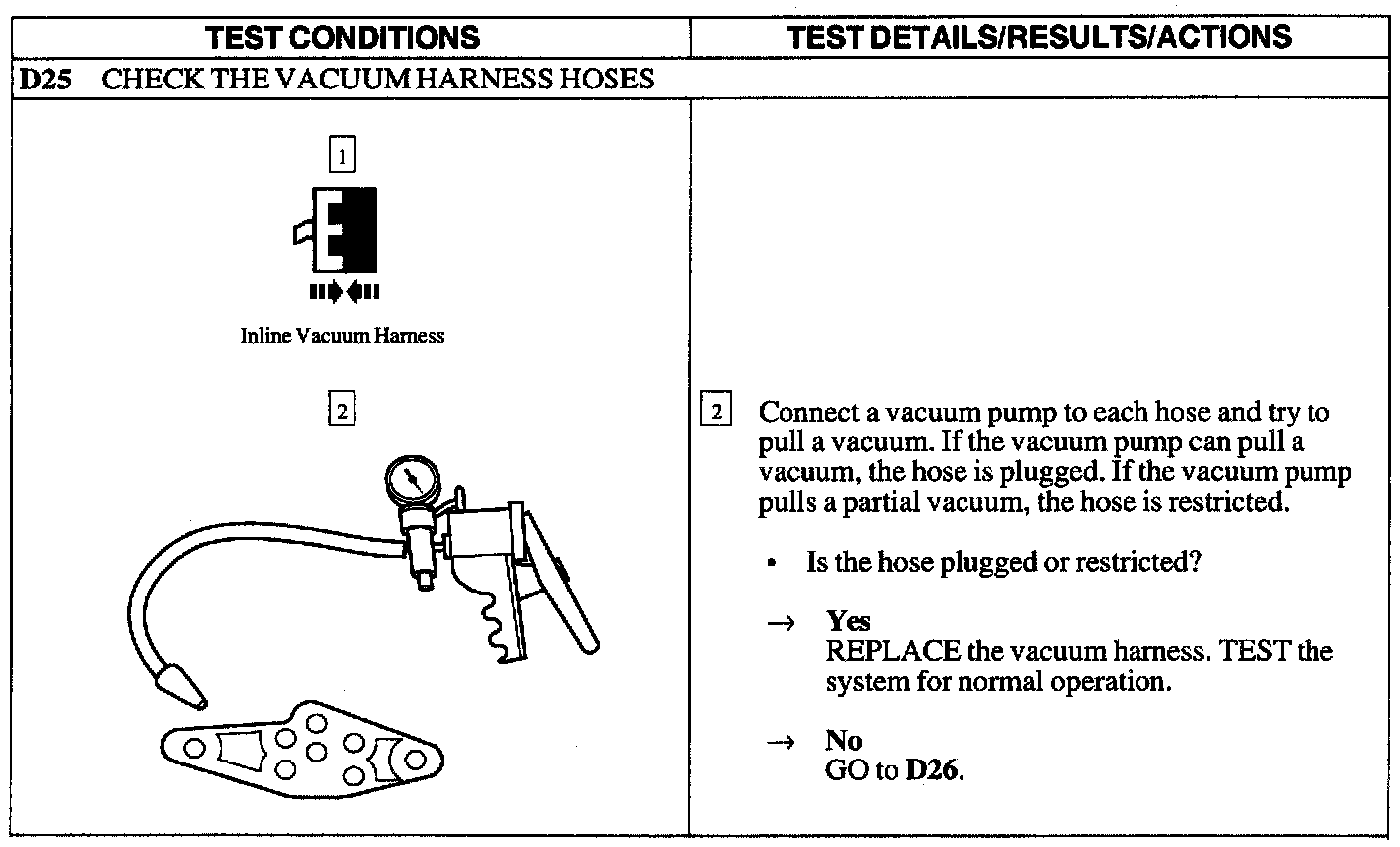

D25:

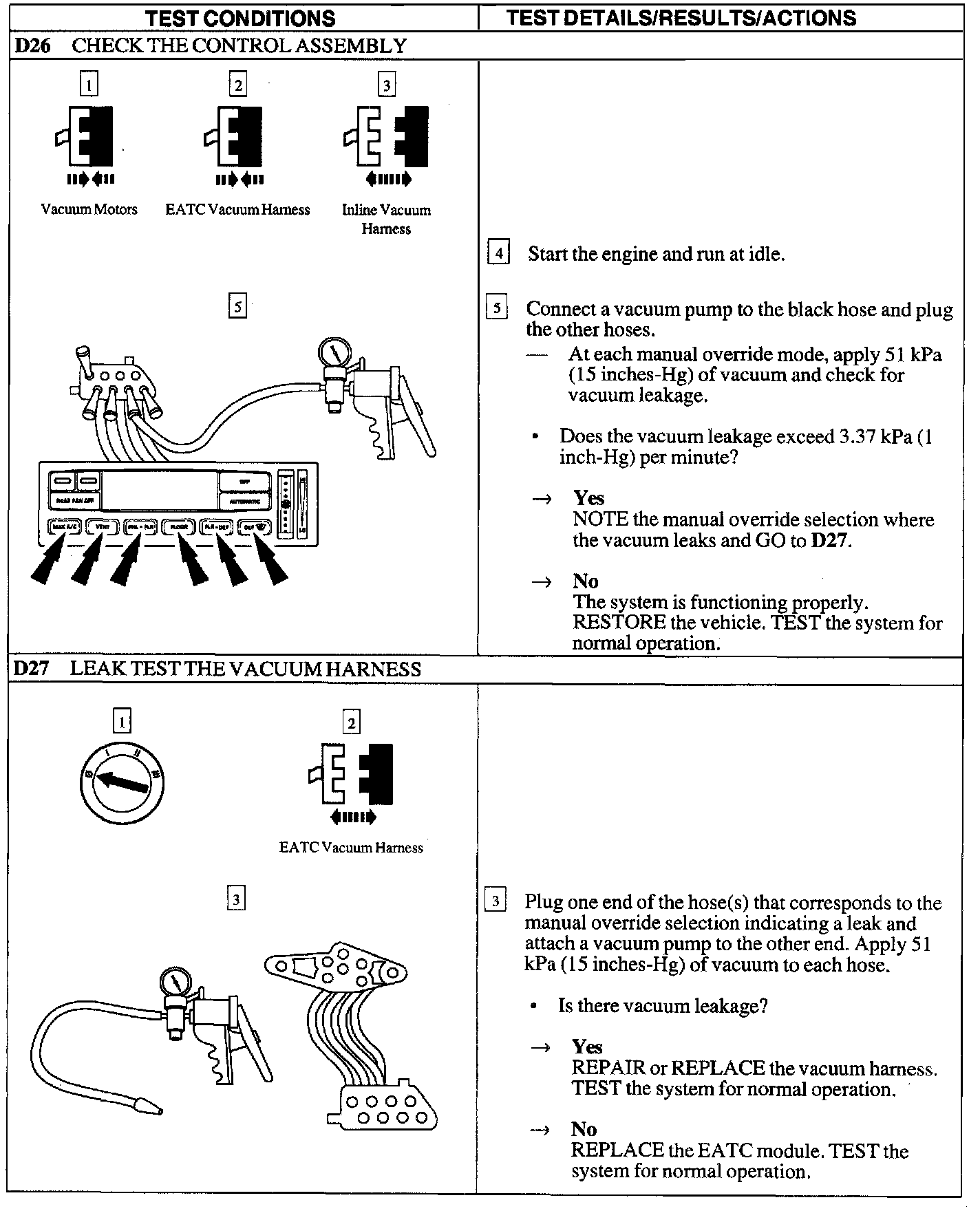

D26 - D27:
