X: Panel/Floor Switch In-Op, Console Blower Operates
X: Panel/Floor Switch In-Op, Console Blower Operates

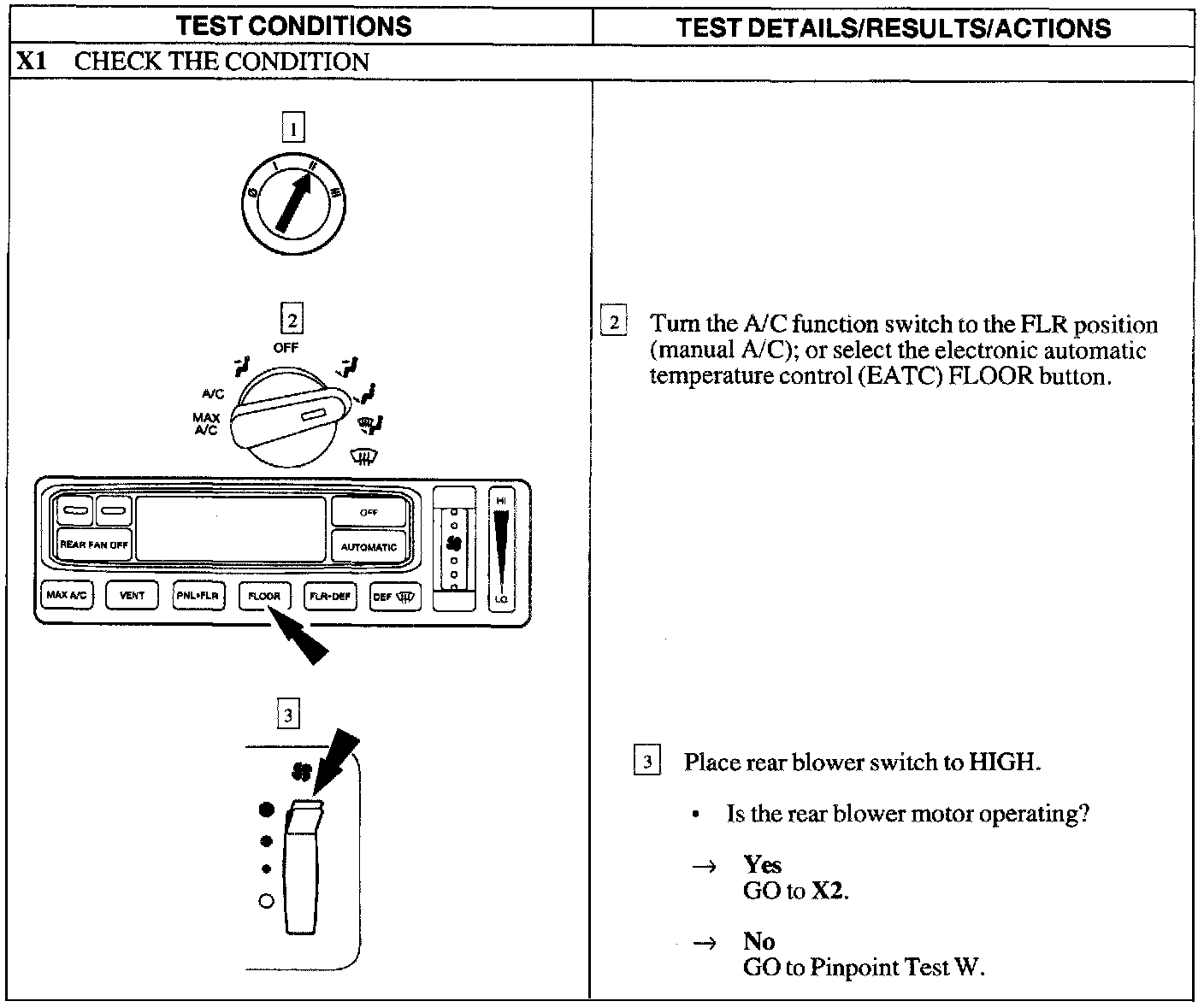

X1:

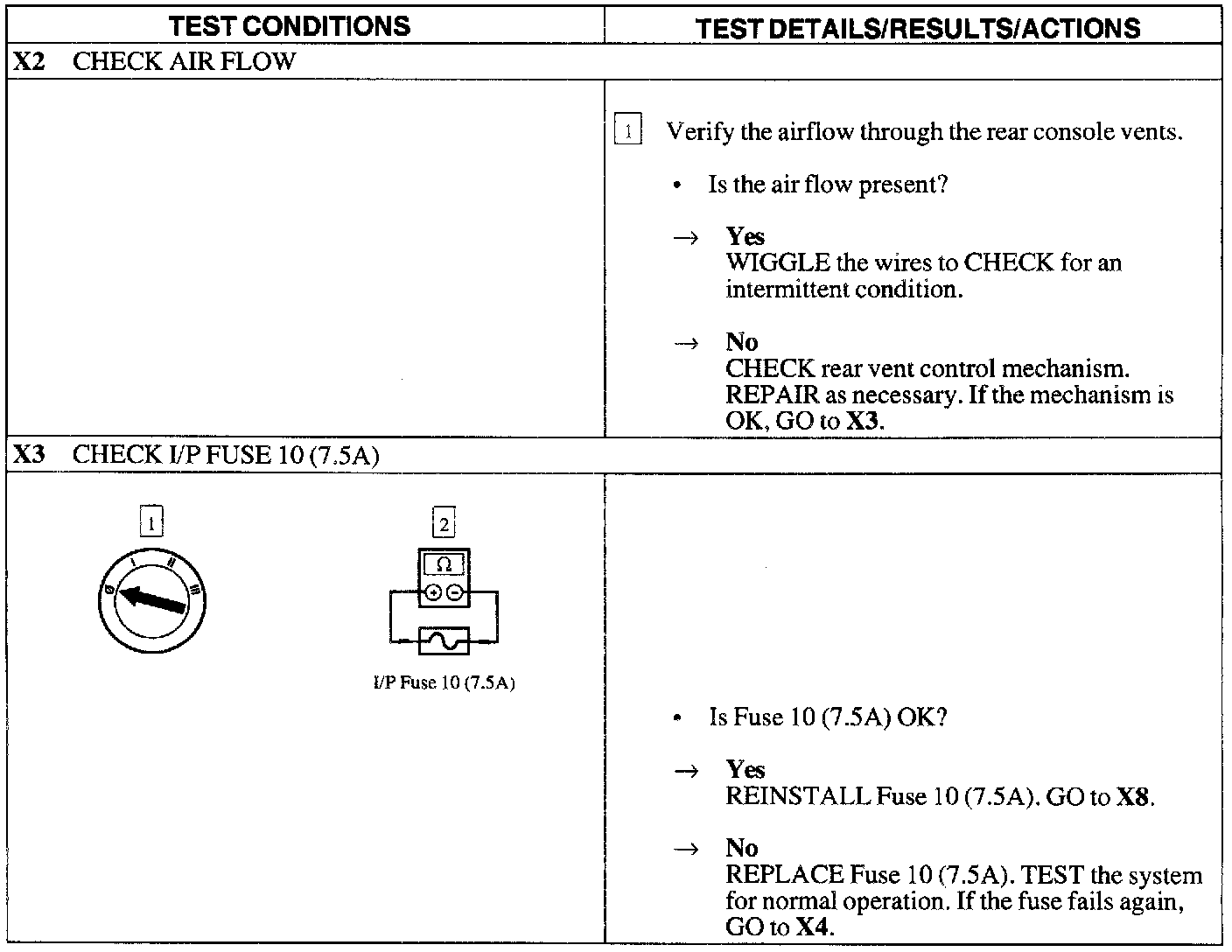

X2 - X3:

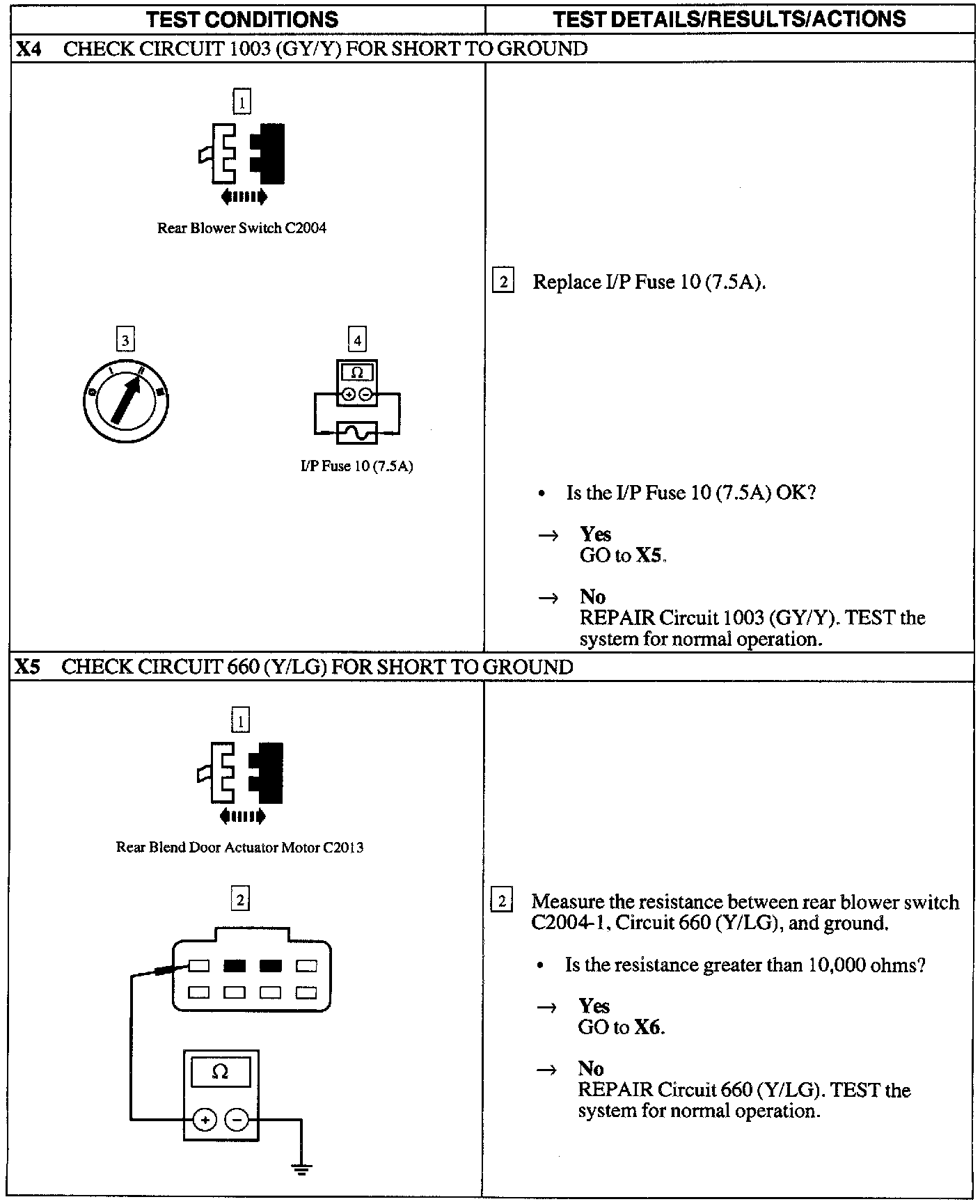

X4 - X5:

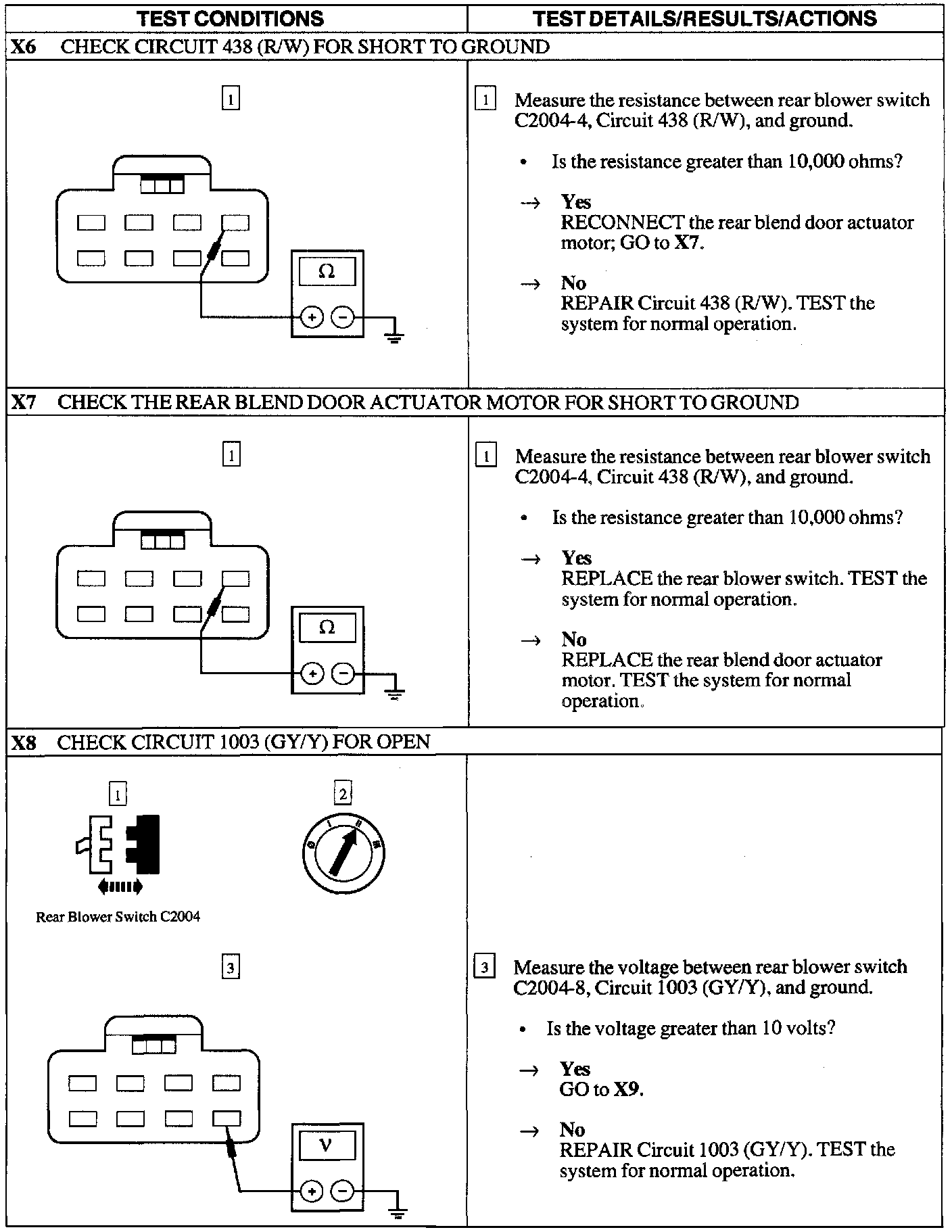

X6 - X8:

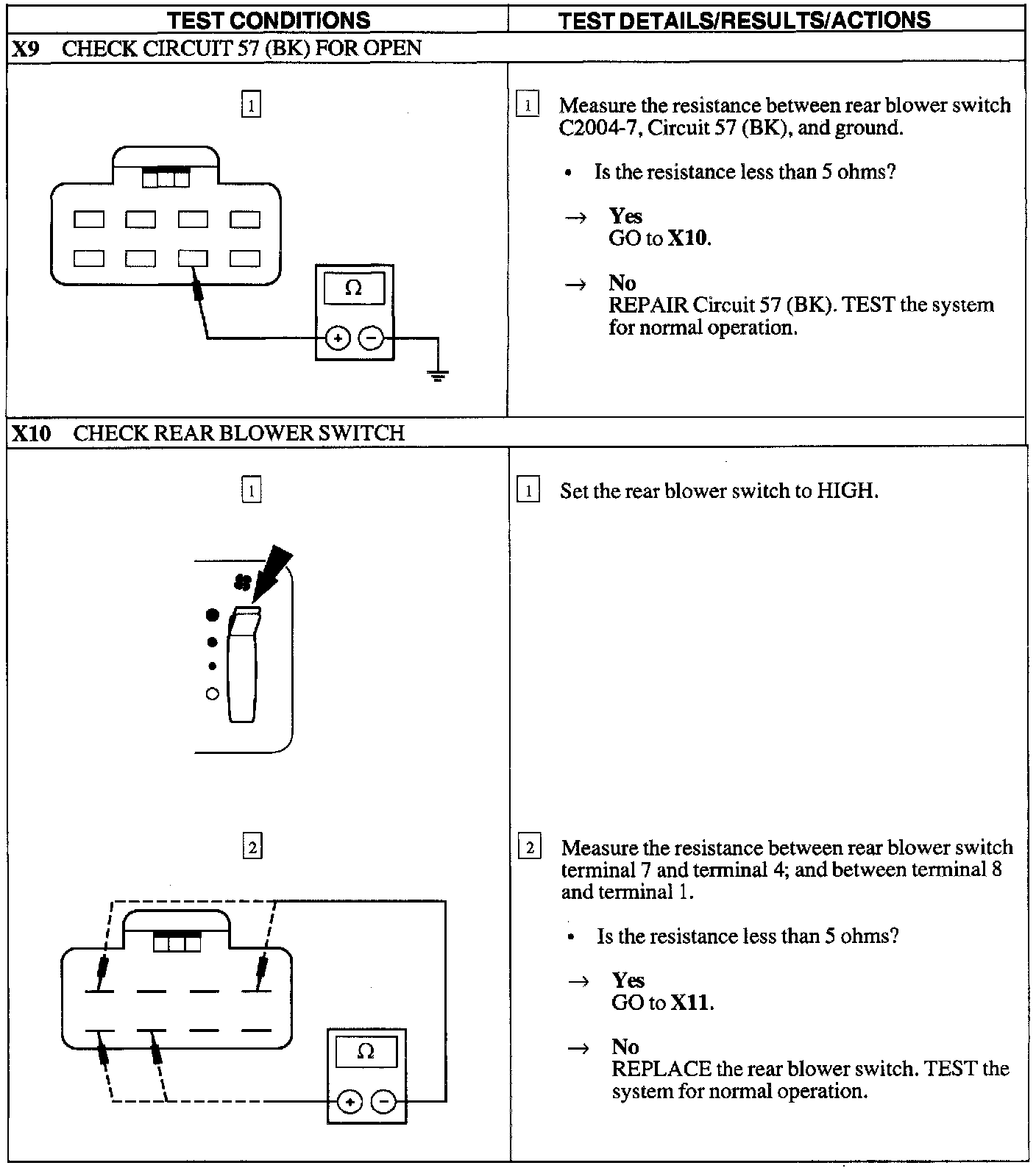

X9 - X10:

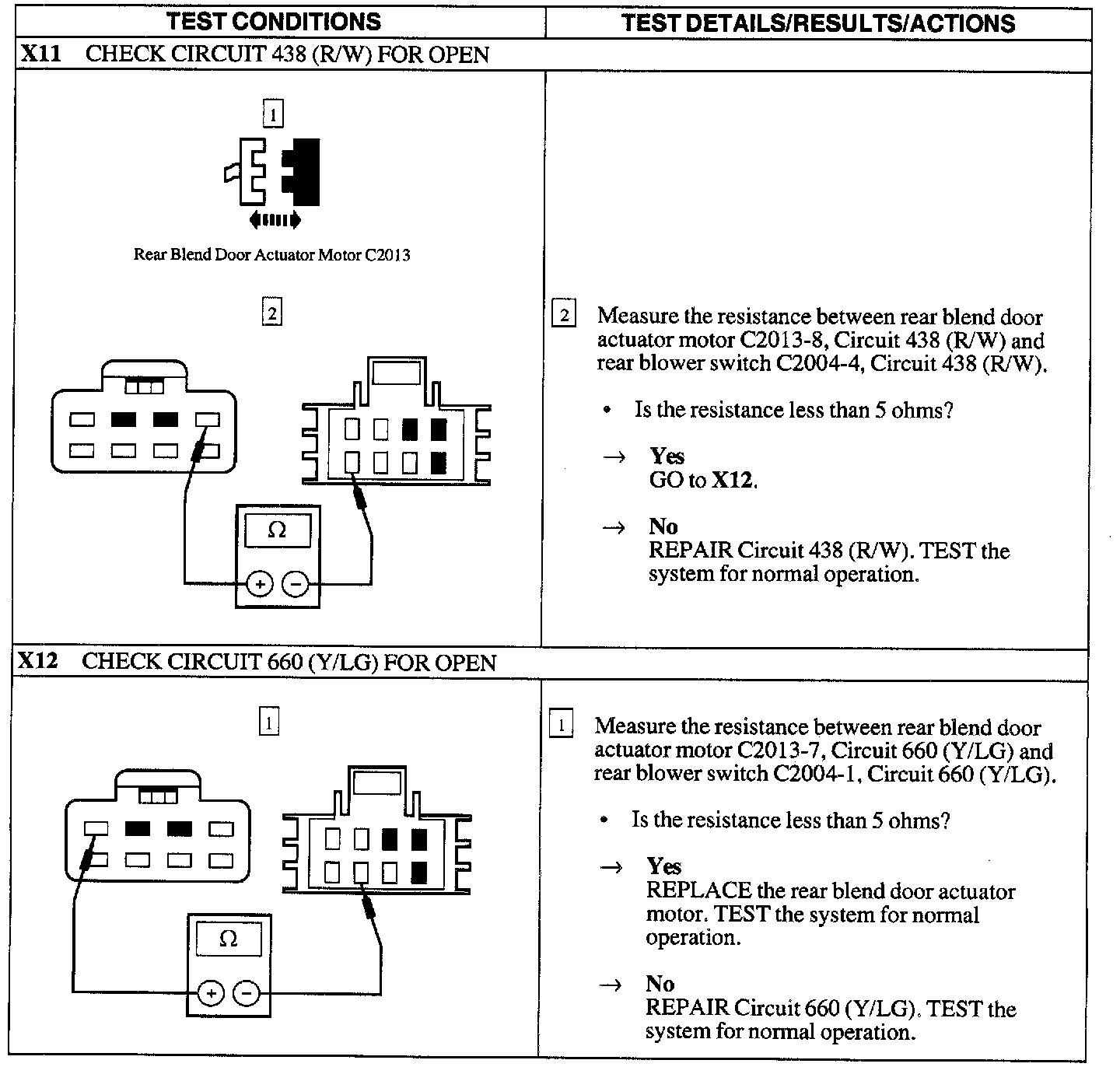

X11 - X12:
