Three Way Catalytic Converter

REMOVAL
1. Remove the muffler.

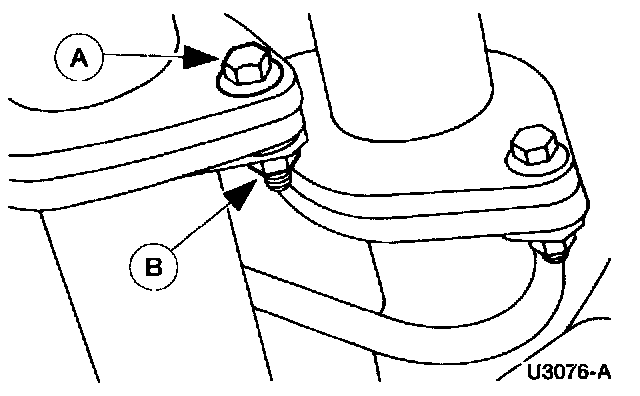

2. Remove the four (A) bolts and (B) nuts.

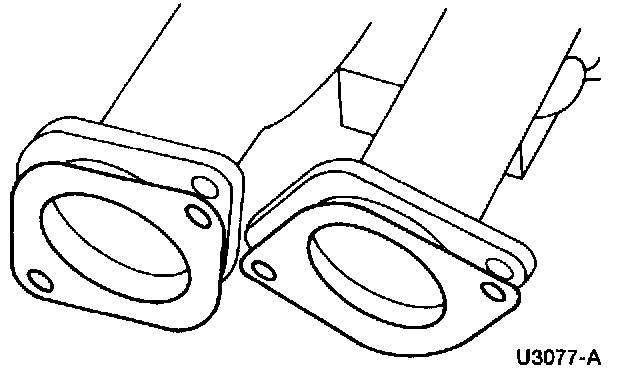

3. Remove the Three Way Catalytic Converter (TWC) and discard the two exhaust converter outlet gaskets.

INSTALLATION

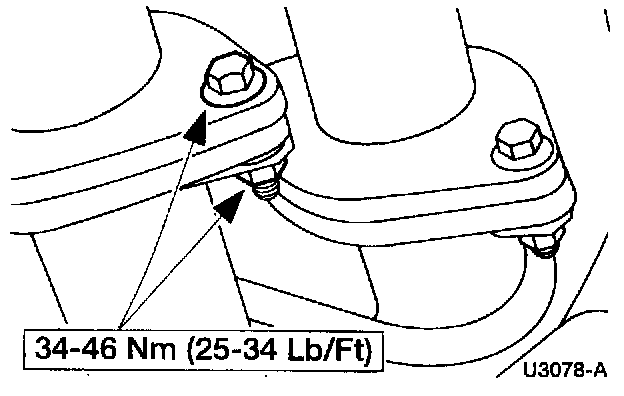

1. Follow the removal procedure in reverse order.

NOTE: Before installing the TWCs, install new gaskets.
