Inertia Fuel Shutoff Switch
>>
Locations
Inertia Fuel Shutoff Switch: Locations

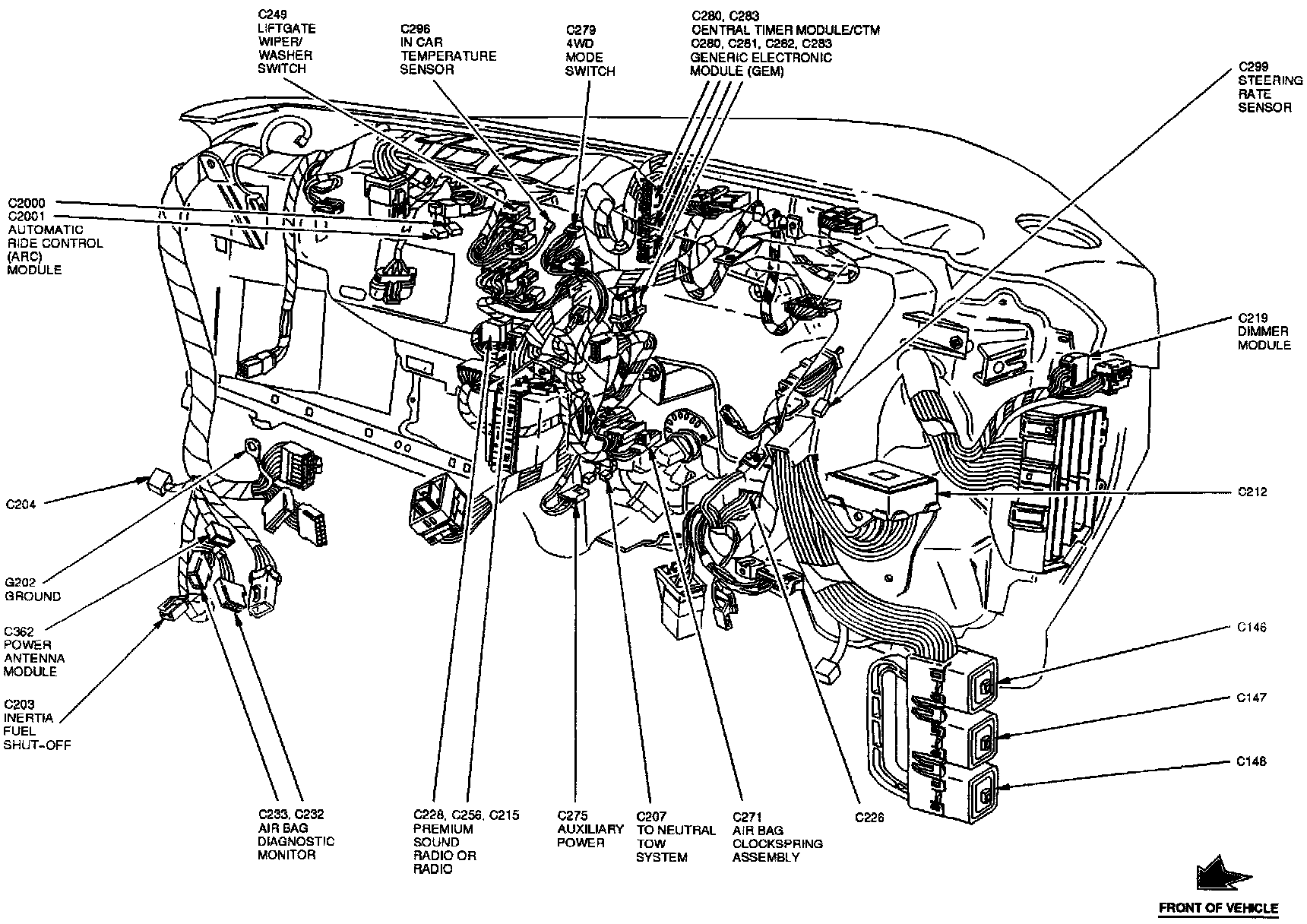

Behind Instrumental Panel View:
The Inertia Fuel Shutoff Switch C203 is located in the Dash, below the Radio.
