Home >> Ford >> 1998 >> Explorer 4WD V8-302 5.0L VIN P EFI >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> B

B

B1 - B2:

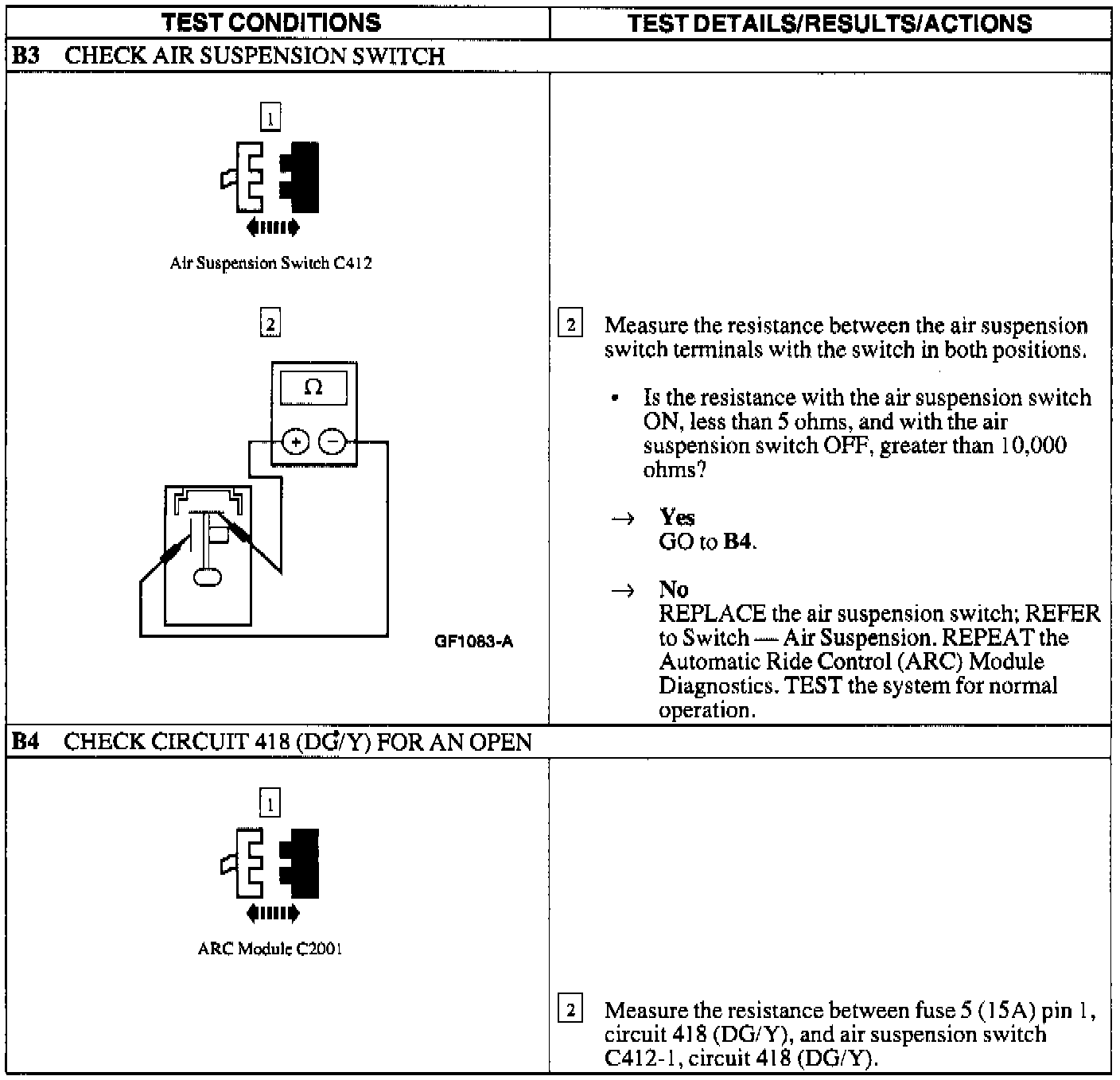

B3 - B4:



B4(cont.) - B5:

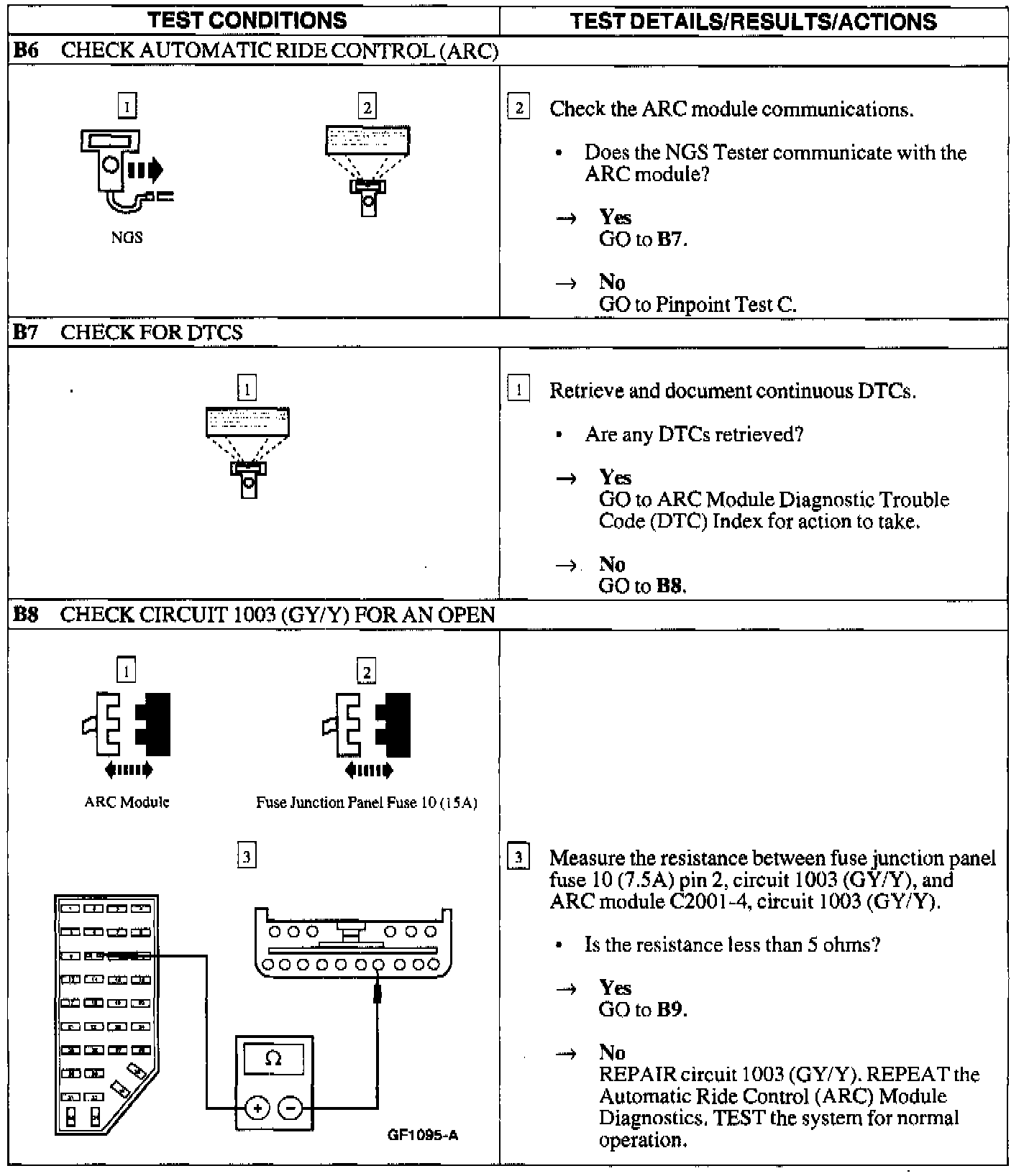

B6 - B8:

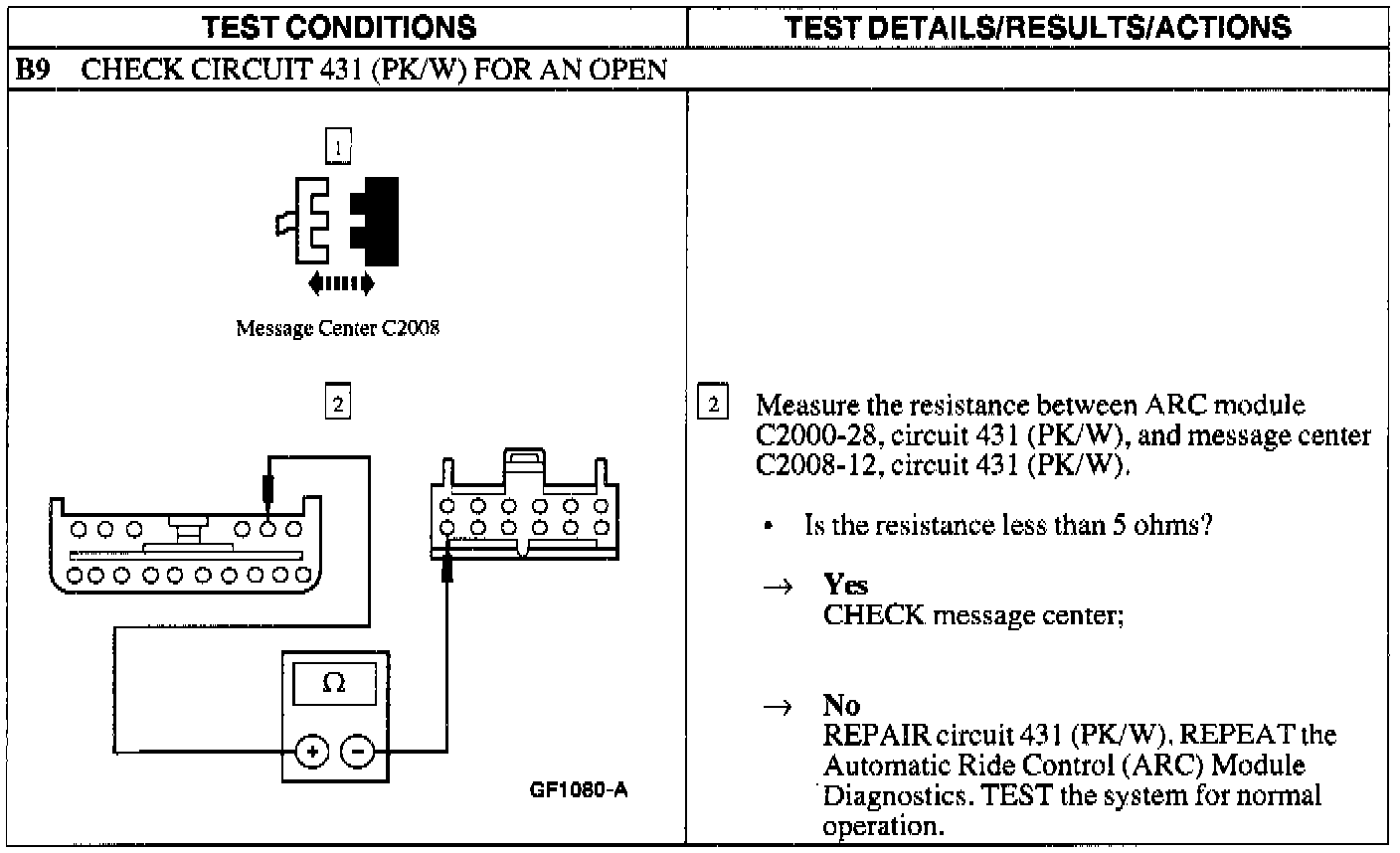

B9:
