H

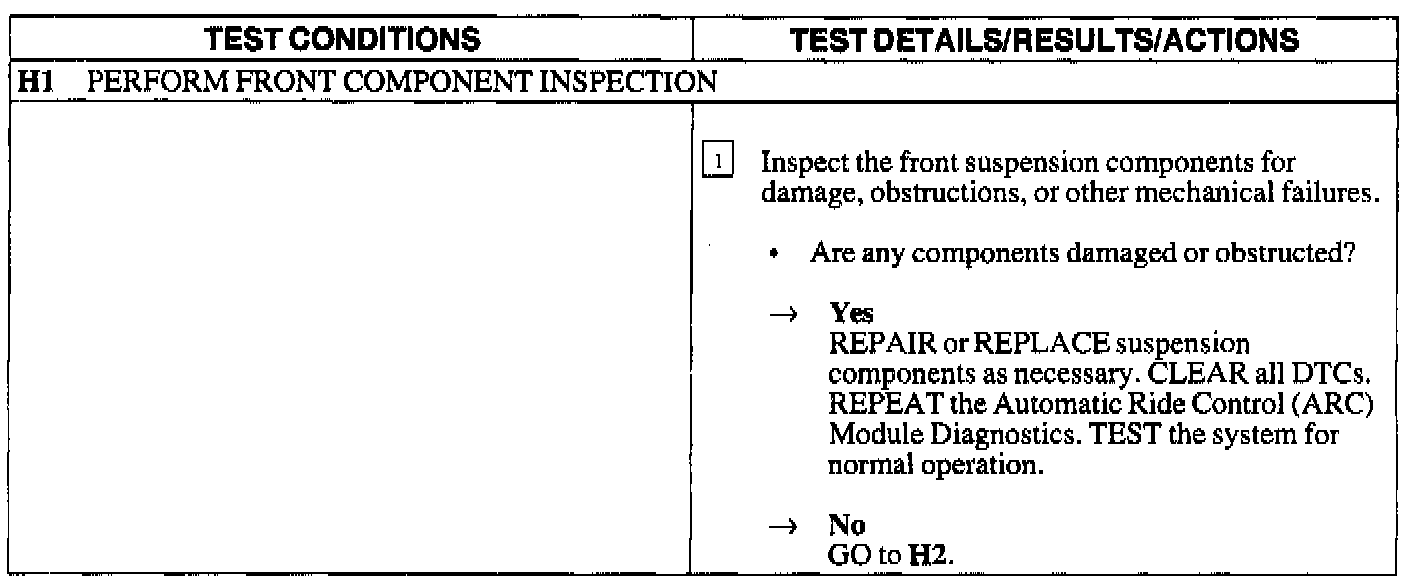

H1:

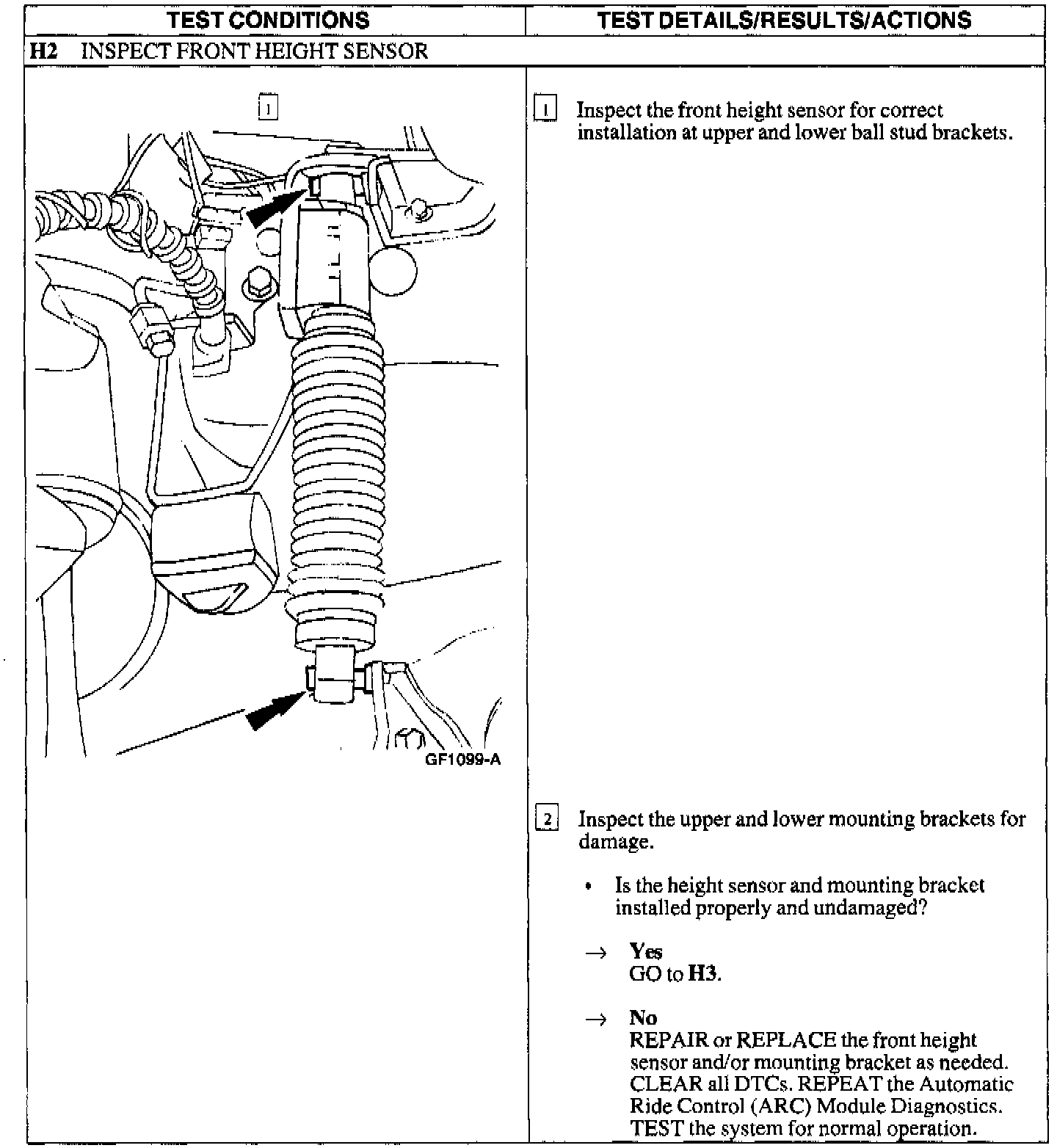

H2:

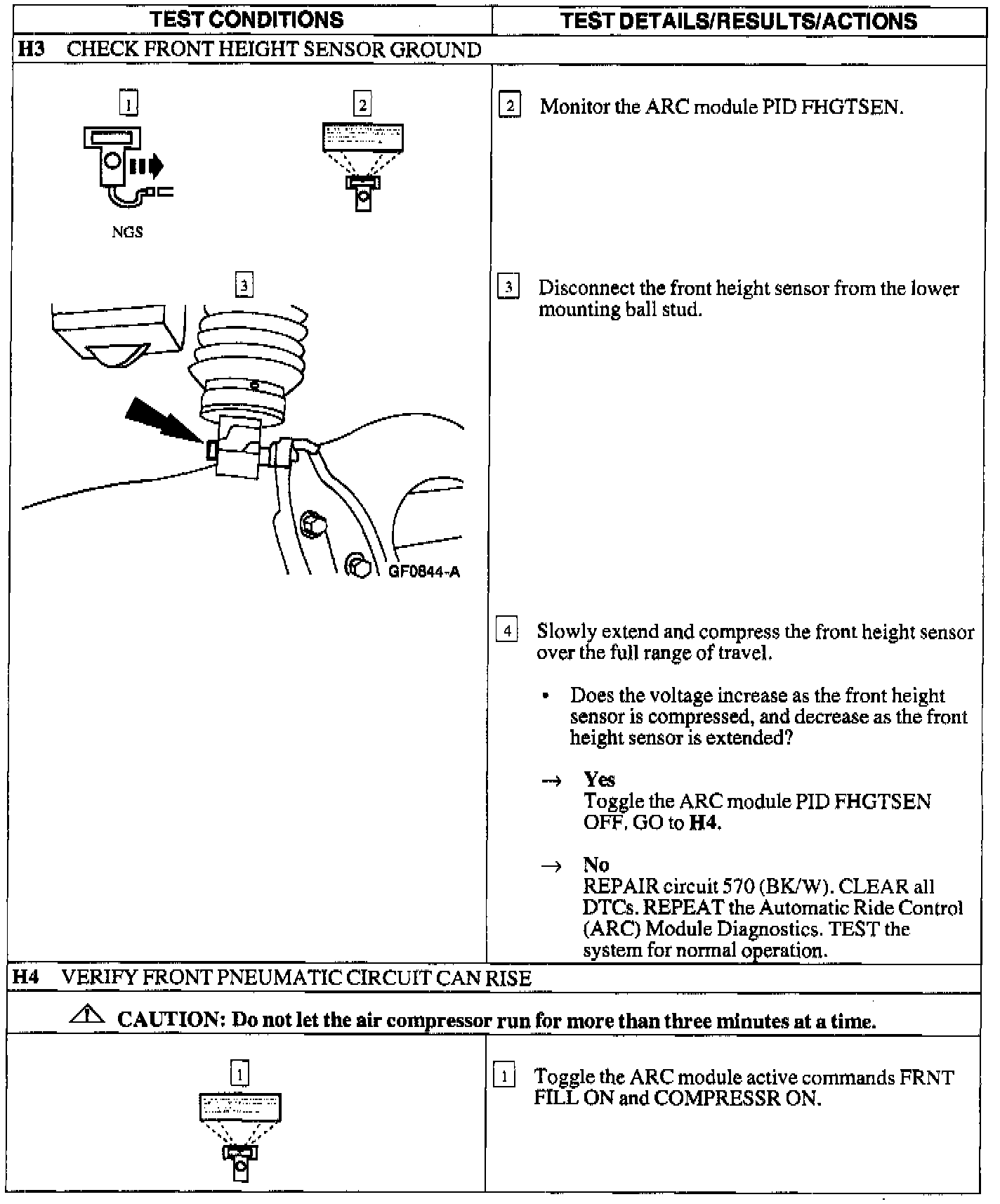

H3 - H4:

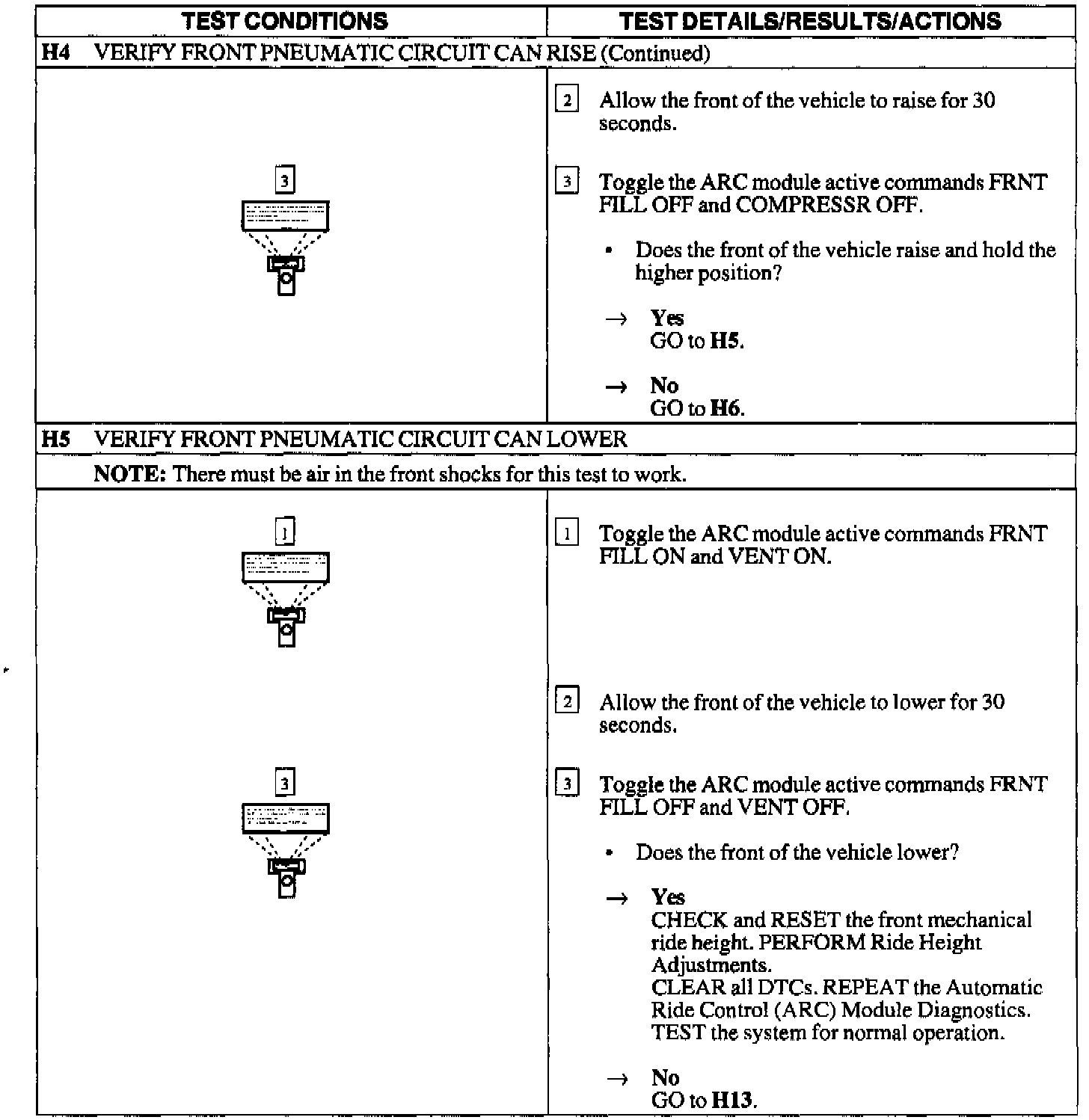

H4(cont.) - H5:

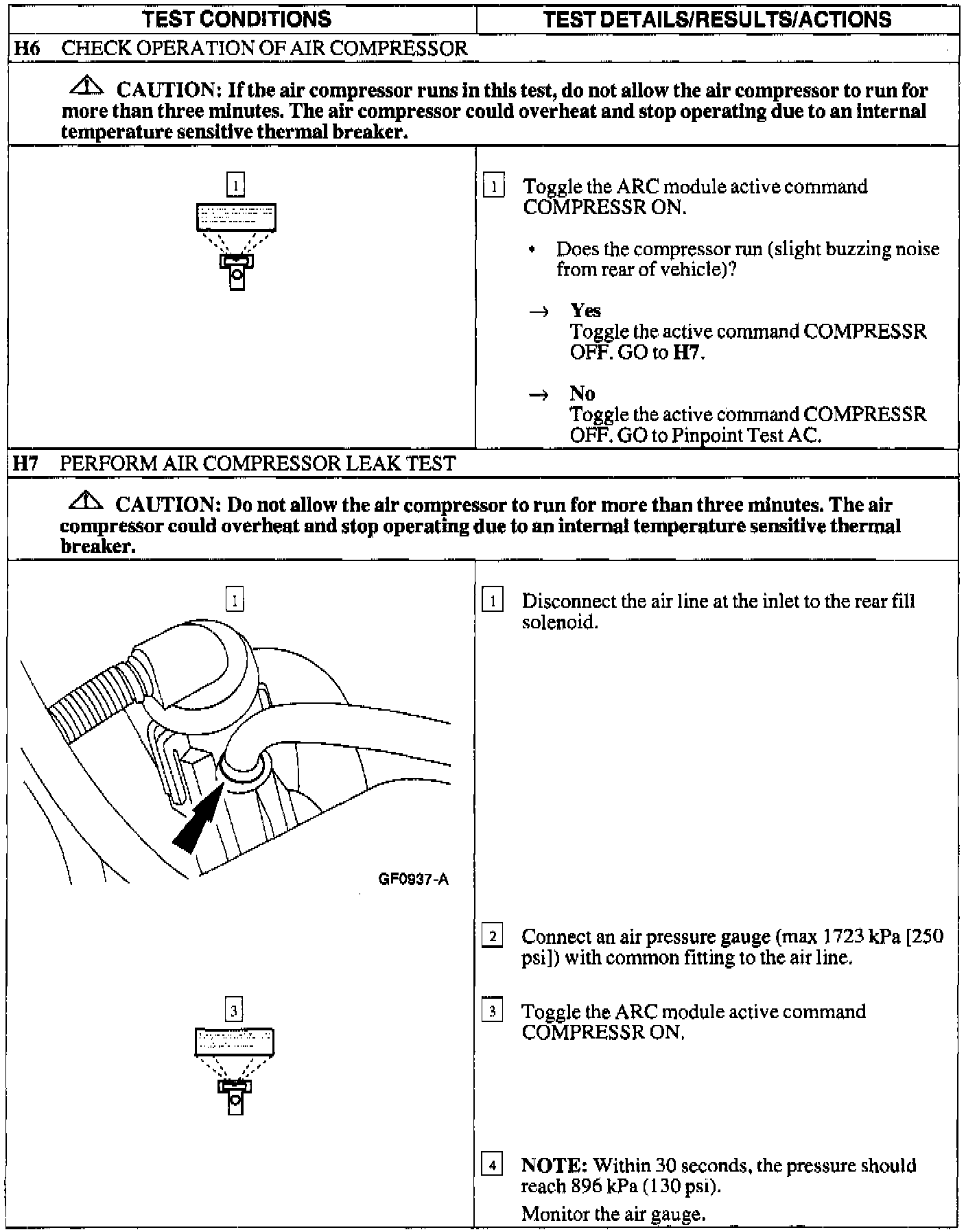

H6 - H7:

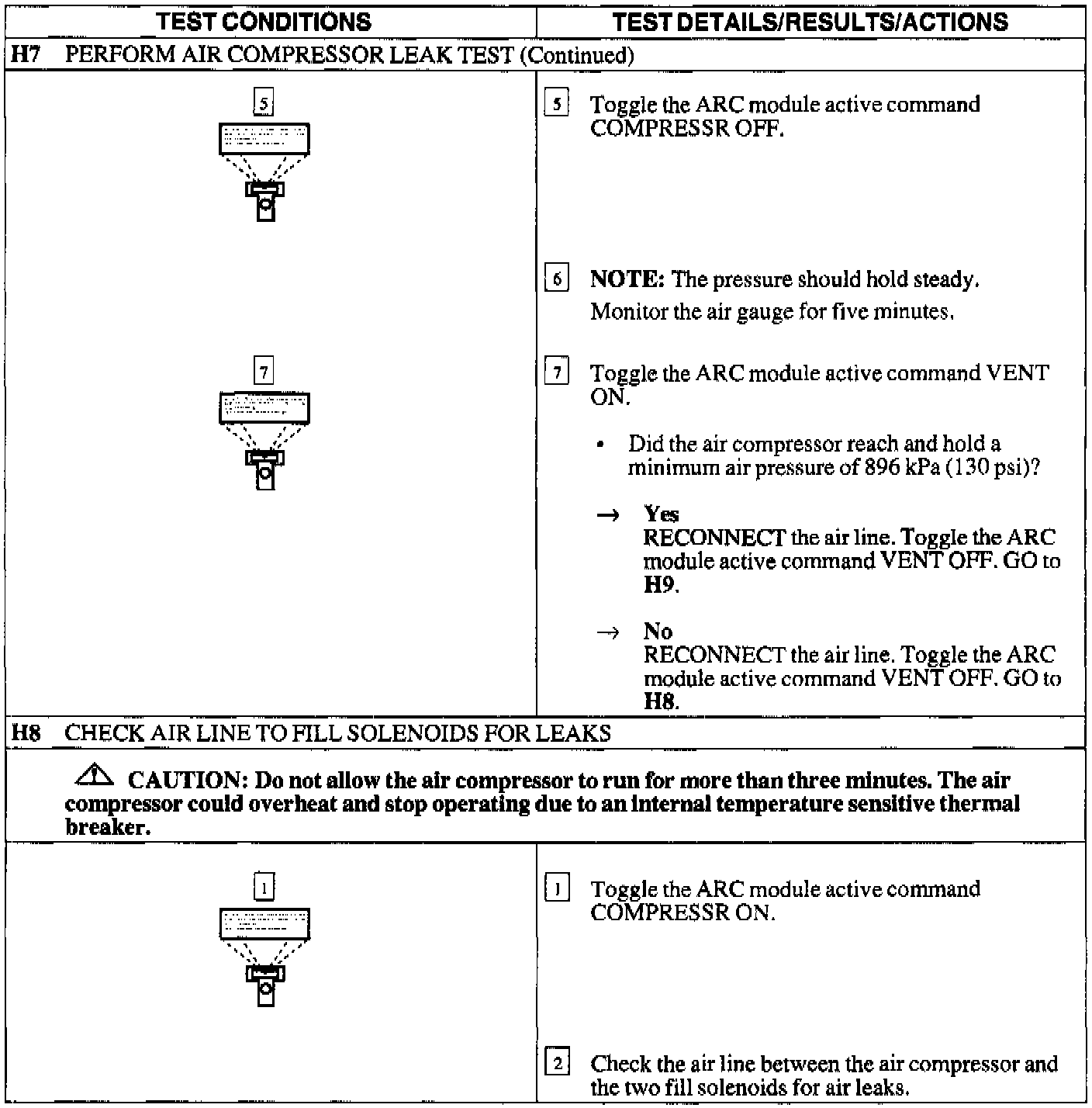

H7(cont.) - H8:

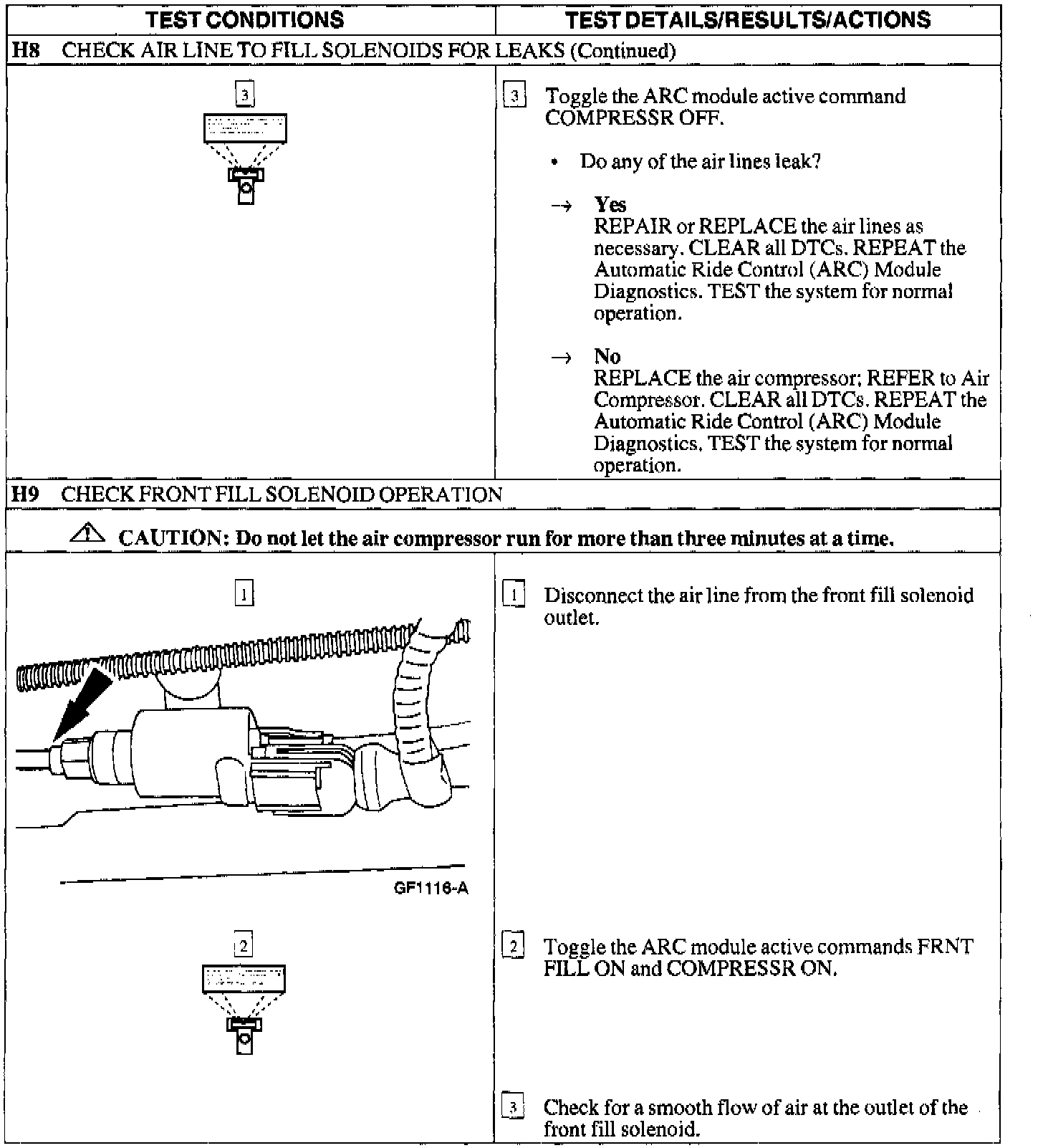

H8(cont.) - H9:

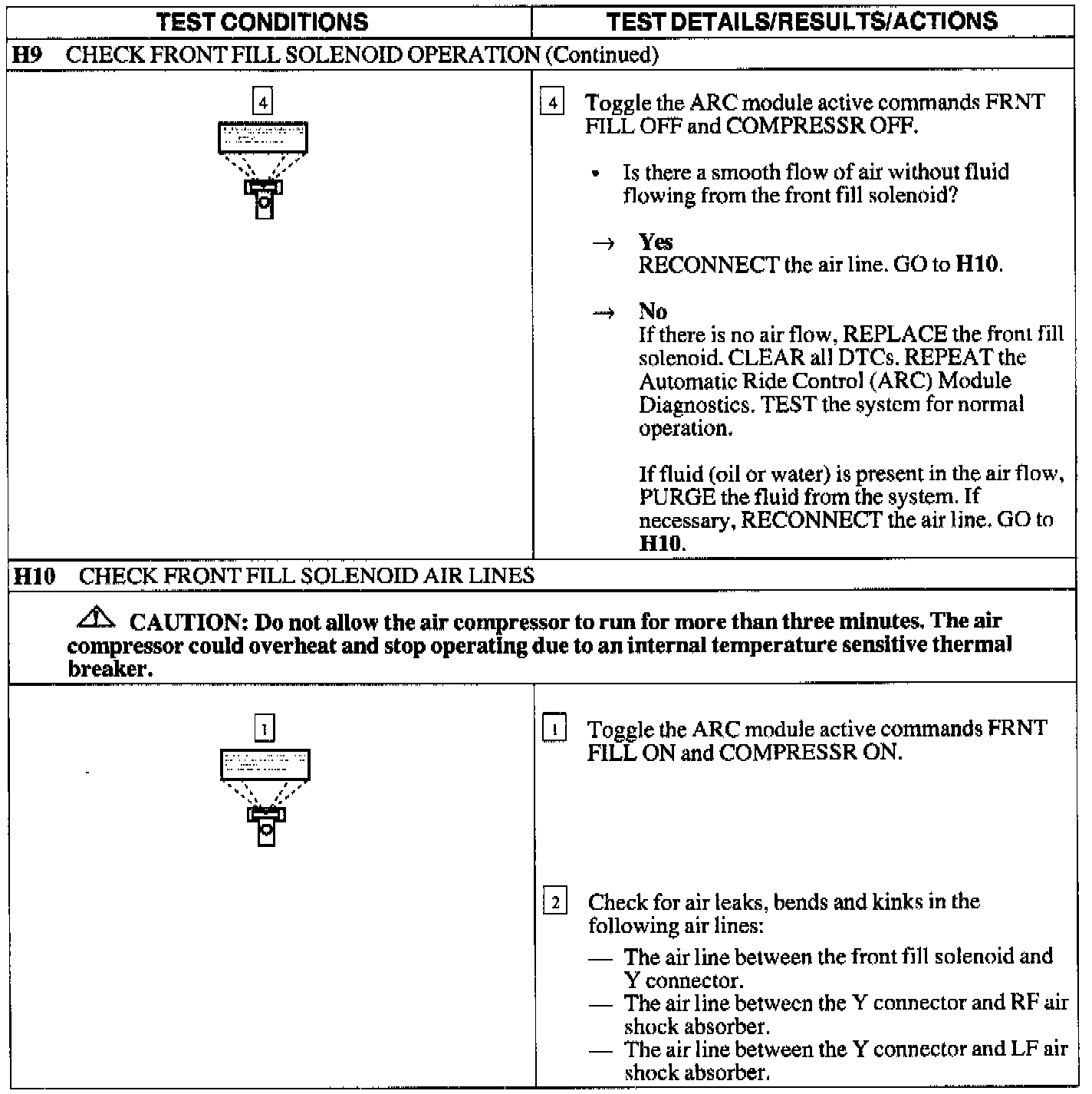

H9(cont.) - H10:

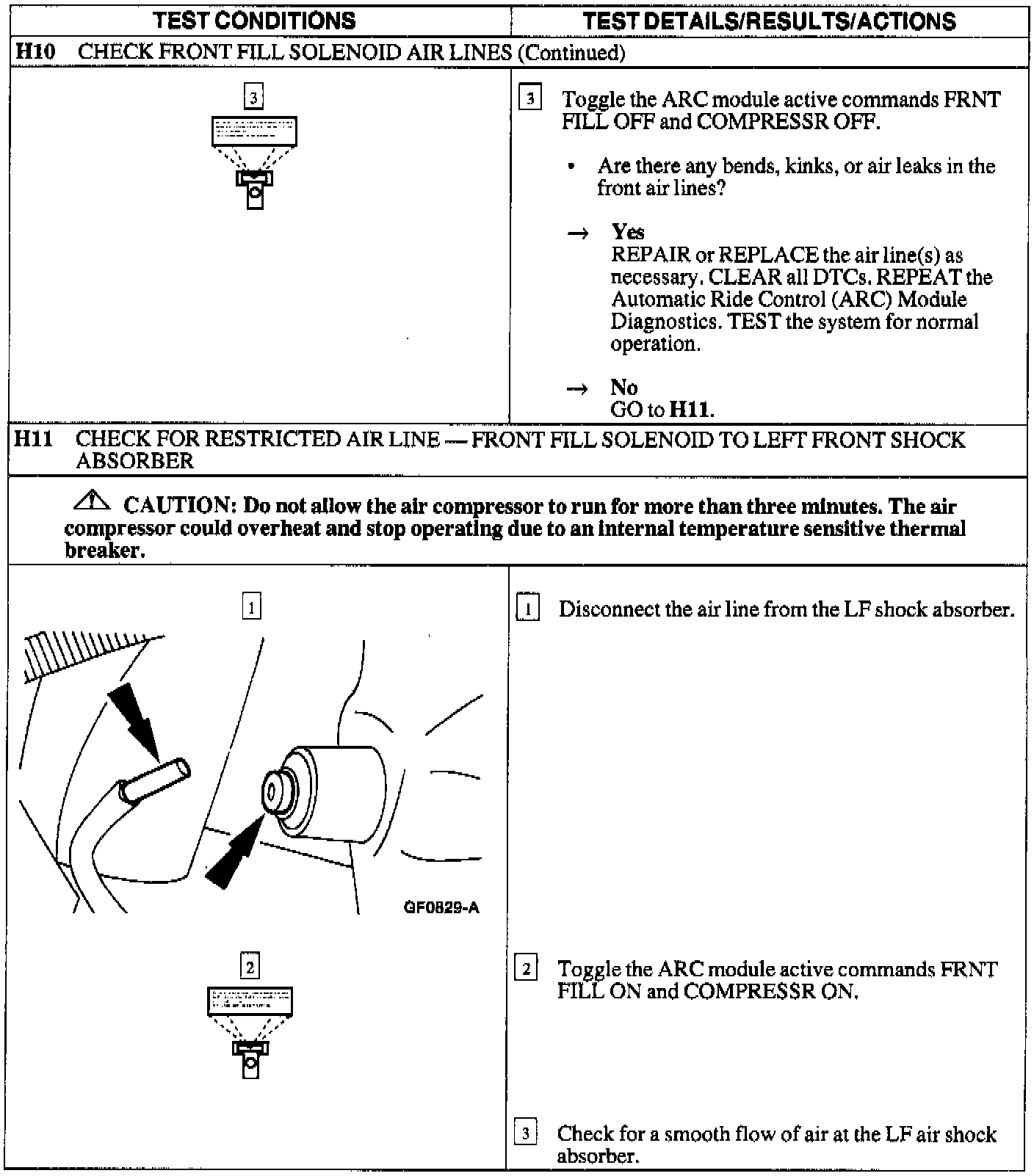

H10(cont.) - H11:

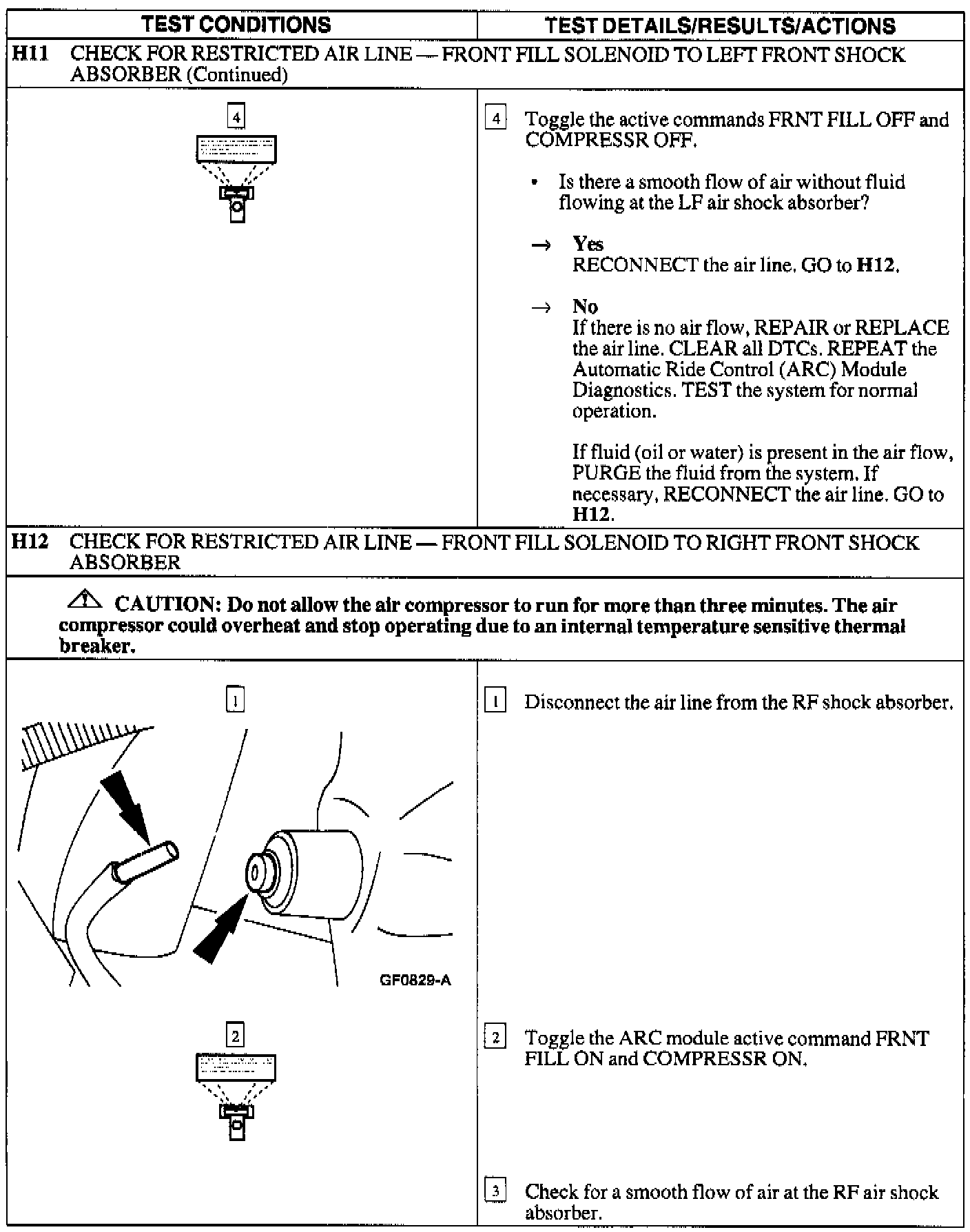

H11(cont.) - H12:

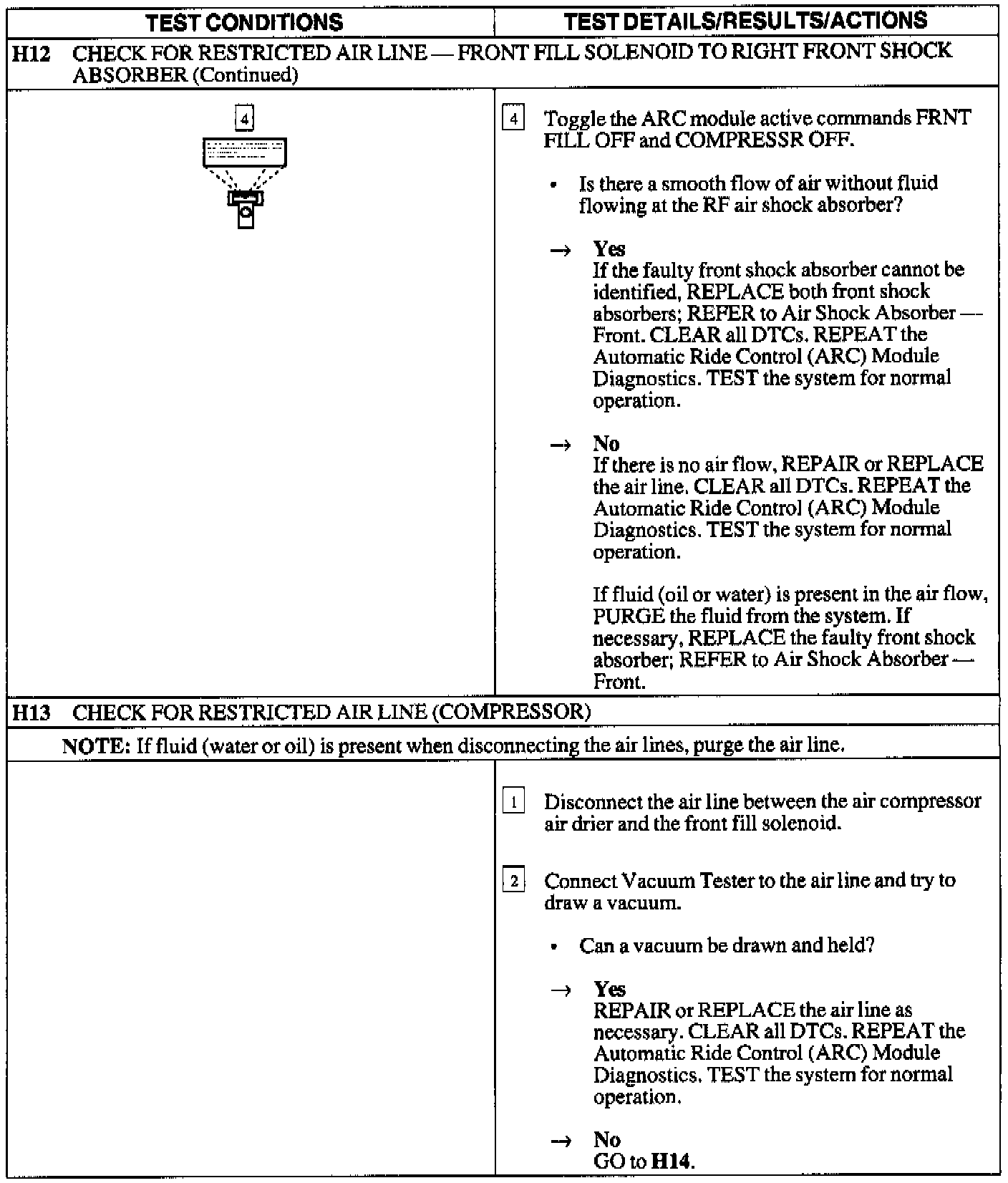

H12(cont.) - H13:

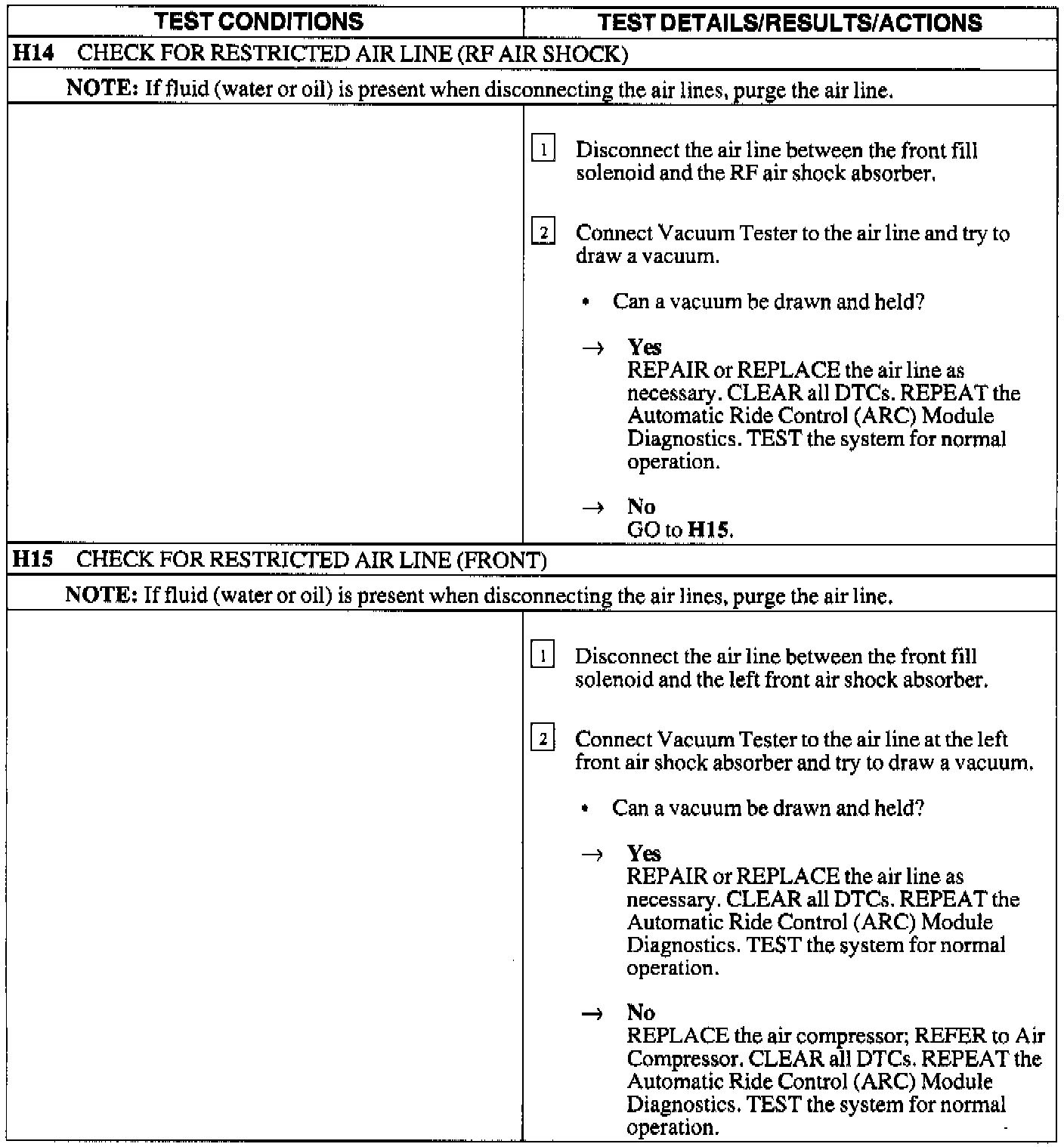

H14 - H15:
