Home >> Ford >> 1998 >> Explorer 4WD V8-302 5.0L VIN P EFI >> Repair and Diagnosis >> Windows and Glass >> Relays and Modules - Windows and Glass >> Power Window Relay >> Diagrams >> Electrical Diagrams >> 2 Door

2 Door

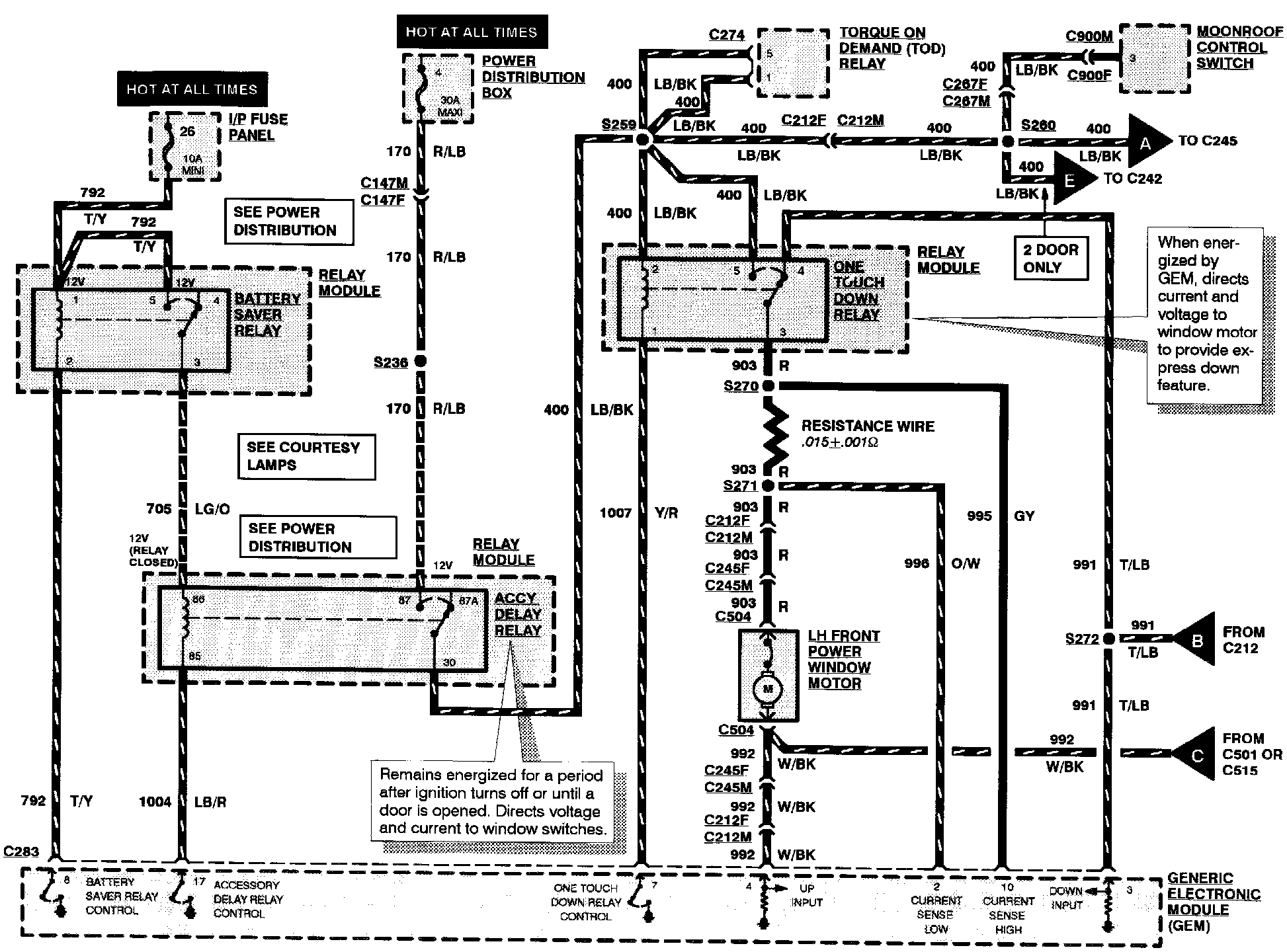

Power Windows:

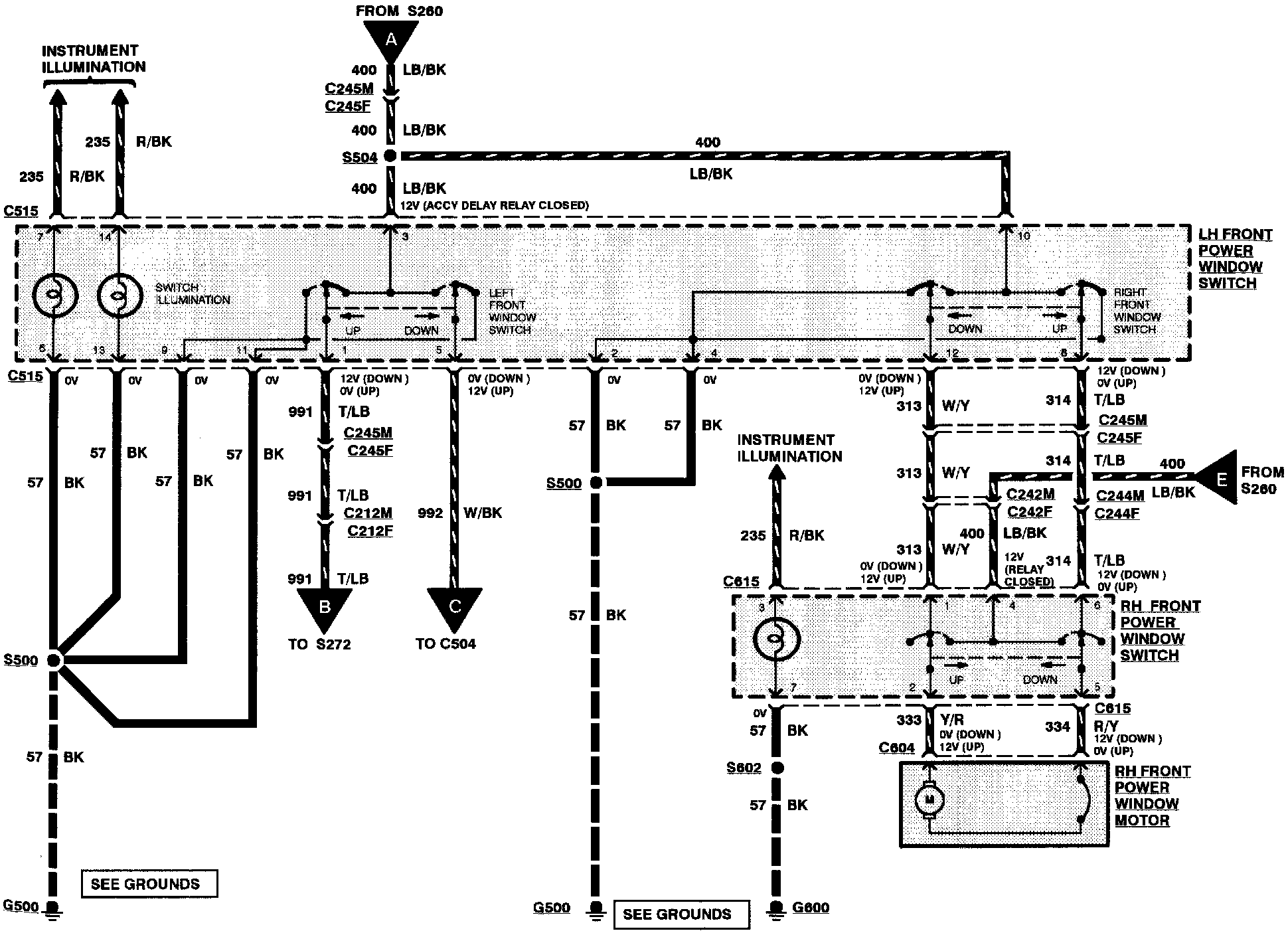

Power Windows (2 Door):
