Cruise Control Servo Cable: Service and Repair

REMOVAL







1. Remove the accelerator control splash shield.
1. Remove the bolts.
2. Remove the splash shield.

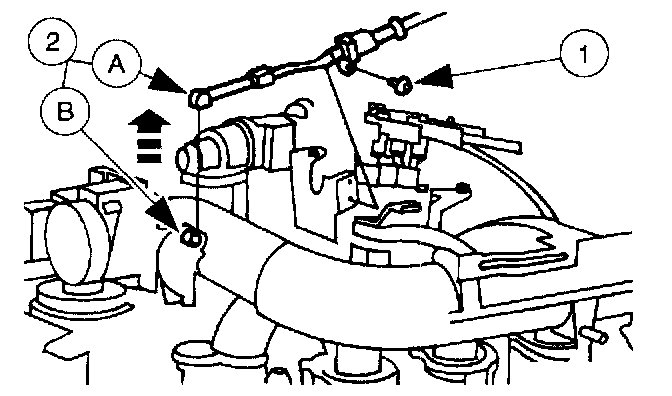

2. Disconnect the speed control actuator cable.
1. Remove the bolt.
2. Disconnect the (A) speed control actuator cable from the (B) throttle body cam and position aside.







3. Remove the speed control actuator cable cap from the speed control servo.
- Push in the locking arm on the speed control actuator cable cap then rotate the cap counterclockwise.







4. Disconnect the speed control core wire end from the speed control servo pulley.
1. Depress the spring retainer.
2. Slide the core wire end out of the speed control servo pulley.












INSTALLATION
1. To install, reverse the removal procedure.
- Adjust the speed control actuator cable. Adjustments
