Electronic Brake Control Module
>>
Rear Antilock Brake System Module
Rear Antilock Brake System Module

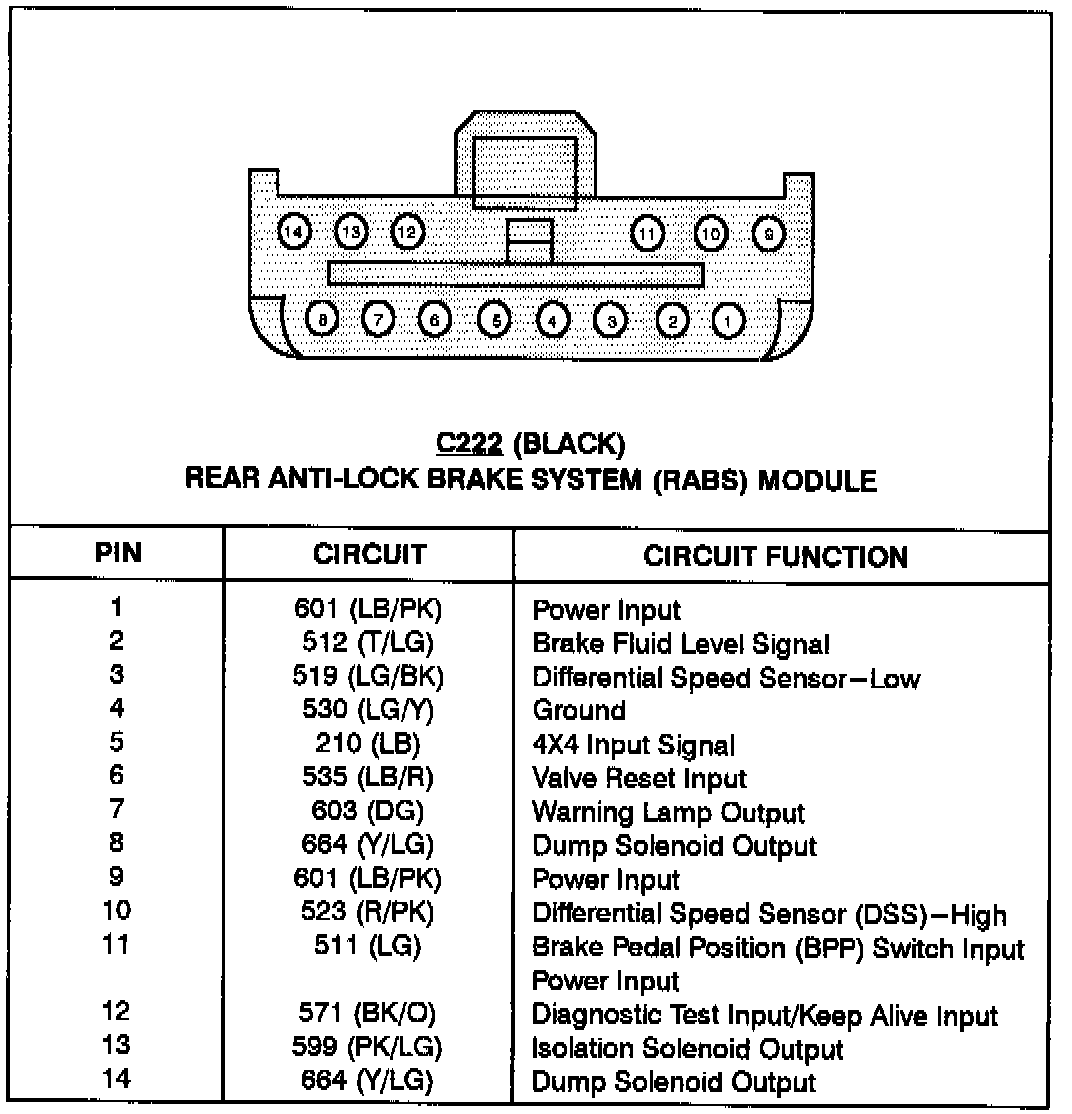

Rear Anti-Lock Brake System Module:
