Knock Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

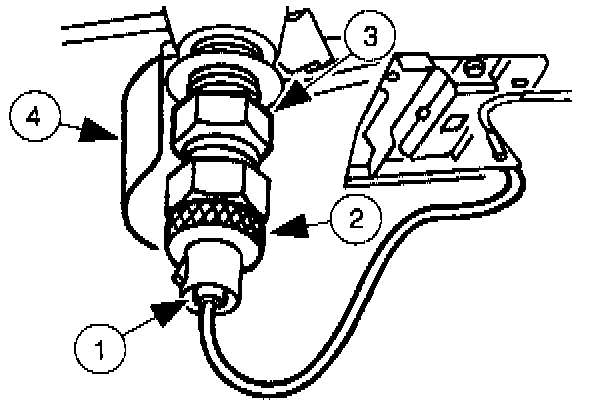

2. Remove the Knock Sensor (KS).
1. Disconnect the connector.
2. Remove the knock sensor.
3. Remove the adapter.
4. Remove the heat shield.












INSTALLATION

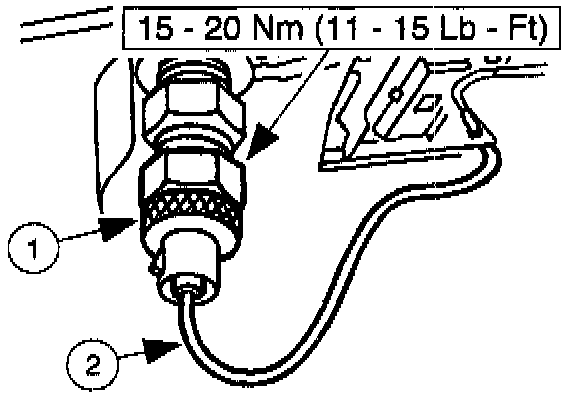

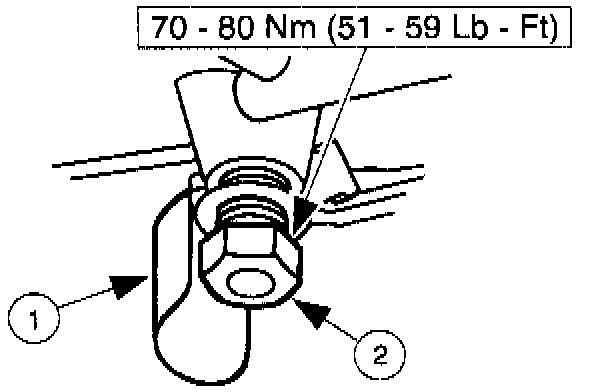

1. Follow the removal procedure in reverse order.
