Transmission Connector Layouts

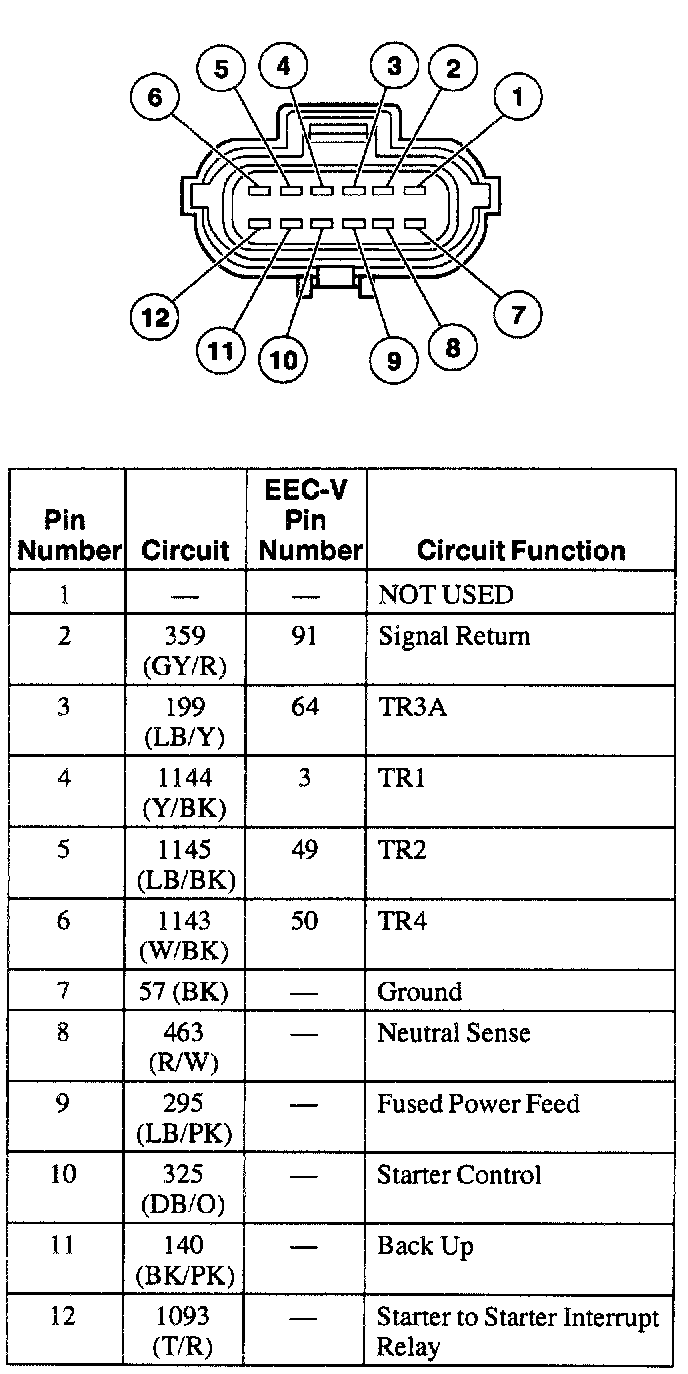

Transmission Vehicle Harness Connector, Part 1 Of 2:

Transmission Vehicle Harness Connector, Part 2 Of 2:

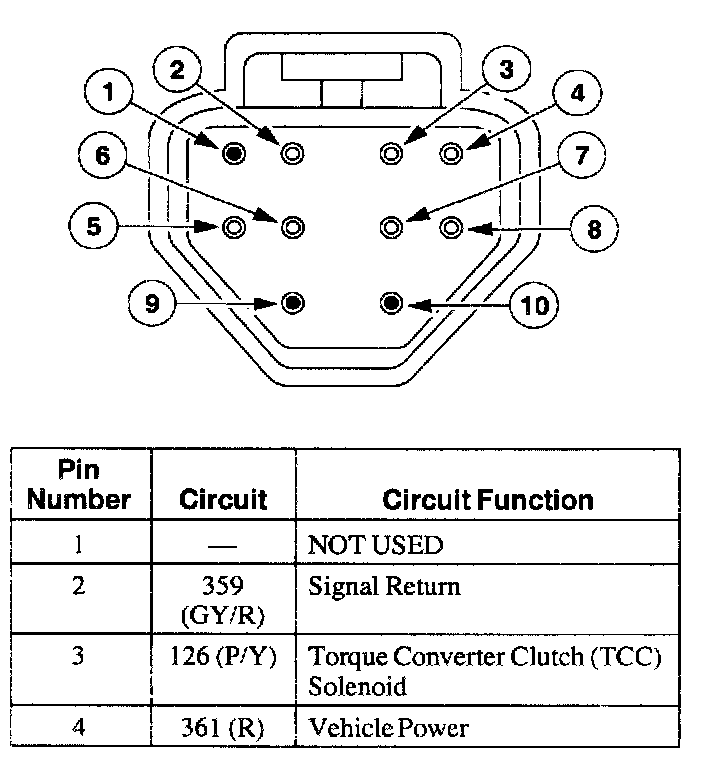

Transmission Internal Harness, Part 1 Of 2:

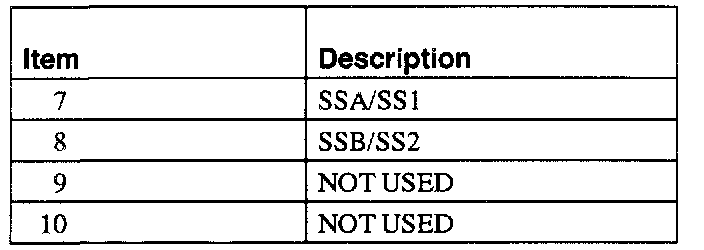

Transmission Internal Harness, Part 2 Of 2:

Digital Transmission Range (TR) Sensor Connector:

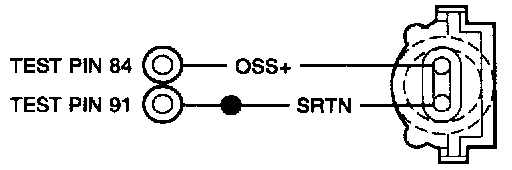

Output Shaft Speed Sensor (OSS) Harness Connector:
