Front Door Window Regulator: Service and Repair

Heavy Duty Riverter:

Special Tool(s)



REMOVAL
1. Remove the front door trim panel.
2. Peel back the front door watershield.

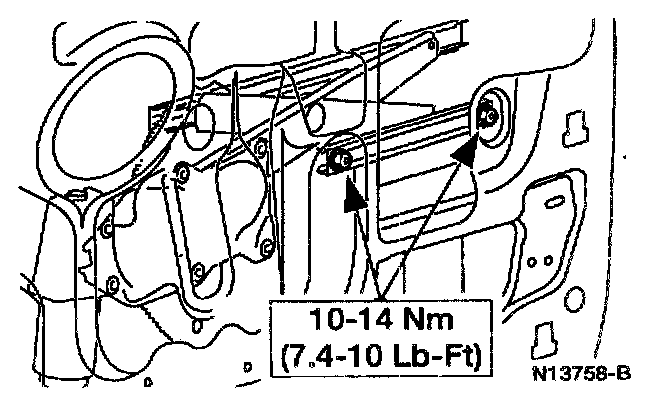

3. Lower the front door window glass to access the two window regulator nuts.







4. Remove the window glass nuts.
5. Support the front door window glass in the full up position.







6. If equipped, disconnect the power window electrical connector.

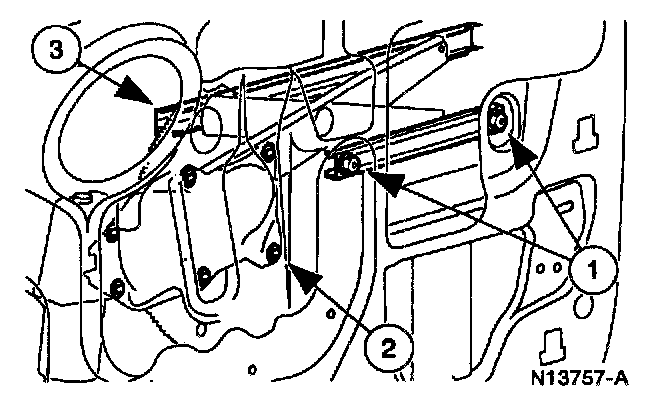

7. Remove the window regulator.
1 Remove the nuts.
2 Drill out the rivets.
3 Remove the window regulator.

INSTALLATION






1. To install, reverse the removal procedure.
- Use Heavy Duty Riveter to install the new rivets.
