Home >> Ford >> 1998 >> F 150 2WD Pickup V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Component Tests and General Diagnostics >> With Manual Headlamps >> Pinpoint Tests >> B Low Beams Are Inoperative

B Low Beams Are Inoperative

B1:

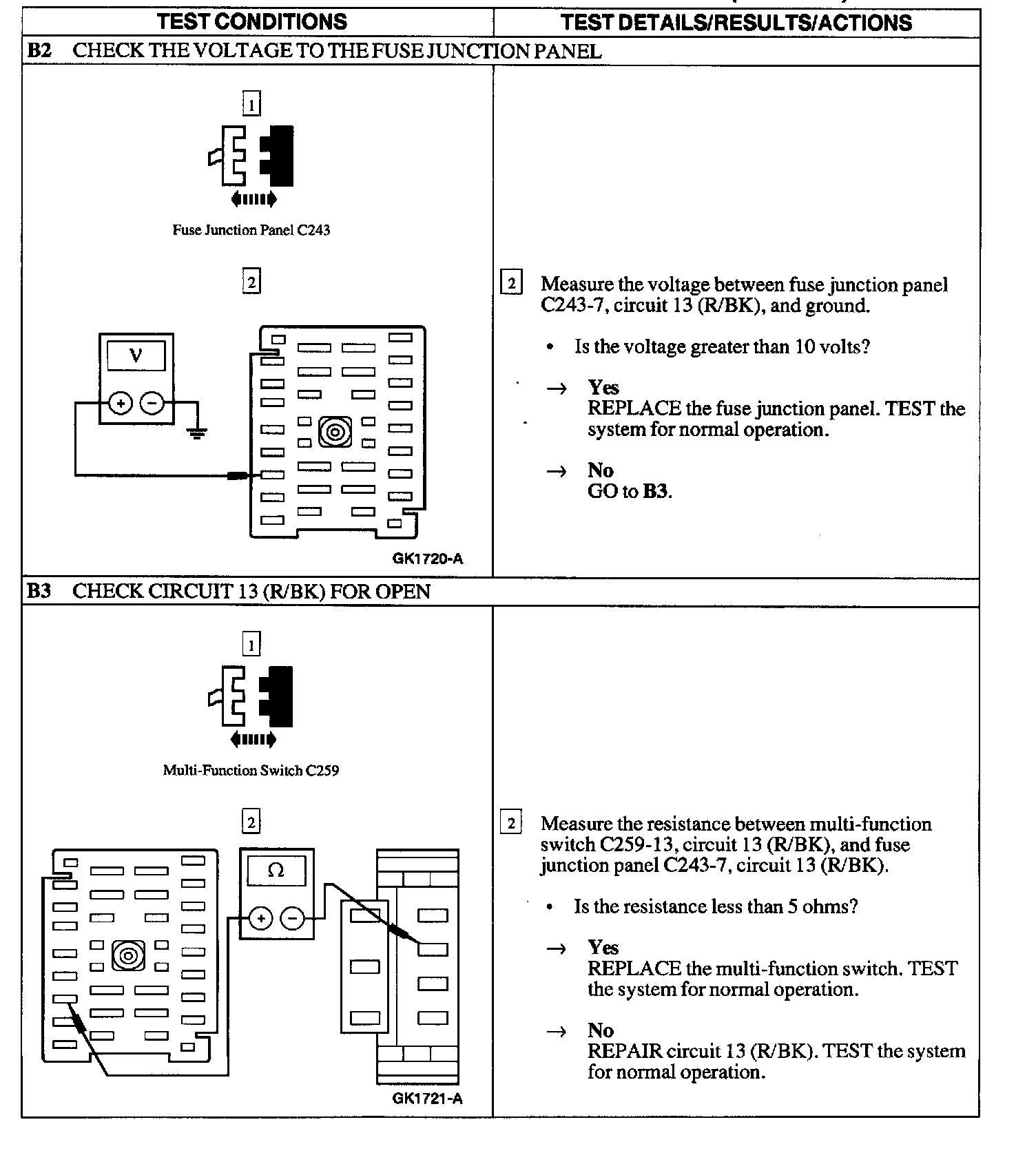

B2 - B3:
