F 150 2WD Pickup V8-5.4L SOHC VIN L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
B: Engine Does Not Crank and the Relay Does Not Click
B: Engine Does Not Crank and the Relay Does Not Click
B1 - B3:
B4 - B5:

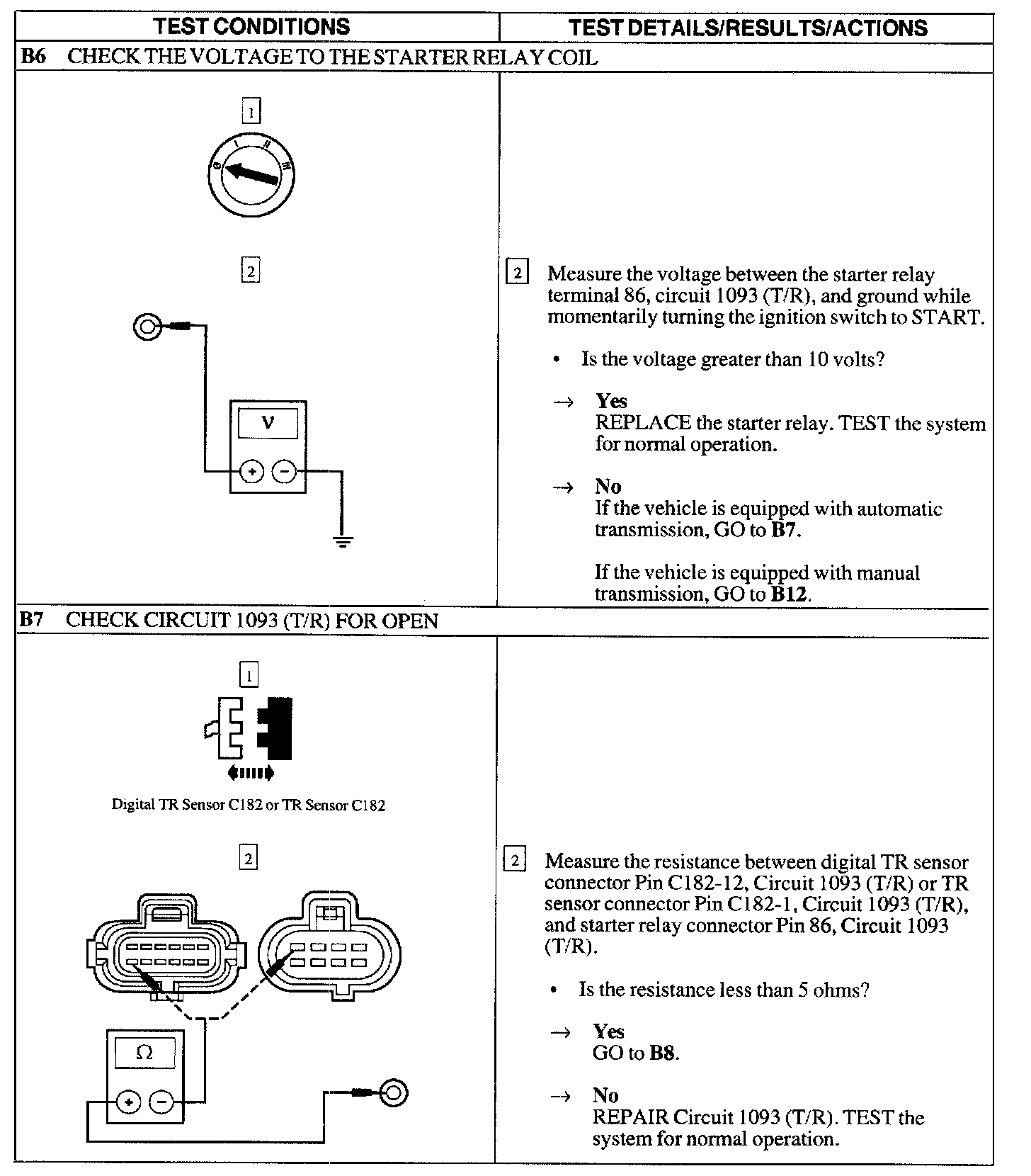

B6 - B7:

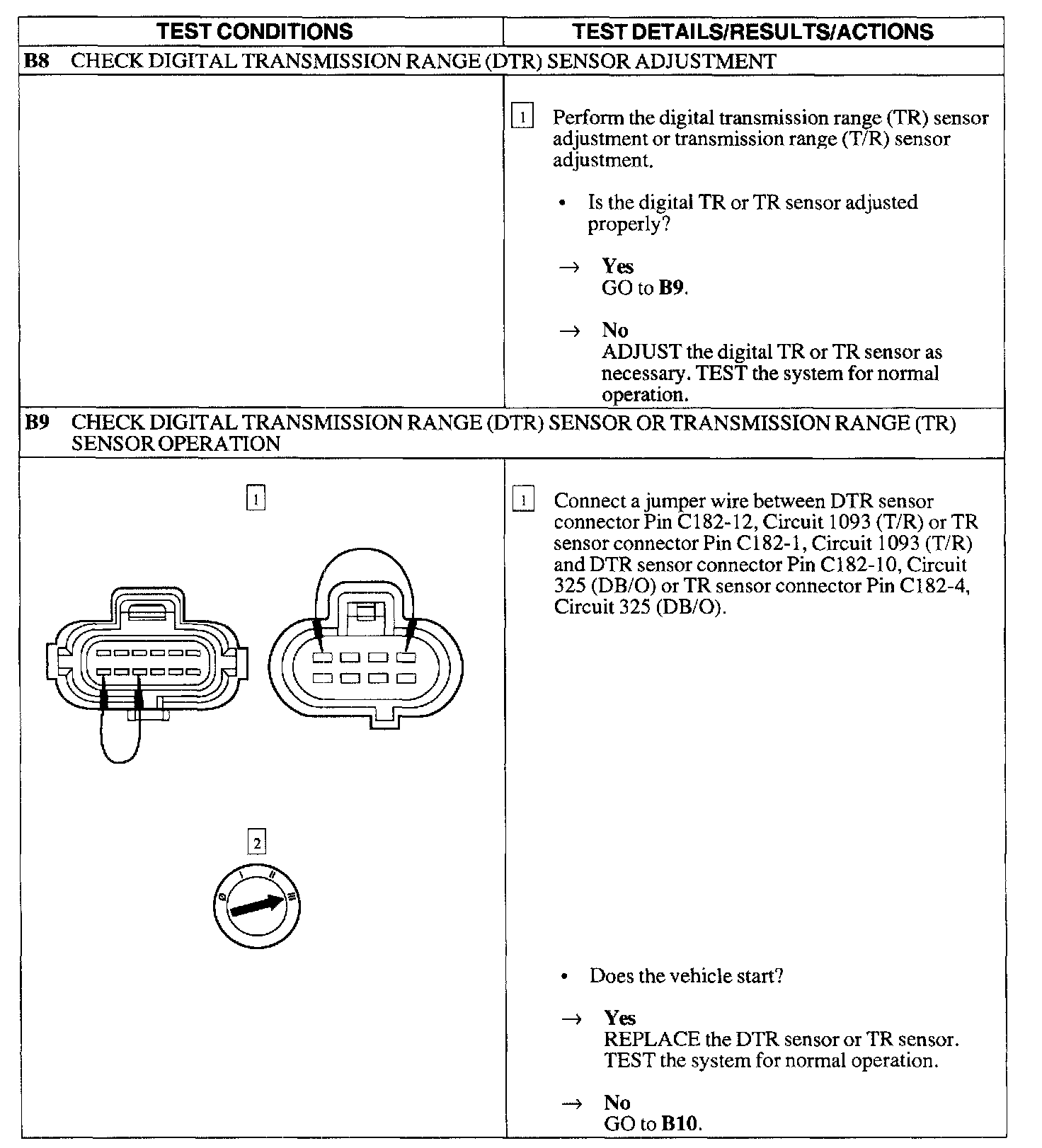

B8 - B9:
B10 - B11:
B12 - B13:
B14:
B15 - B16:
B17 - B18:
B19 - B20:
B21 - B22:
B23 - B24:
B25 - B26:
B27 - B28:
B29 - B30:
B31 - B32:
