Disassembly And Assembly

DISASSEMBLY

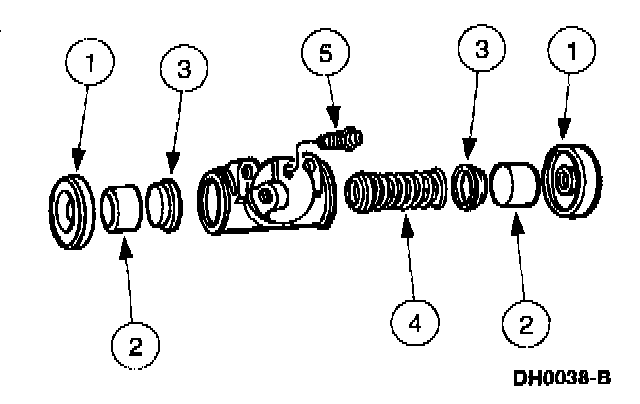

1. Disassemble the rear wheel cylinder.
1 Remove the rubber boots.
2 Remove the rear wheel cylinder pistons.
3 Remove the cups.
4 Remove the expander.
5 Remove the wheel cylinder bleeder screw from the rear wheel cylinder.

NOTE: Removal is not necessary to disassemble, inspect, hone or overhaul the rear wheel cylinder.

ASSEMBLY
1. Follow the disassembly procedure in reverse Order.

NOTE: Coat all the rear wheel cylinder parts with Ford High Performance DOT 3 Brake Fluid C6AZ-19542-AB or equivalent DOT 3 fluid meeting Ford specification ESA-M6C25-A.
