G DTC 45, Vent Sol. Valve Circuit Short to GRD or Open
G DTC 45, Vent Sol. Valve Circuit Short to GRD or Open
Pinpoint Test G1 - G2:

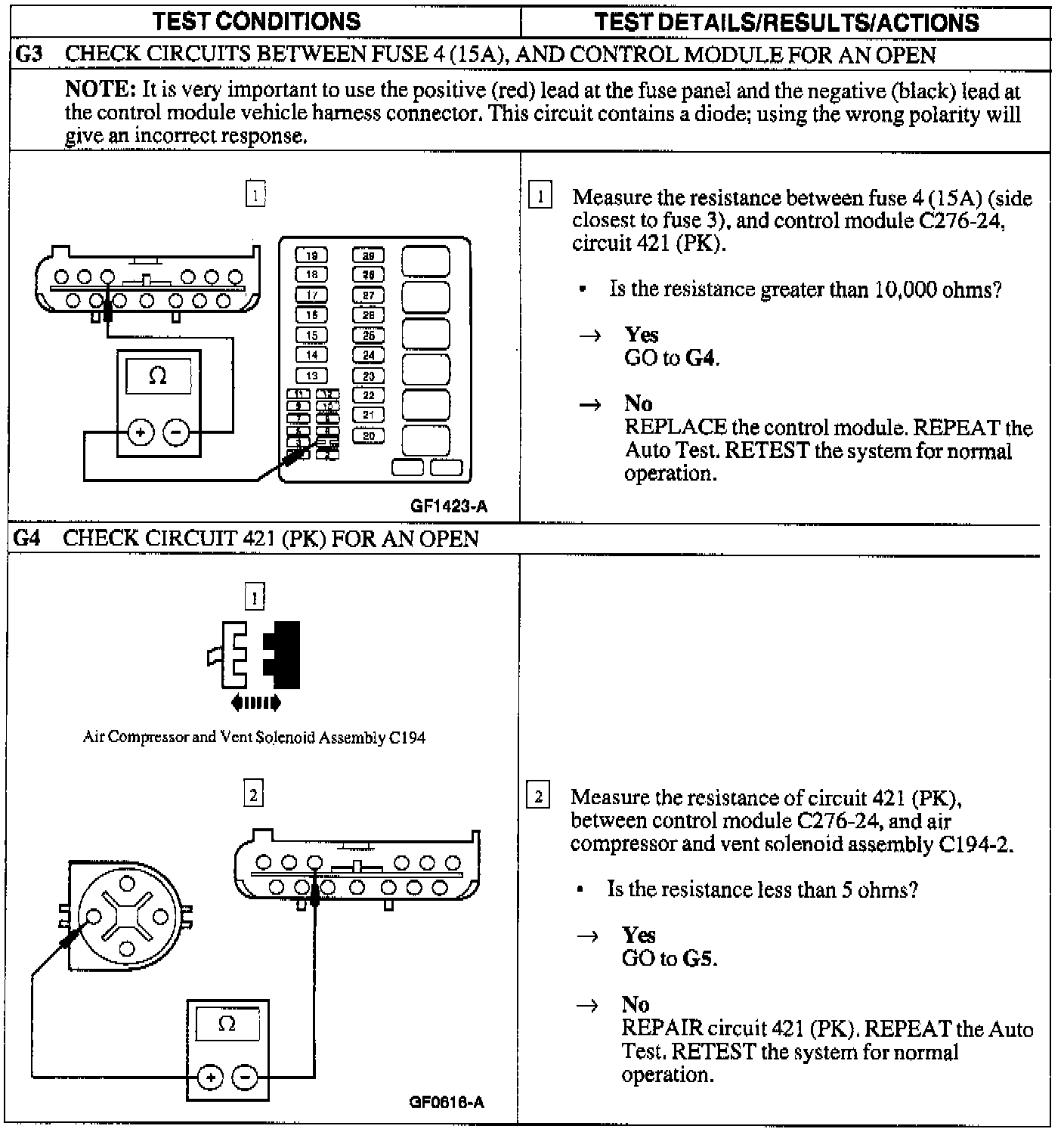

Pinpoint Test G3 - G4:
Pinpoint Test G5:
