Drive Belt Tensioner: Service and Repair

REMOVAL
1. Remove the drive belt.

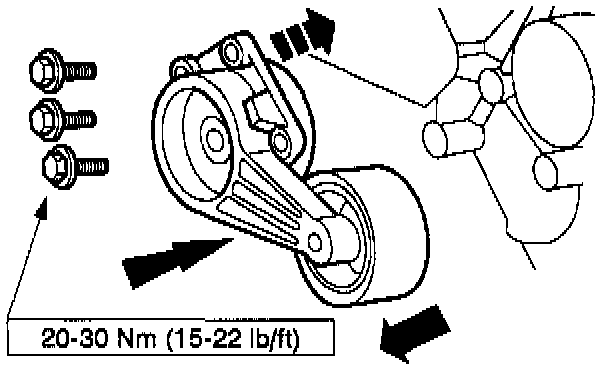

2. Remove the (A) bolts and the (B) drive belt tensioner.

NOTE: The drive belt tensioner for a vehicle with air conditioning is shown; the drive belt tensioner for a vehicle without air conditioning is similar, except for the ribbed pulley.

INSTALLATION





1. Position the drive belt tensioner and install the bolts.
2. Install the drive belt.
