Engine Compartment Views

Engine View:

A/C CLUTCH CYCLING PRESSURE SWITCH
ANTI-LOCK BRAKE CONTROL MODULE
BRAKE FLUID LEVEL SWITCH
CONSTANT CONTROL RELAY MODULE
ELECTRIC COOLING FAN MOTOR
ENGINE COMPARTMENT FUSE BOX
EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL PUMP RESISTOR
HIGH PITCH HORN
LEFT FOG LAMP
LEFT FRONT BRAKE SENSOR
LEFT FRONT PARK/TURN LAMP
LEFT HEADLAMP
LOW PITCH HORN
MASS AIR FLOW SENSOR
RIGHT FOG LAMP
RIGHT FRONT BRAKE SENSOR
RIGHT FRONT PARK/TURN LAMP
RIGHT HEADLAMP
SPEED CONTROL AMPLIFIER
WINDSHIELD WIPER MOTOR

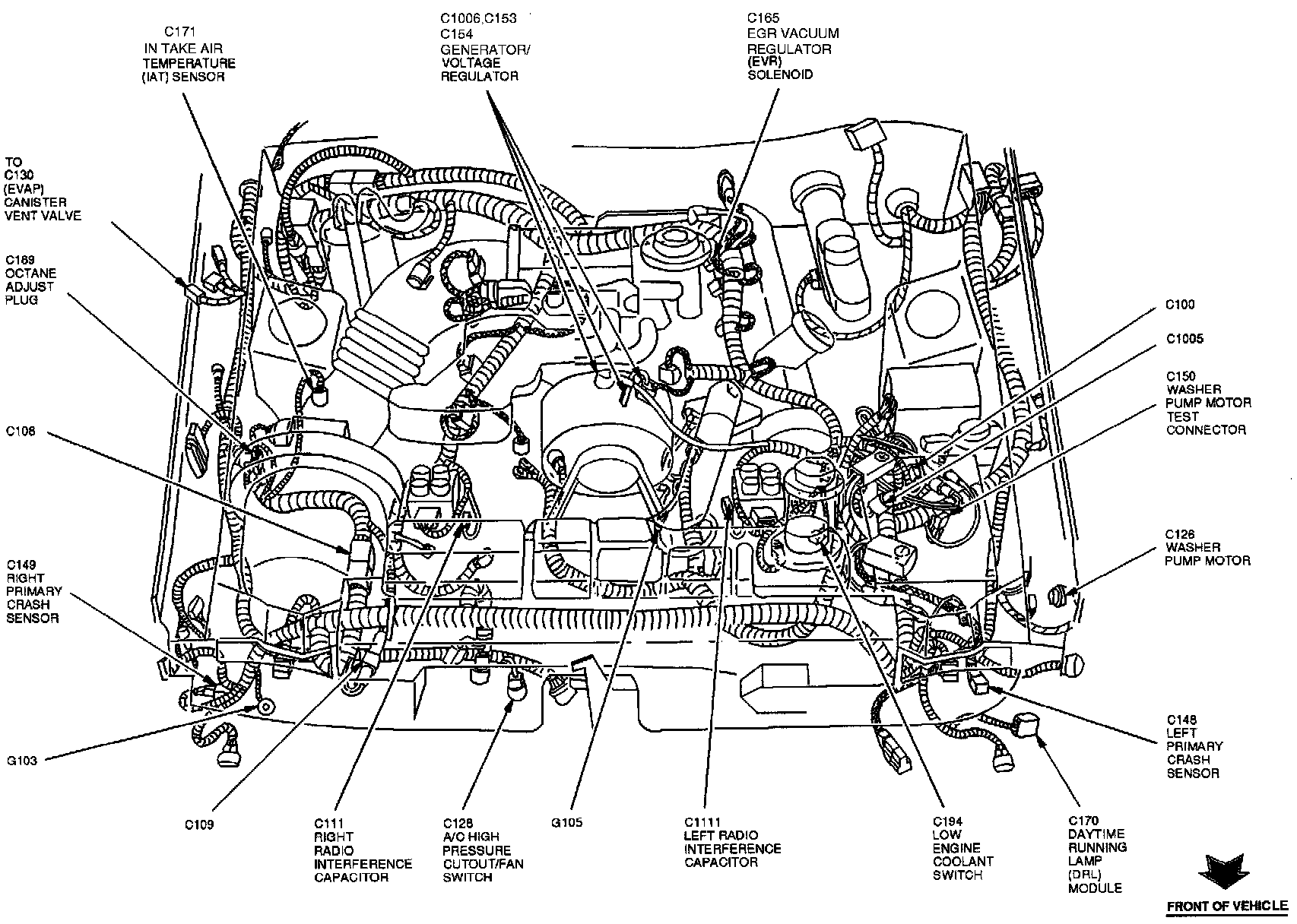

Engine View:

A/C HIGH PRESSURE CUTOUT/FAN SWITCH
DAYTIME RUNNING LAMPS MODULE
EGR VACUUM REGULATOR SOLENOID
EVAPORATIVE CANISTER VENT VALVE
GENERATOR/VOLTAGE REGULATOR
INTAKE AIR TEMPERATURE SENSOR
LEFT PRIMARY CRASH SENSOR
LEFT RADIO INTERFERENCE CAPACITOR
LOW ENGINE COOLANT SWITCH
OCTANE ADJUST PLUG
RIGHT PRIMARY CRASH SENSOR
RIGHT RADIO INTERFERENCE CAPACITOR
WASHER PUMP MOTOR
WASHER PUMP MOTOR TEST CONNECTOR

Engine View:

A/C CLUTCH FIELD COIL
CAMSHAFT POSITION SENSOR
CRANKSHAFT POSITION SENSOR
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
ENGINE COOLANT TEMPERATURE SENDER
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE OIL PRESSURE SWITCH
EVAPORATIVE EMISSION PURGE FLOW SENSOR
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
FUEL INJECTOR #4
FUEL INJECTOR #5
FUEL INJECTOR #6
FUEL INJECTOR #7
FUEL INJECTOR #8
FUSE LINKS A & B
IDLE AIR CONTROL VALVE
IGNITION COIL 1 & 2
IGNITION COIL 3 & 4
LEFT FRONT HEATED OXYGEN SENSOR
LOW ENGINE OIL LEVEL SENSOR
RIGHT FRONT HEATED OXYGEN SENSOR
STARTER MOTOR SOLENOID
THROTTLE POSITION SENSOR
VAPOR MANAGEMENT VALVE
