Keyless Entry Programming Connector
>>
Locations
>>
Convertible
Convertible

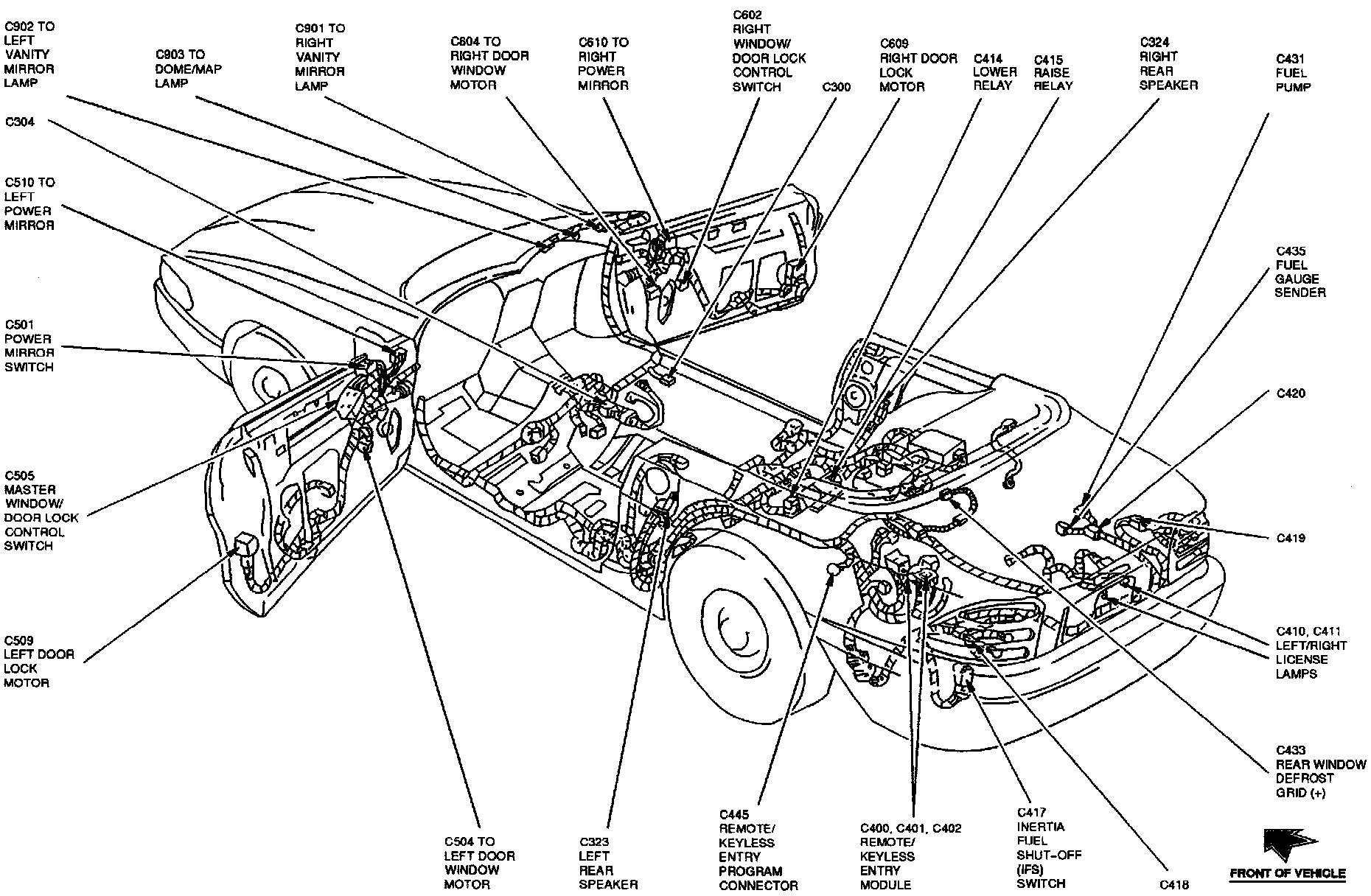

Full Body Views (Convertible):
The Remote/Keyless Entry Program Connector is located at LH rear of trunk, behind side trim.
