Home >> Ford >> 1998 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft) >> Transceiver Module - With Passive Anti-Theft System Only

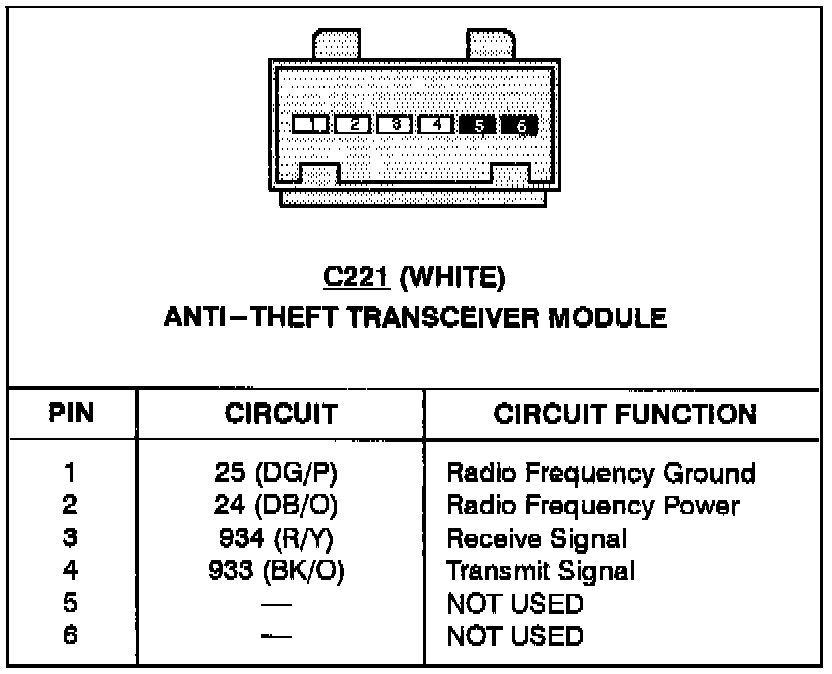

Transceiver Module - With Passive Anti-Theft System Only
