Alarm Module: Locations

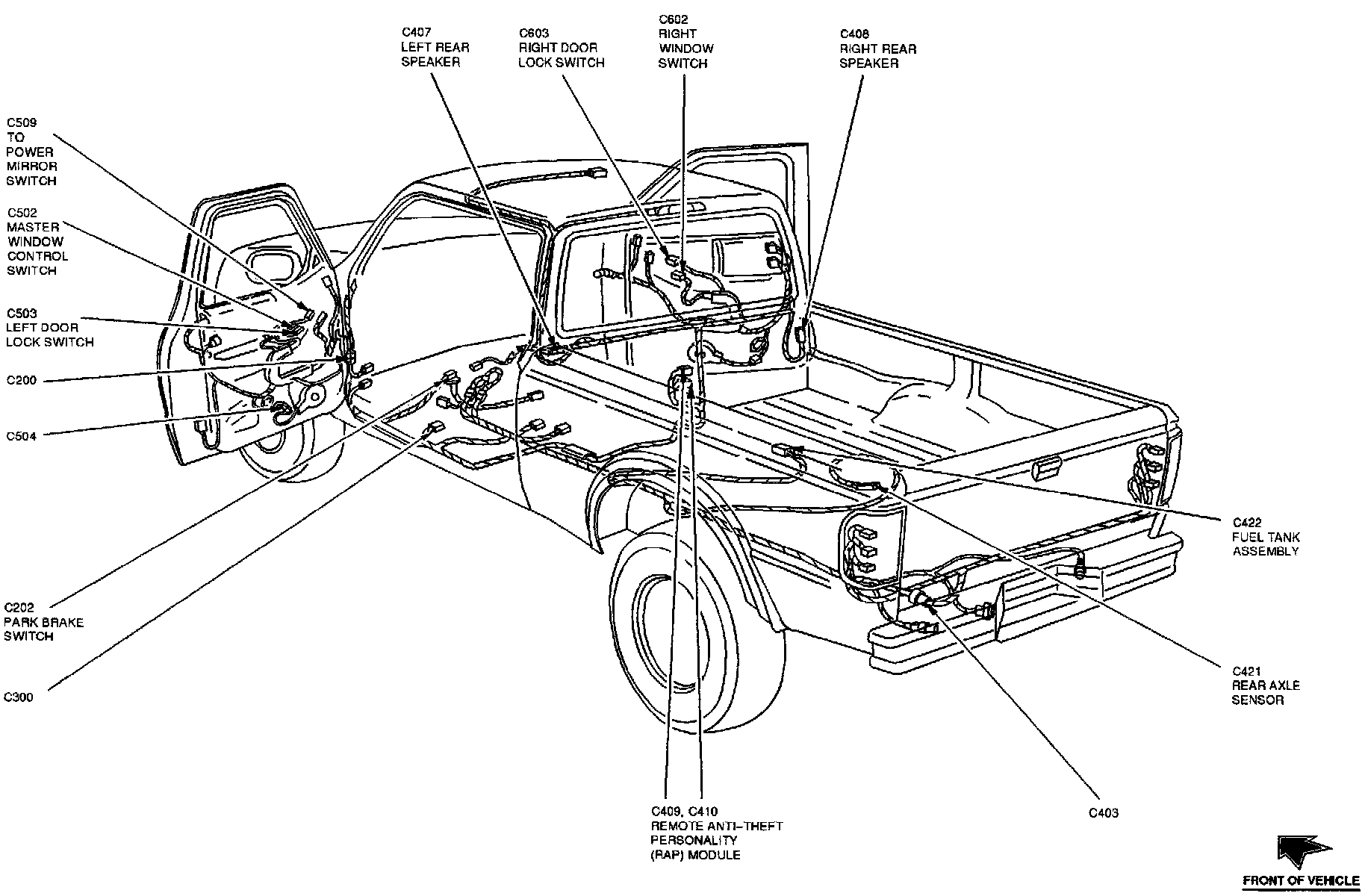

Full Body View:
The Remote Anti-Theft Personality Module is located at LH rear corner of cab.
