Alarm Module: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

2. Remove the LH rear quarter trim panel.

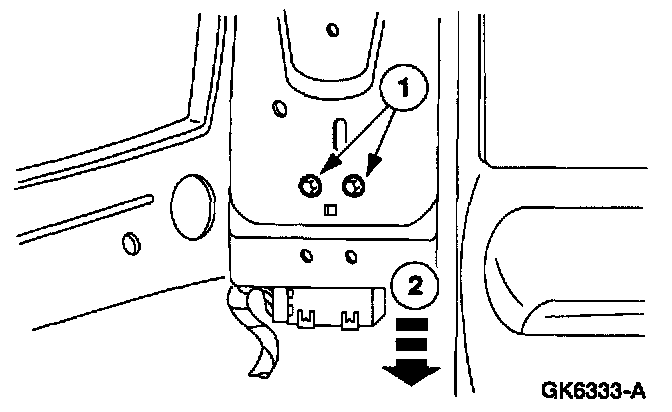

3. Position the RAP module aside.
1 Remove nuts.
2 Position the module aside.

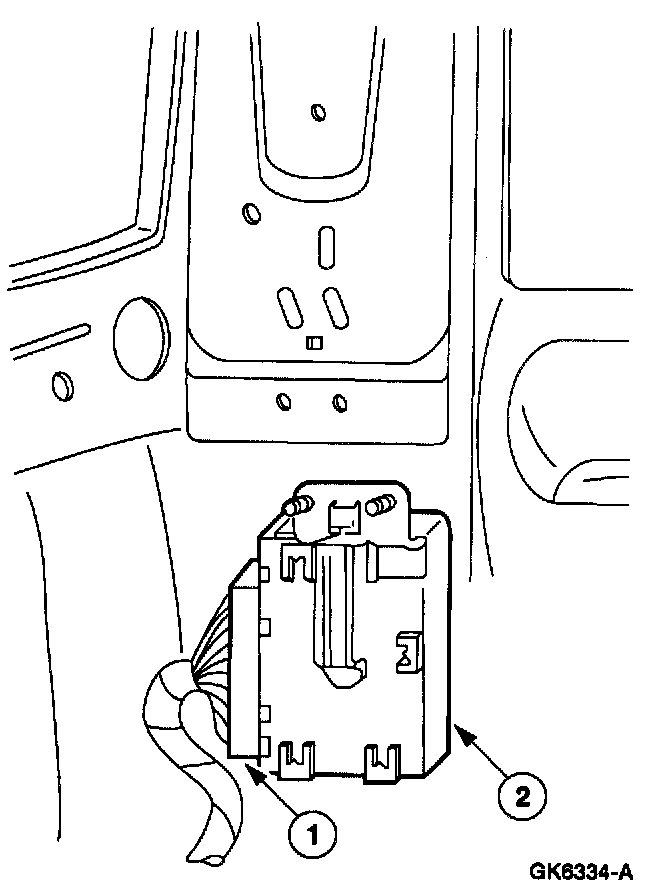

4. Remove the RAP module.
1 Disconnect electrical connector.
2 Remove the RAP module.

INSTALLATION

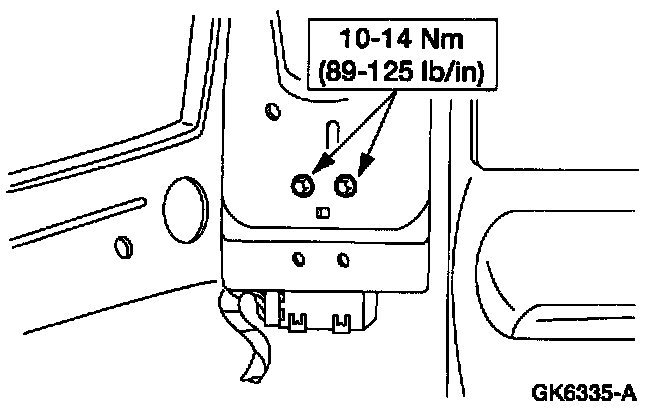

1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
