Control Assembly, HVAC

Function Selector Switch Vacuum Connector:

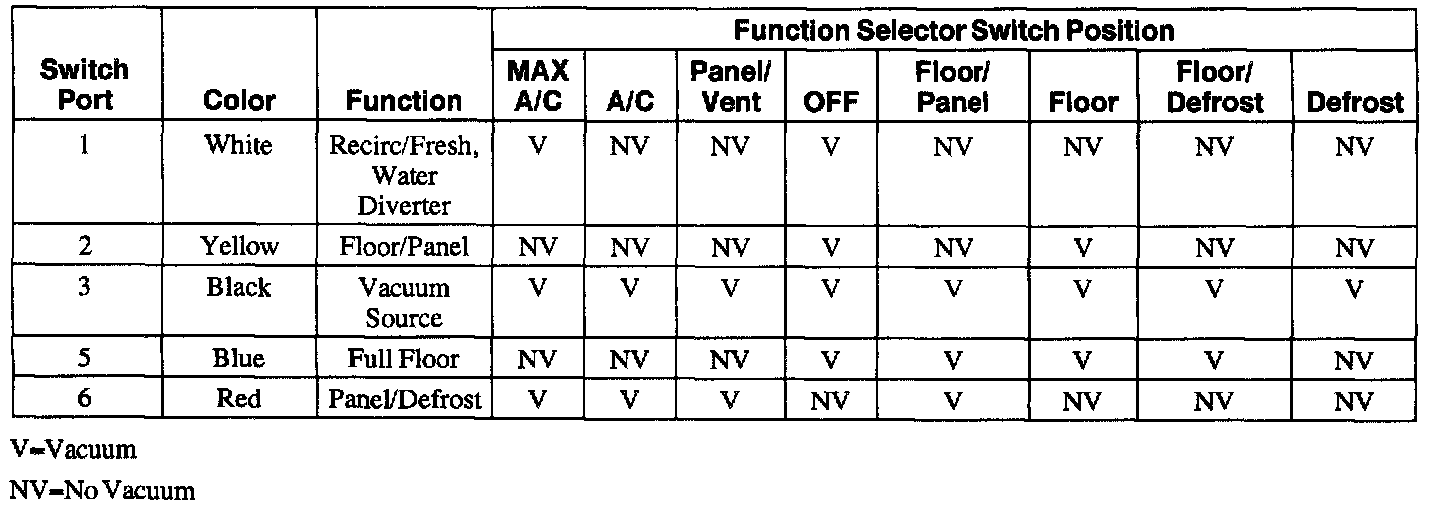

Function Selector Switch Vacuum Application Chart:
