Compressor Bracket

REMOVAL
1. Remove the A/C manifold and tube.
2. Remove the power steering pump from the A/C compressor mounting bracket.







3. Remove the A/C compressor mounting bracket.

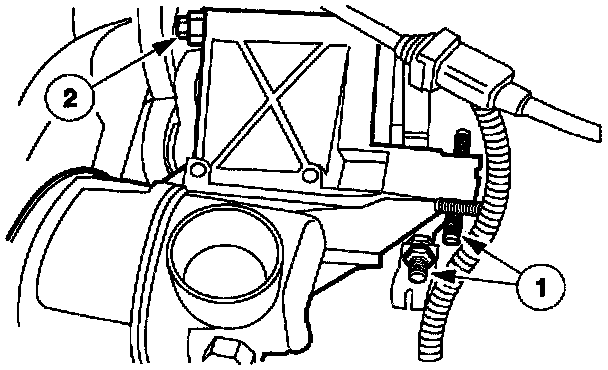

1 Remove the stud bolts.
2 Remove the bolt and remove the A/C compressor mounting bracket.

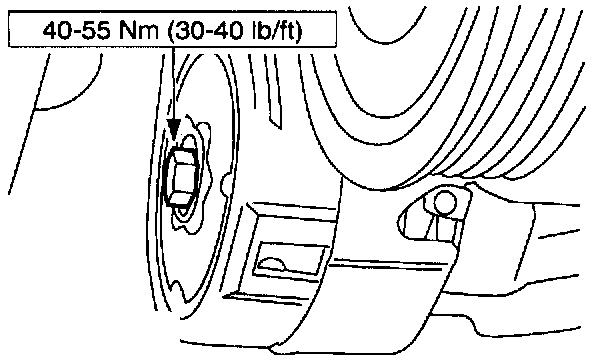

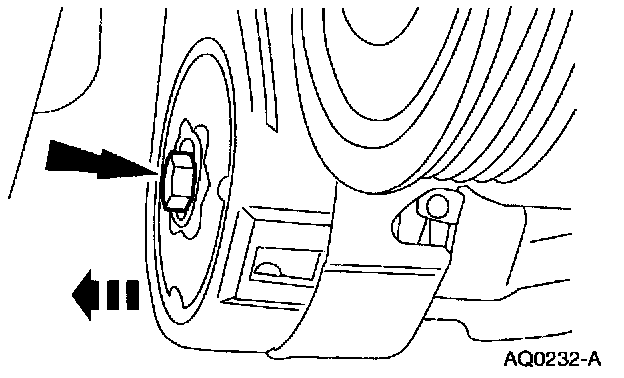

4. Remove the bolt and remove the tensioner from the A/C compressor mounting bracket.

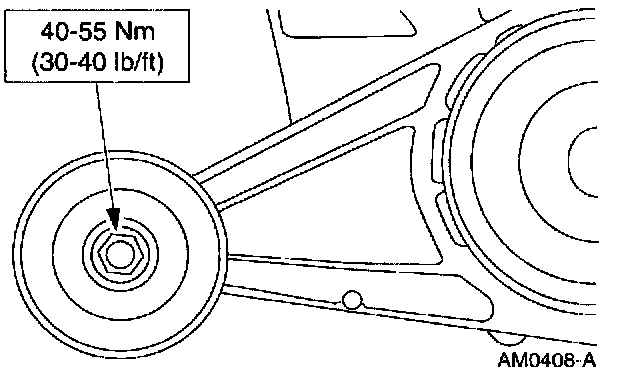

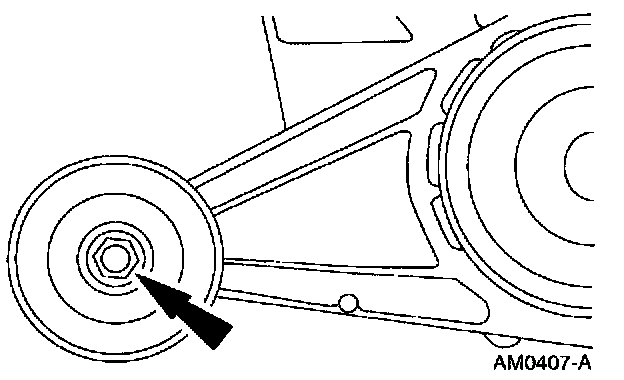

5. Remove the bolt and remove the idler pulley from the A/C compressor mounting bracket.

















INSTALLATION

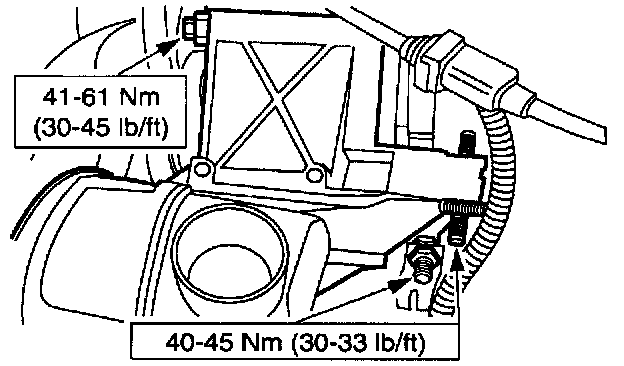

1. Follow the removal procedure in reverse order.
