Engine Views

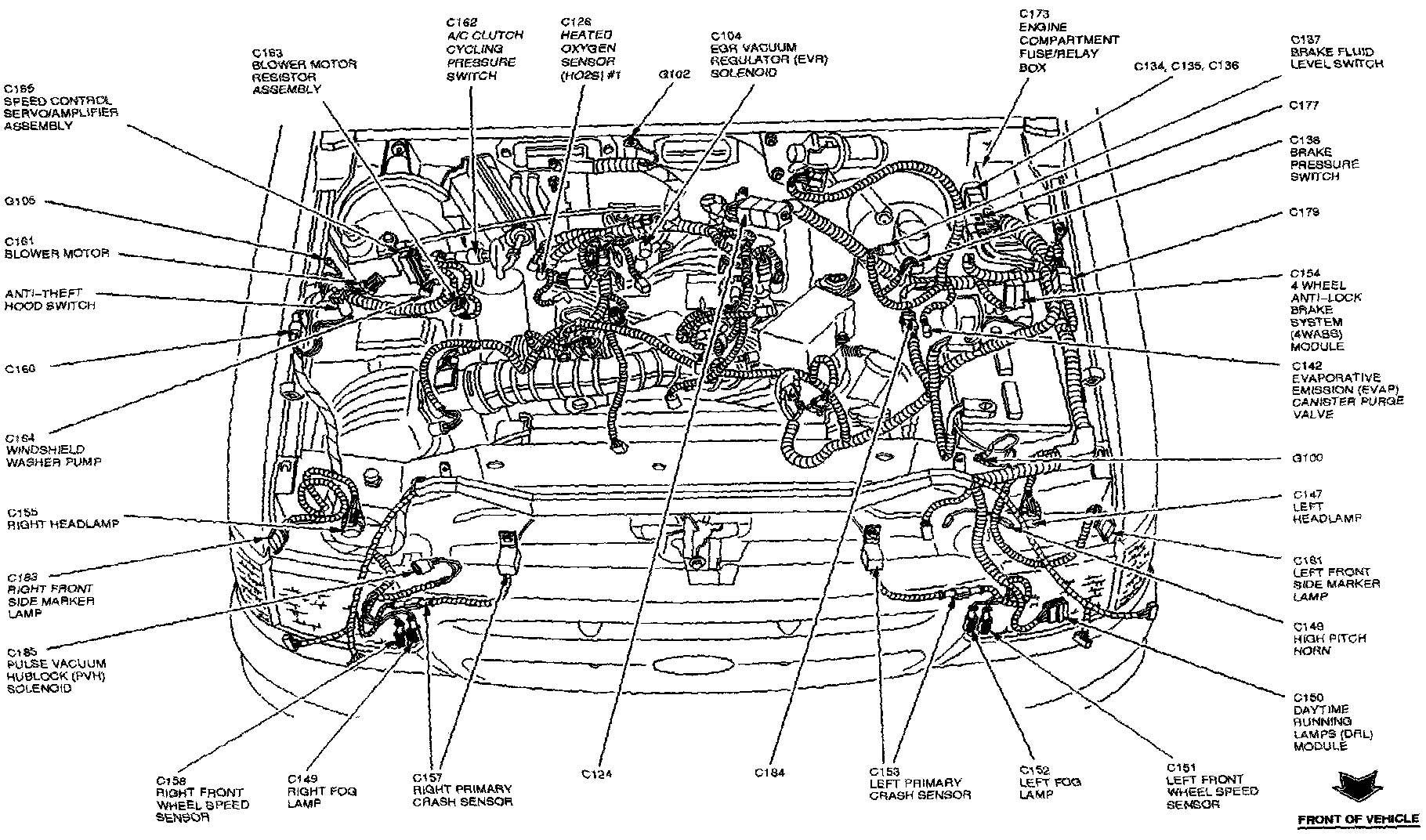

Engine View:

4 WHEEL ANTI-LOCK BRAKE SYSTEM MODULE
A/C CLUTCH CYCLING PRESSURE SWITCH
ANTI-THEFT HOOD SWITCH
BLOWER MOTOR
BLOWER MOTOR RESISTOR ASSEMBLY
BRAKE FLUID LEVEL SWITCH
BRAKE PRESSURE SWITCH
DAYTIME RUNNING LAMPS MODULE
EGR VACUUM REGULATOR SOLENOID
ENGINE COMPARTMENT FUSE/RELAY BOX
EVAPORATIVE EMISSION CANISTER PURGE VALVE
HEATED OXYGEN SENSOR #1
HIGH PITCH HORN
LEFT FOG LAMP
LEFT FRONT SIDE MARKER LAMP
LEFT FRONT WHEEL SPEED SENSOR
LEFT HEADLAMP
LEFT PRIMARY CRASH SENSOR
PULSE VACUUM HUBLOCK SOLENOID
RIGHT FOG LAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT FRONT WHEEL SPEED SENSOR
RIGHT HEADLAMP
RIGHT PRIMARY CRASH SENSOR
SPEED CONTROL SERVO/AMPLIFIER ASSEMBLY
WINDSHIELD WASHER PUMP

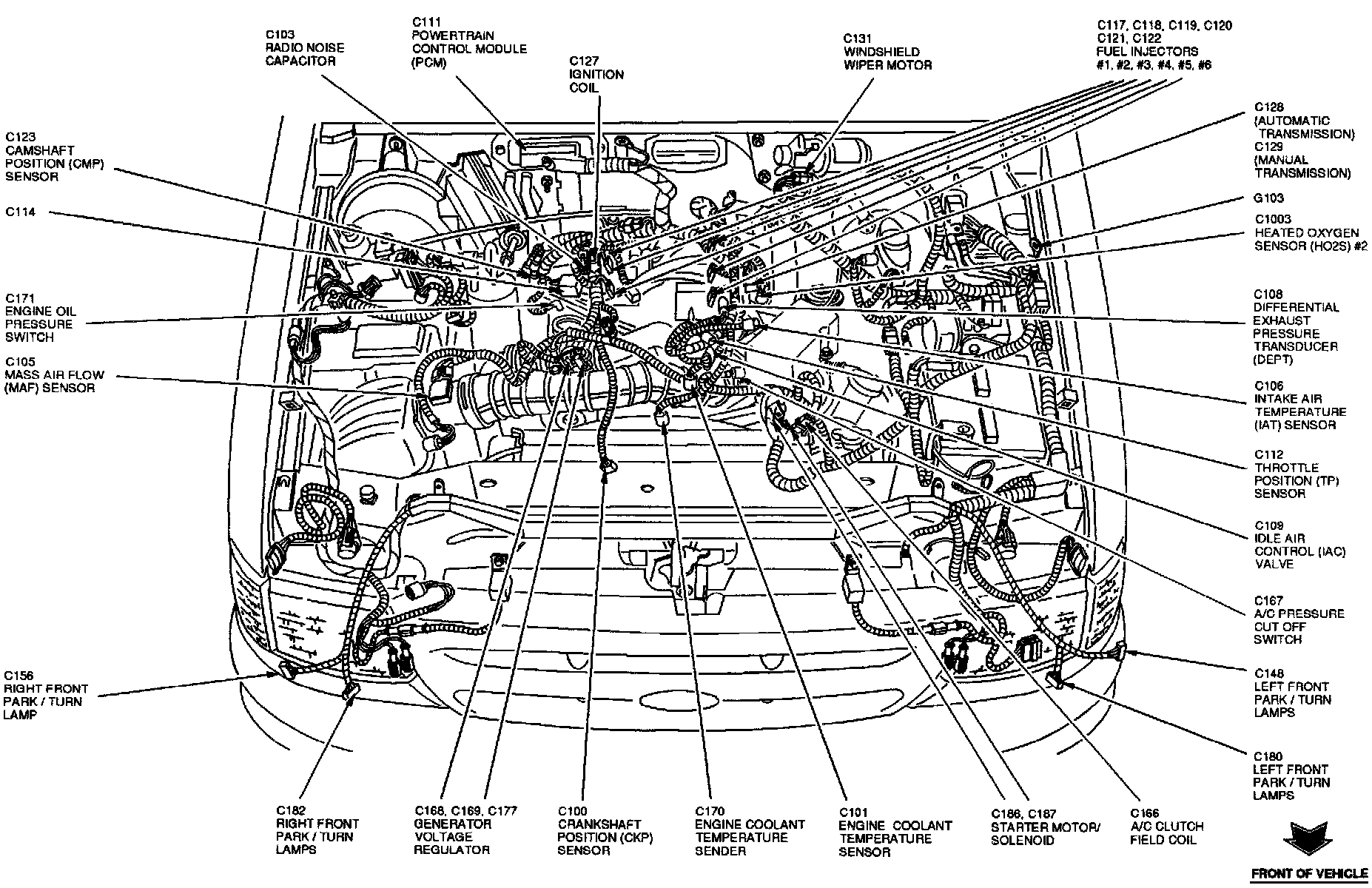

Engine View:

A/C CLUTCH FIELD COIL
A/C PRESSURE CUT OFF SWITCH
CAMSHAFT POSITION SENSOR
CRANKSHAFT POSITION SENSOR
DIFFERENTIAL EXHAUST PRESSURE TRANSDUCER
ENGINE COOLANT TEMPERATURE SENDER
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE OIL PRESSURE SWITCH
FUEL INJECTORS
GENERATOR VOLTAGE REGULATOR
HEATED OXYGEN SENSOR #2
IDLE AIR CONTROL VALVE
IGNITION COIL
INTAKE AIR TEMPERATURE SENSOR
LEFT FRONT PARK/TURN LAMPS
MASS AIR FLOW SENSOR
POWERTRAIN CONTROL MODULE
RADIO NOISE CAPACITOR
RIGHT FRONT PARK/TURN LAMP
STARTER MOTOR/SOLENOID
THROTTLE POSITION SENSOR
WINDSHIELD WIPER MOTOR
