Camshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

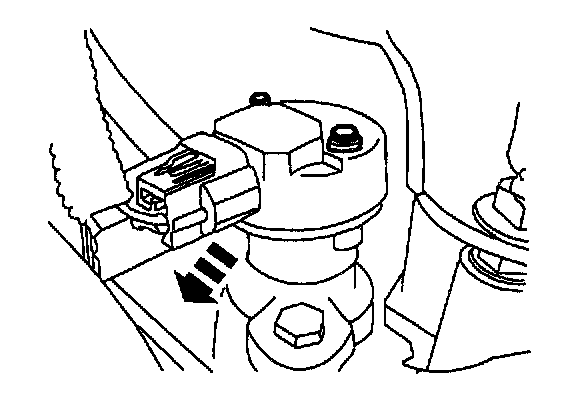

2. Disconnect the connector from the Camshaft Position sensor (CMP sensor).

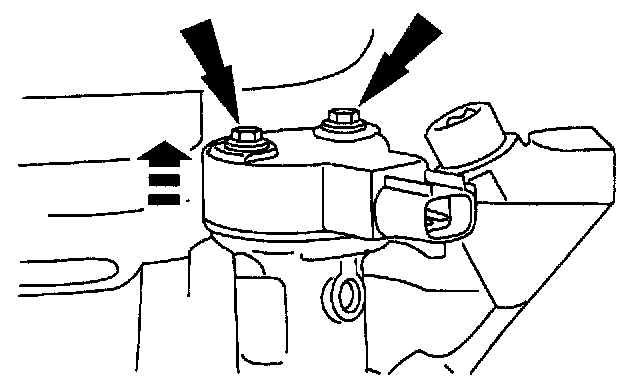

3. Remove the screws and the camshaft position sensor.







INSTALLATION

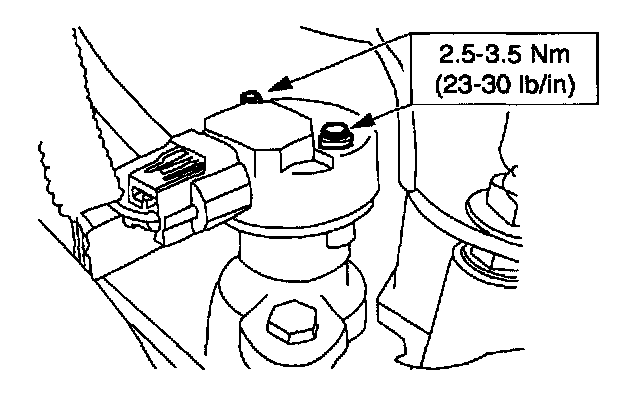

1. Follow the removal procedure in reverse order.
