Crankshaft Position Sensor: Service and Repair

REMOVAL


1. Disconnect the battery ground cable.
2. Raise and support the vehicle.







3. Disconnect the crankshaft position sensor electrical connector from the Crankshaft Position sensor (CKP sensor).

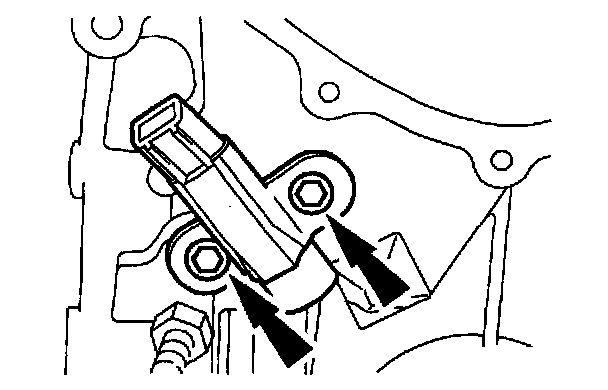

4. Remove the bolts and remove the crankshaft position sensor.







INSTALLATION

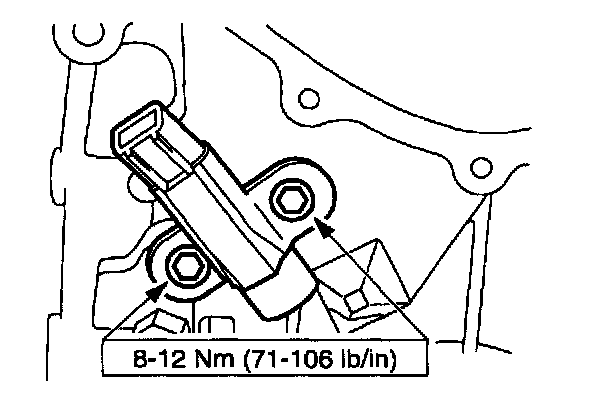

1. Follow the removal procedure in reverse order.
