PCM - NGS Tester Cannot Read O2 Sensor Signal
Article No.98-3-15
02/16/98
SBDS/NGS - UNABLE TO MONITOR OUTPUT SIGNAL
FROM THE HEATED OXYGEN SENSOR (HO2S) - 3.0L
2-VALVE VEHICLES BUILT 8/5/97 THROUGH 3/23/98
LIGHT TRUCK:
1998 RANGER
CALIBRATION:
8-56F-R05, 8-56H-R05, 8-56R-R05, 8-56S-R05
WARNING:
THIS MODIFICATION IS AUTHORIZED ONLY FOR THE LISTED ENGINE. PERFORMING THIS MODIFICATION ON OTHER ENGINE CALIBRATIONS IS UNAUTHORIZED AND COULD CREATE LIABILITY UNDER APPLICABLE FEDERAL OR LOCAL LAWS.
ISSUE:
On some vehicles, the Service Bay Diagnostic System (SBDS) and/or New Generation Star (NGS) Tester may not be able to read the signal from the Heated Oxygen Sensor (HO2S). This may be caused by a calibration issue.
ACTION:
Reprogram the Powertrain Control Module (PCM). The revised calibration should enhance the ability to read the HO2S. Refer to the following Service Procedure for details.
SERVICE PROCEDURE
1. Perform normal diagnostics as outlined in the 1998 Powertrain Control/Emissions Diagnosis (PC/ED) On-Board Diagnostics II (OBDII) Service Manual. Service as required.
2. If the concern still exists, reprogram the PCM.

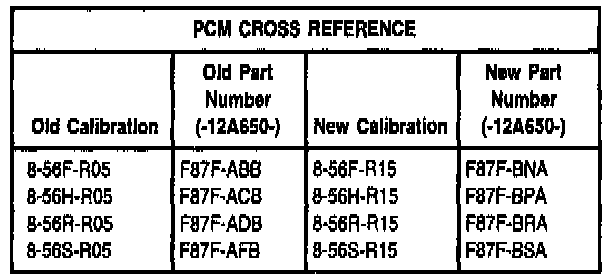

3. Refer to the following PCM Cross Reference Chant for correct calibration usage.
NOTE:
PCM REPLACEMENT IS NOT AUTHORIZED BY THIS TSB. REFER TO THE POWERTRAIN CONTROL/EMISSIONS DIAGNOSIS (PC/ED) SERVICE MANUAL FOR APPROPRIATE DIAGNOSTIC PROCEDURES IF PCM HARDWARE CONCERNS EXIST.
Obtain an Authorized Modification Decal (FPS 8262 - obtainable through DOES II, 25/pkg) and list the date, dealer number, and summary of modifications performed. Select a prominent place adjacent to the Vehicle Emission Control Information Decal suitable for installing the Authorized Modifications Decal. Clean the area, install the decal, and cover it with a clear plastic decal shield.
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage And Emissions Warranty Coverage
OPERATION DESCRIPTION TIME
980315A Reprogram Powertrain 0.2 Hr.
Control Module (PCM)
DEALER CODING
CONDITION
BASIC PART NO. CODE
RECALEM 42
OASIS CODES: 206000, 290000, 403000, 490000, 690000, 698298
