Audible Warning Device Control Module: Locations

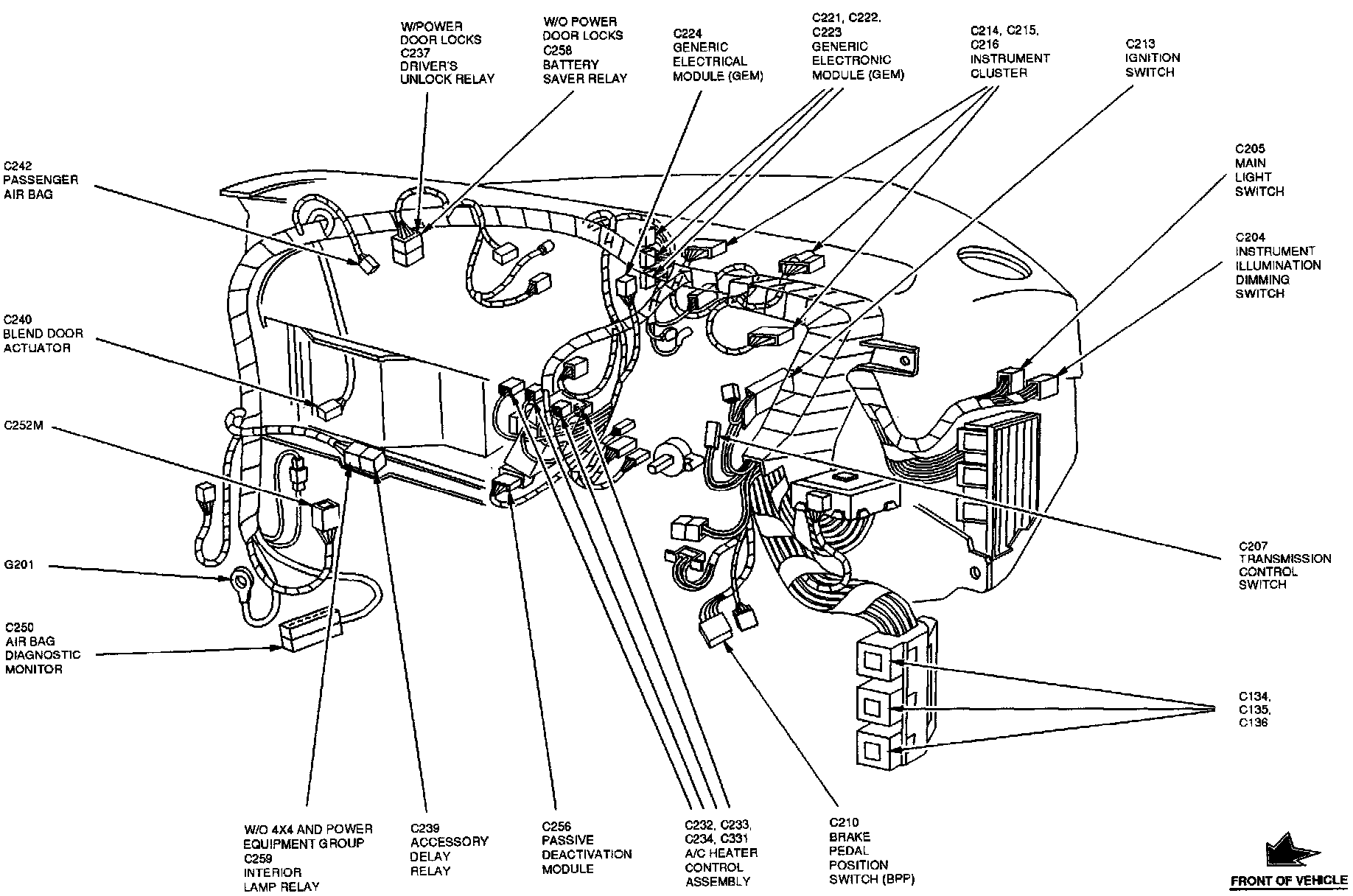

Behind Instrument Panel View:





The Generic Electronic Module is located behind center of instrument panel.
