Home >> Ford >> 1998 >> Ranger 4WD V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Front

Front

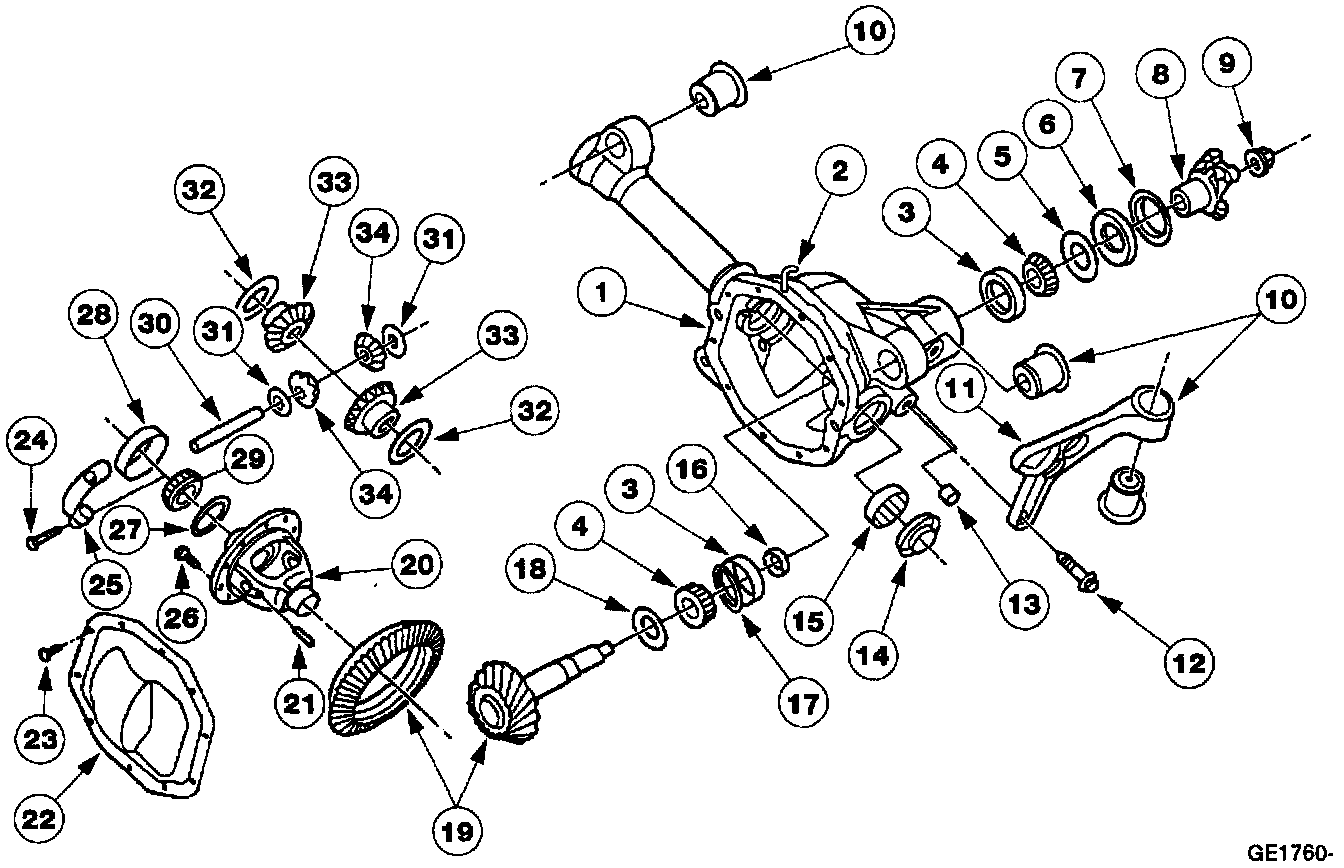

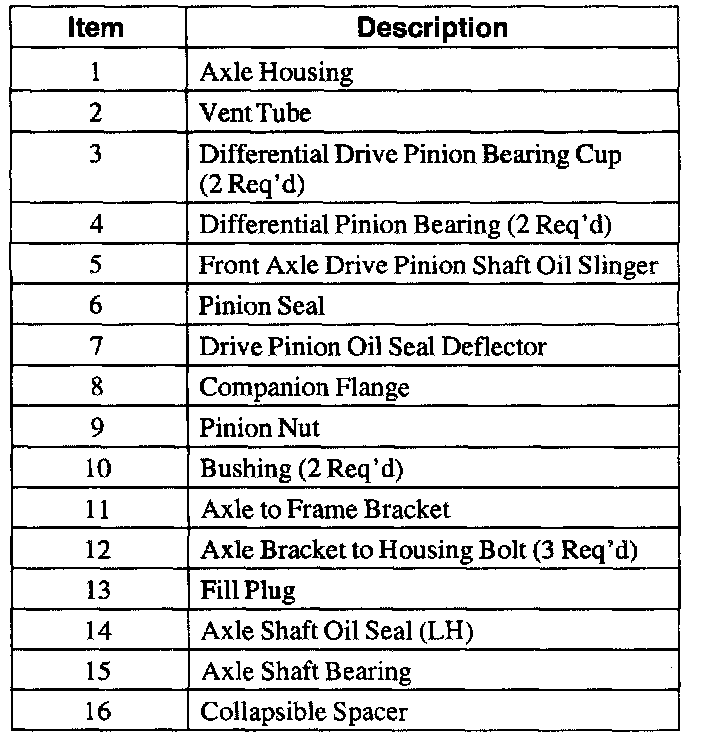

Dana 35, Part 1 Of 4:

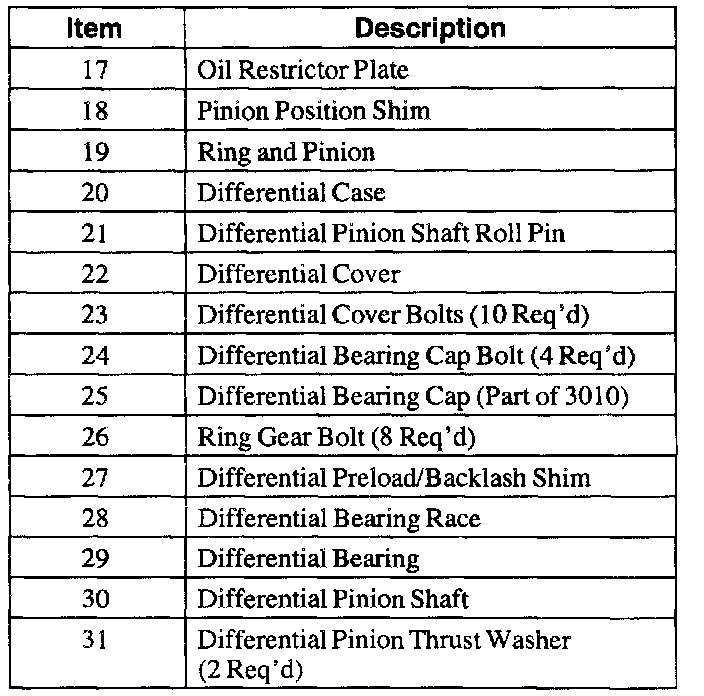

Dana 35, Part 2 Of 4:



Dana 35, Part 3 Of 4:
