Taurus V8-3.4L VIN N SHO
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Locations
>>
AX4N
>>
Main Components
Main Components

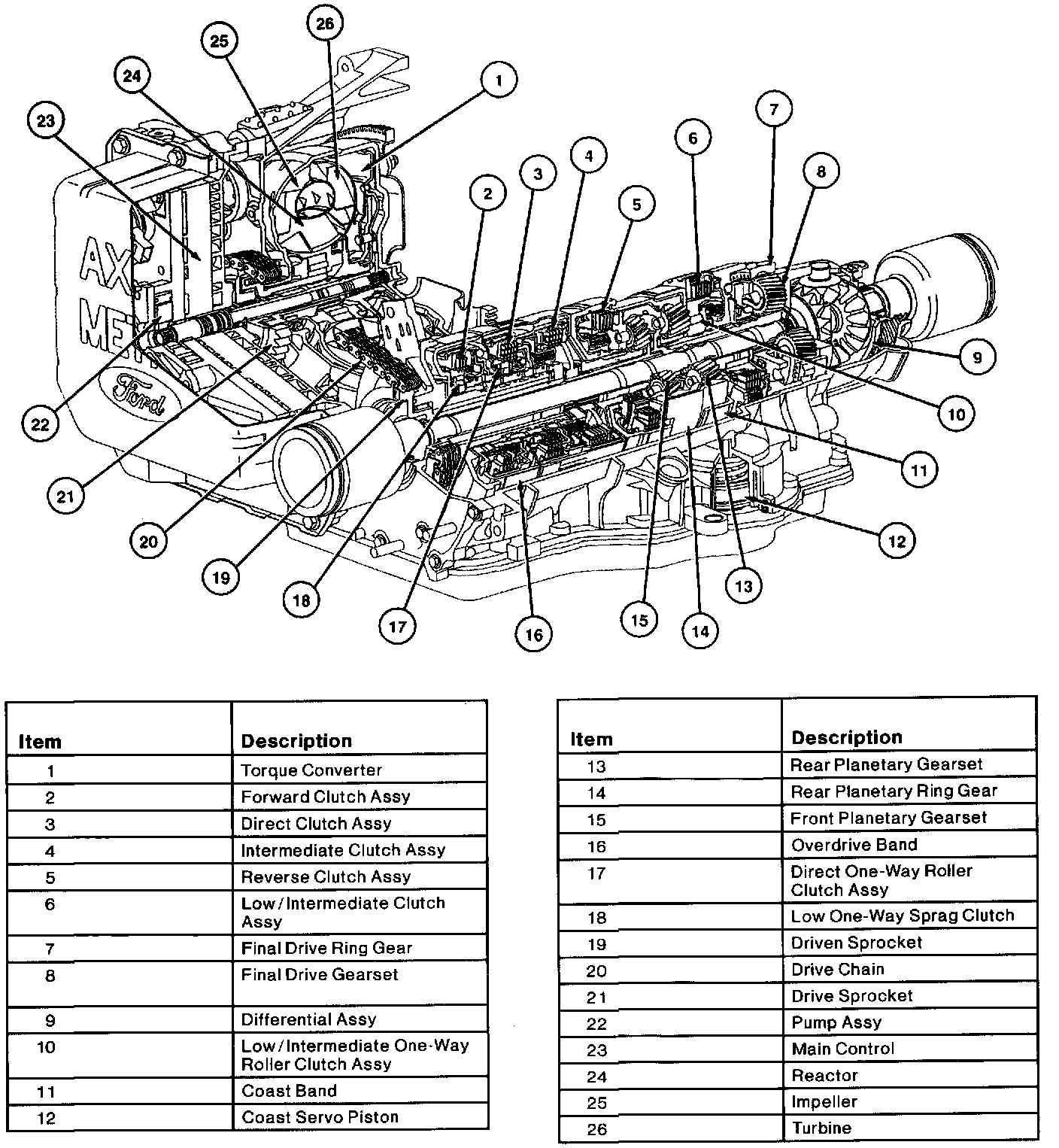

Cross-Sectional View:
