Engine Views

Engine View:

A/C CLUTCH DIODE
A/C CLUTCH RELAY
A/C CYCLING PRESSURE SWITCH
A/C HIGH PRESSURE CUTOFF/FAN SWITCH
ENGINE COMPARTMENT FUSE BOX
ENGINE COOLING FAN MOTOR HIGH AND LOW SPEED RELAYS
FUEL PUMP RELAY
FUSIBLE LINKS A, B, & C
HEATED OXYGEN SENSOR #12
HEATED OXYGEN SENSOR #22
HIGH PITCH HORN
LEFT FRONT PARK/TURN LAMP
LEFT FRONT SIDE MARKER LAMP
LEFT FRONT WHEEL SPEED SENSOR
LEFT HEADLAMP
LEFT RADIATOR CRASH SENSOR
LH TRAILER TURN/STOP/HAZARD RELAY
LIFTGATE WIPER RELAY
LOW PITCH HORN
OCTANE ADJUST PLUG
PCM POWER RELAY
POWERTRAIN CONTROL MODULE
RH TRAILER TURN STOP/HAZARD RELAY
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT HEADLAMP
RIGHT RADIATOR CRASH SENSOR
WINDSHIELD WASHER PUMP MOTOR RELAY
WINDSHIELD WIPER DYNAMIC BRAKE/RUN RELAY
WINDSHIELD WIPER MOTOR
WINDSHIELD WIPER SPEED RELAY

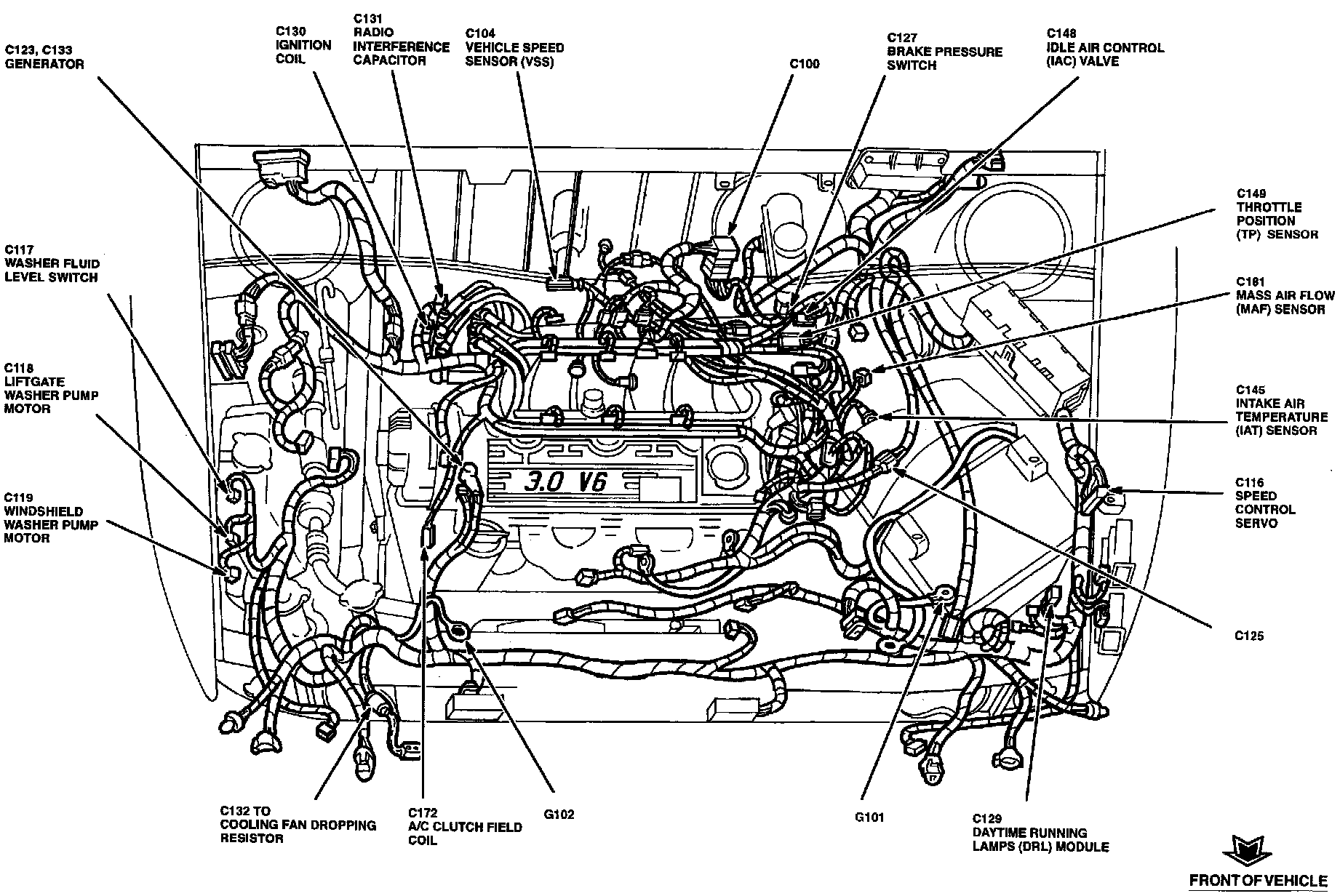

Engine View:

A/C CLUTCH FIELD COIL
BRAKE PRESSURE SWITCH
COOLING FAN DROPPING RESISTOR
DAYTIME RUNNING LAMPS MODULE
GENERATOR
IDLE AIR CONTROL VALVE
IGNITION COIL
INTAKE AIR TEMPERATURE SENSOR
LIFTGATE WASHER PUMP MOTOR
MASS AIR FLOW SENSOR
RADIO INTERFERENCE CAPACITOR
SPEED CONTROL SERVO
THROTTLE POSITION SENSOR
VEHICLE SPEED SENSOR
WASHER FLUID LEVEL SWITCH
WINDSHIELD WASHER PUMP MOTOR

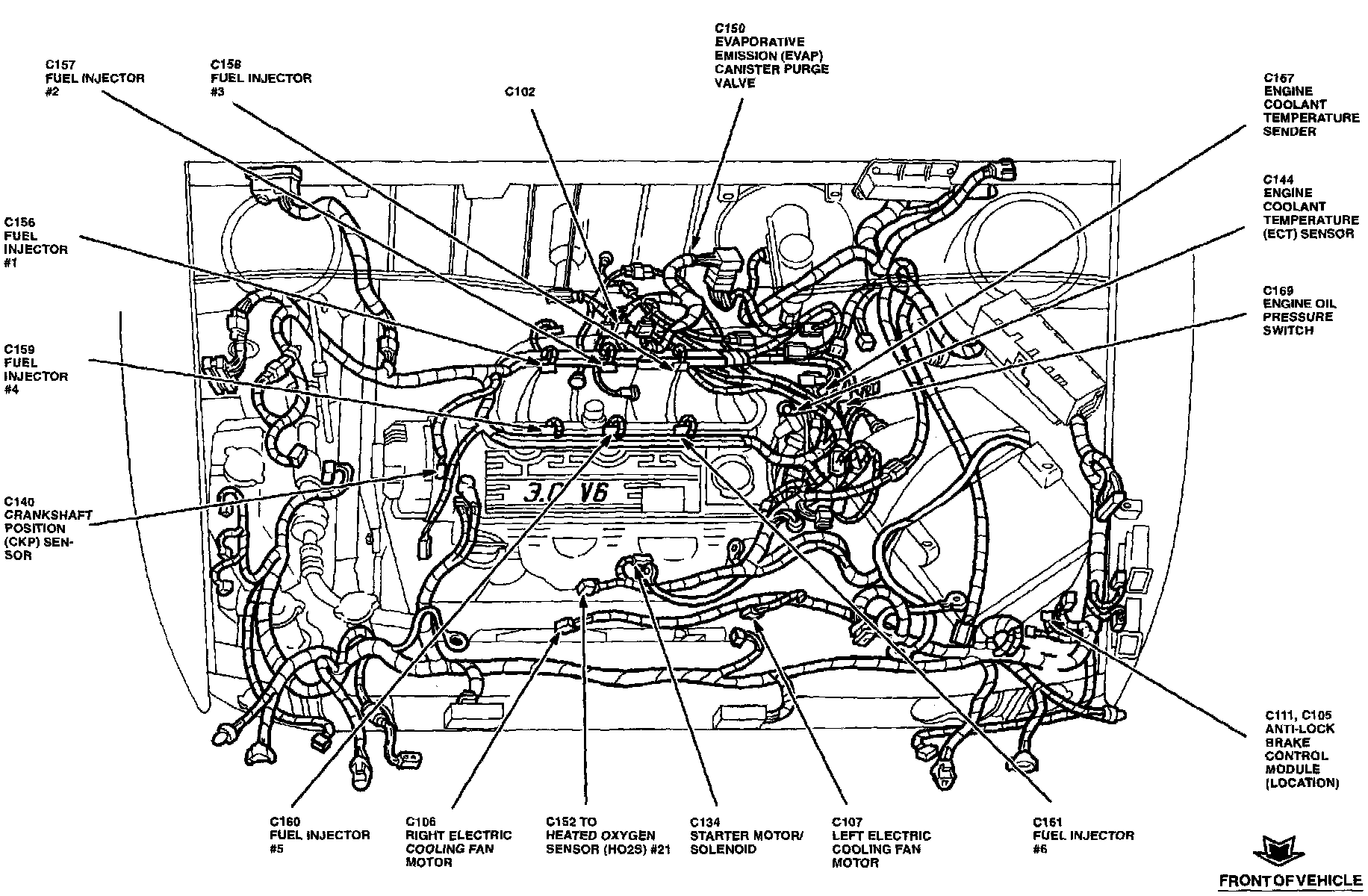

Engine View:

ANTI-LOCK BRAKE CONTROL MODULE
CRANKSHAFT POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENDER
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE OIL PRESSURE SWITCH
EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL INJECTORS #1
FUEL INJECTORS #2
FUEL INJECTORS #3
FUEL INJECTORS #4
FUEL INJECTORS #5
FUEL INJECTORS #6
HEATED OXYGEN SENSOR #21
LEFT ELECTRIC COOLING FAN MOTOR
RIGHT ELECTRIC COOLING FAN MOTOR
STARTER MOTOR/SOLENOID

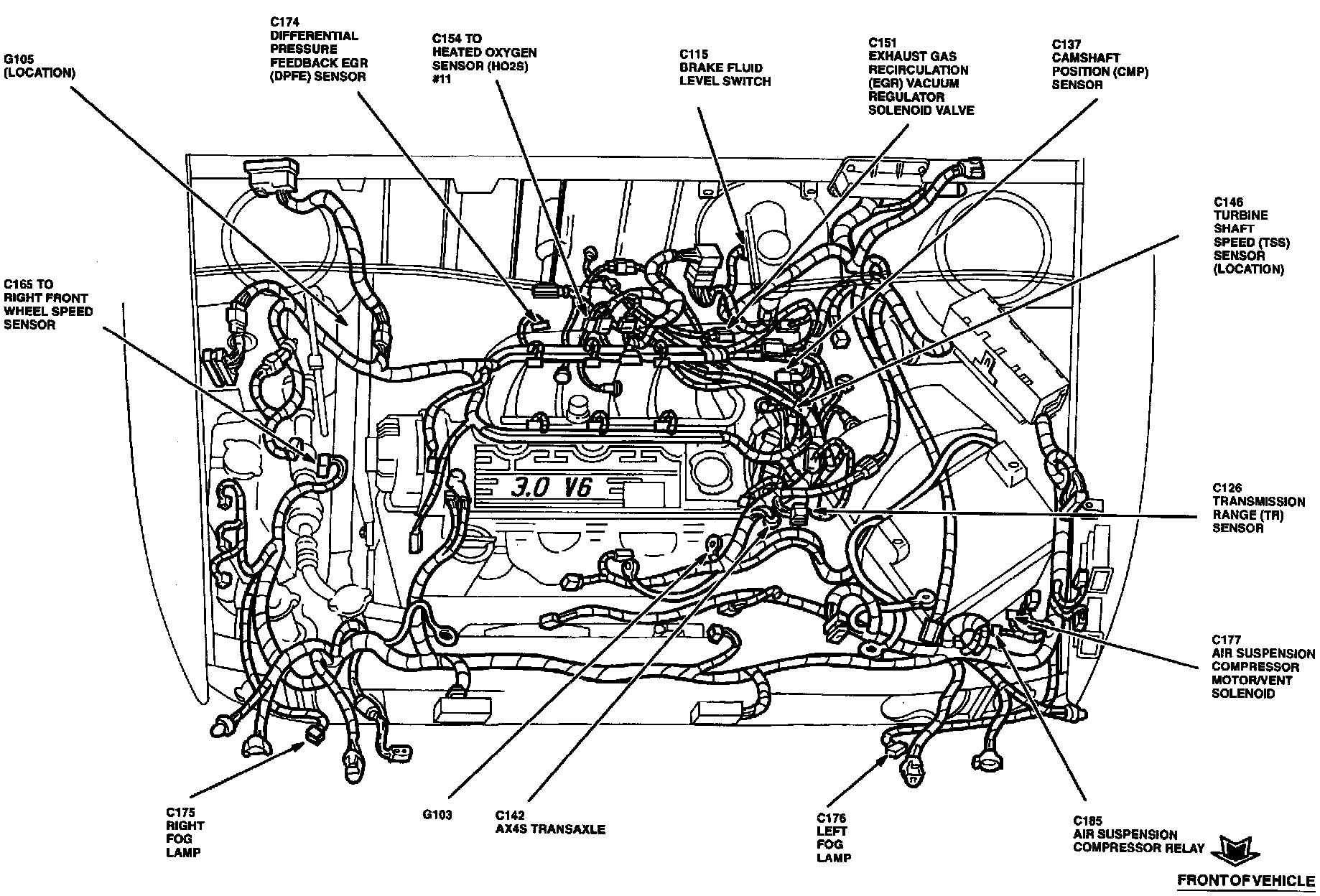

Engine View:

AIR SUSPENSION COMPRESSOR MOTOR/VENT SOLENOID
AIR SUSPENSION COMPRESSOR RELAY
AX4S TRANSAXLE
BRAKE FLUID LEVEL SWITCH
CAMSHAFT POSITION SENSOR
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
EXHAUST GAS RECIRCULATION VACUUM REGULATOR SOLENOID VALVE
HEATED OXYGEN SENSOR #11
LEFT FOG LAMP
RIGHT FOG LAMP
RIGHT FRONT WHEEL SPEED SENSOR
TRANSMISSION RANGE SENSOR
TURBINE SHAFT SPEED SENSOR
