General Module: Service and Repair

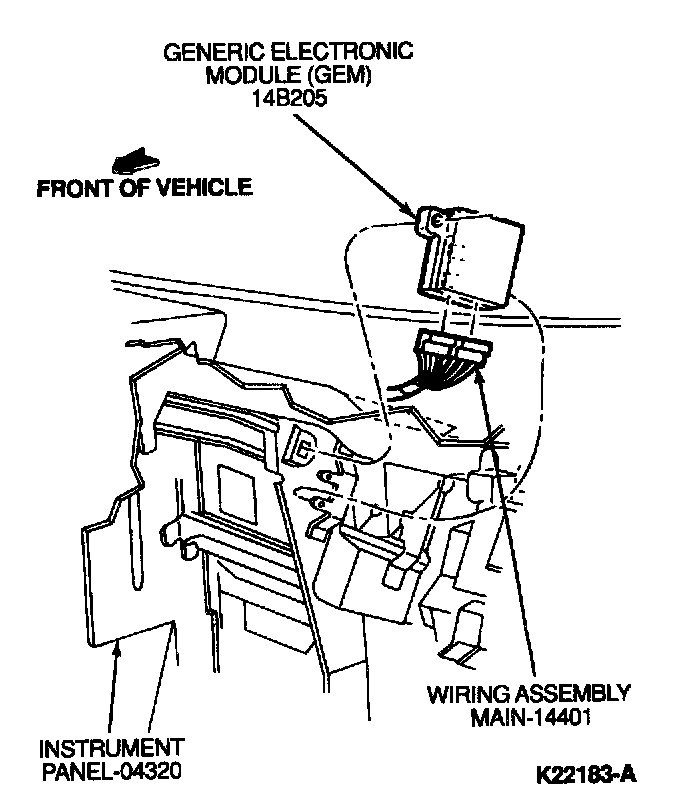

REMOVAL
1. Disconnect battery ground cable.
2. Remove screw retaining Generic Electronic Module (GEM) to vehicle.
3. Slide GEM forward, off retaining tabs.
4. Disconnect electrical connectors. Remove GEM from vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten retaining screw to 2-3 Nm (18-26 Lb-In).
