Power Mirror Switch: Service and Repair






REMOVAL
1. Remove driver door inside handle release bezel.
2. Remove window switch/lock switch bezel.
3. Disconnect mirror control switch connector.

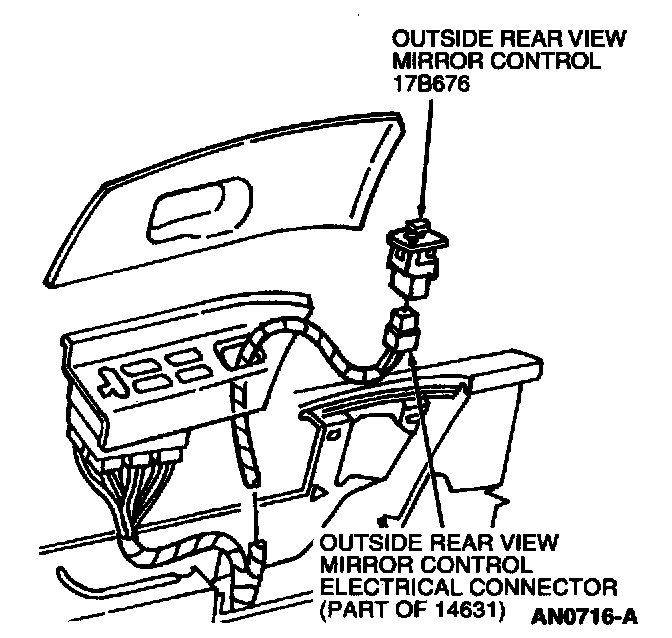

4. Release retaining tabs and remove outside rear view mirror control.

INSTALLATION
1. Follow removal procedure in reverse order.
