Multiple Junction Connector
>>
C2002
C2002

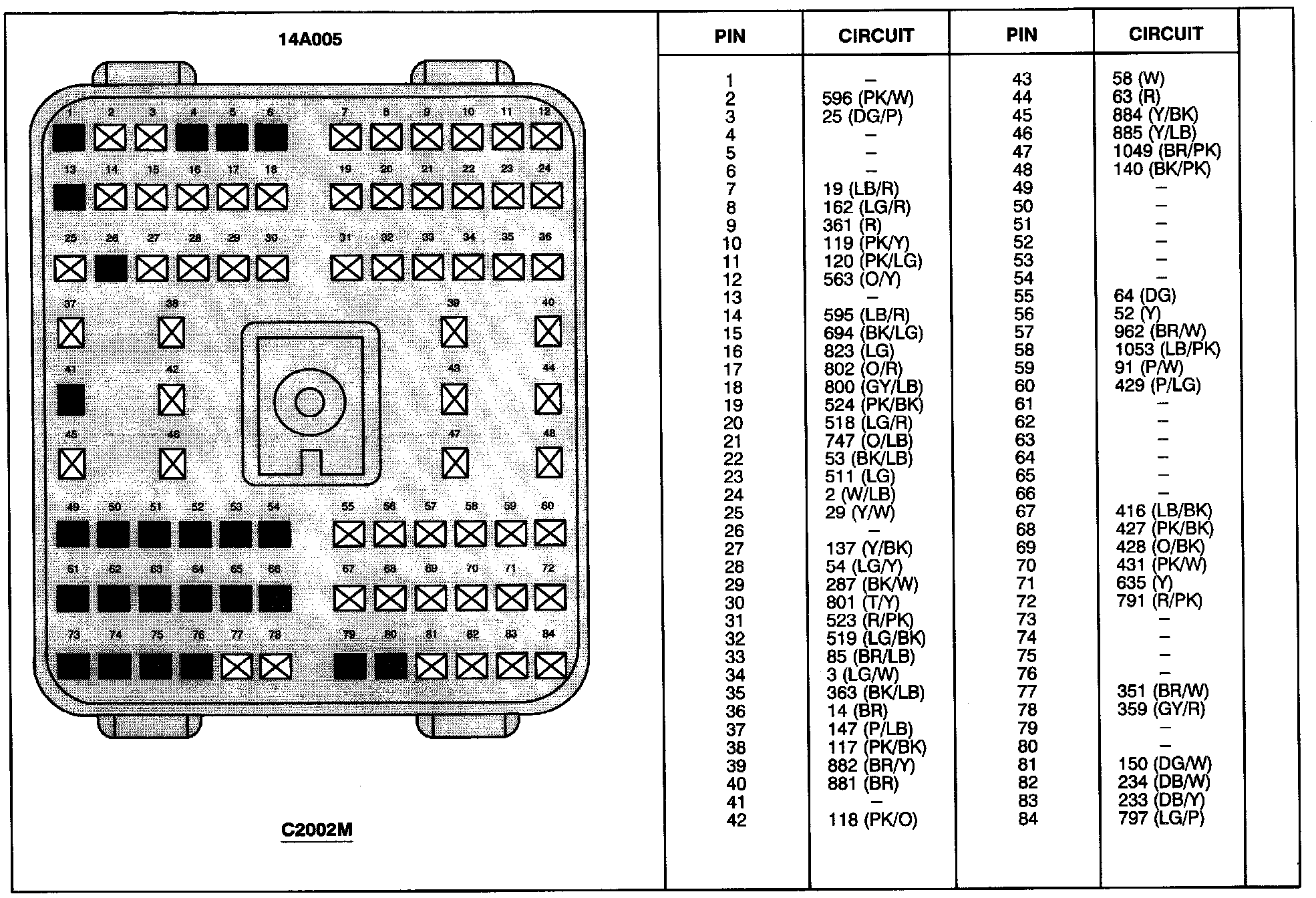

In-Line Connector Faces (C2002M):

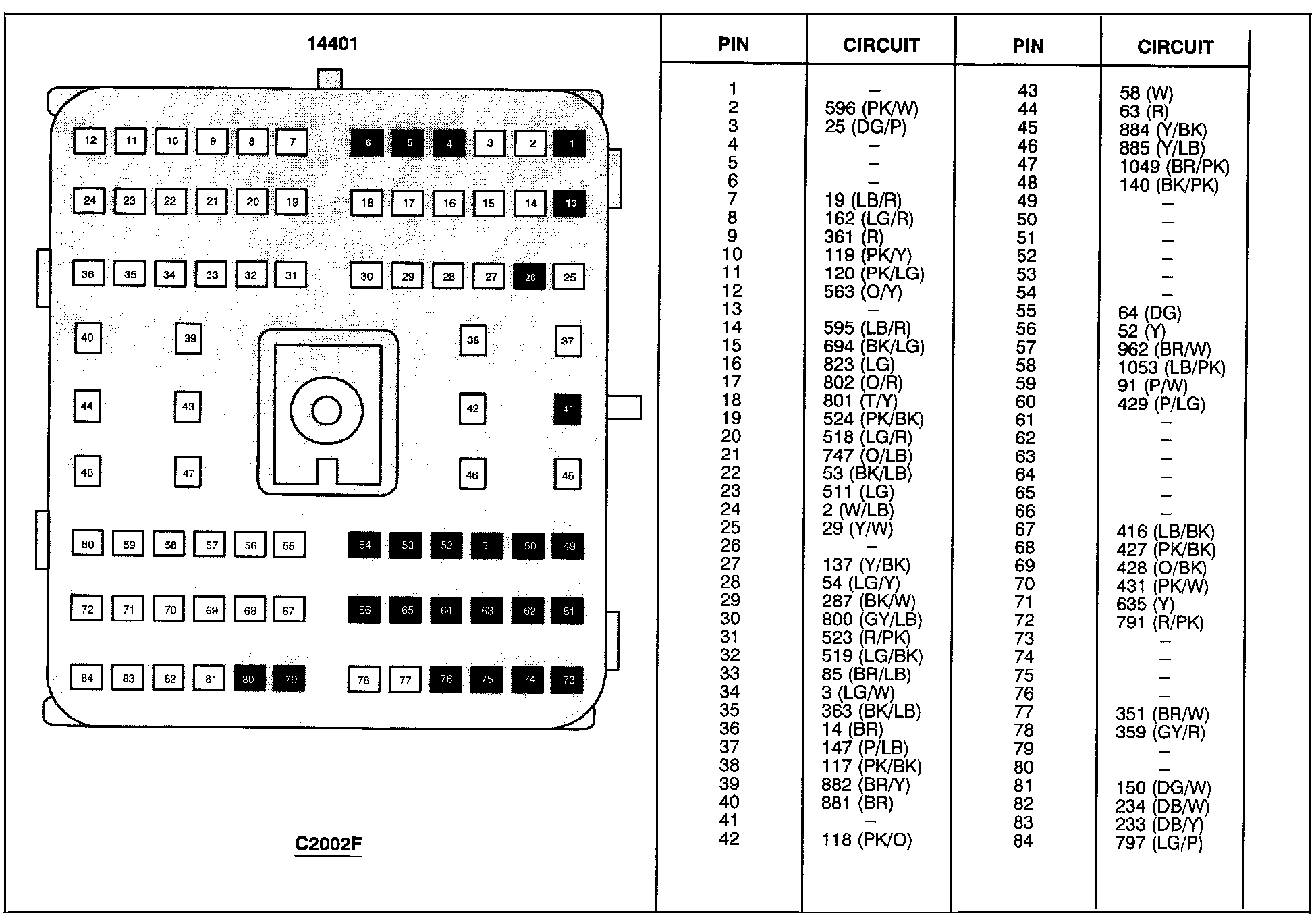

In-Line Connector Faces (C2002F):
